ASRock A320M-HDV R4.0 AMD Motherboard
Save 5%
Please sign in so that we can notify you about a reply

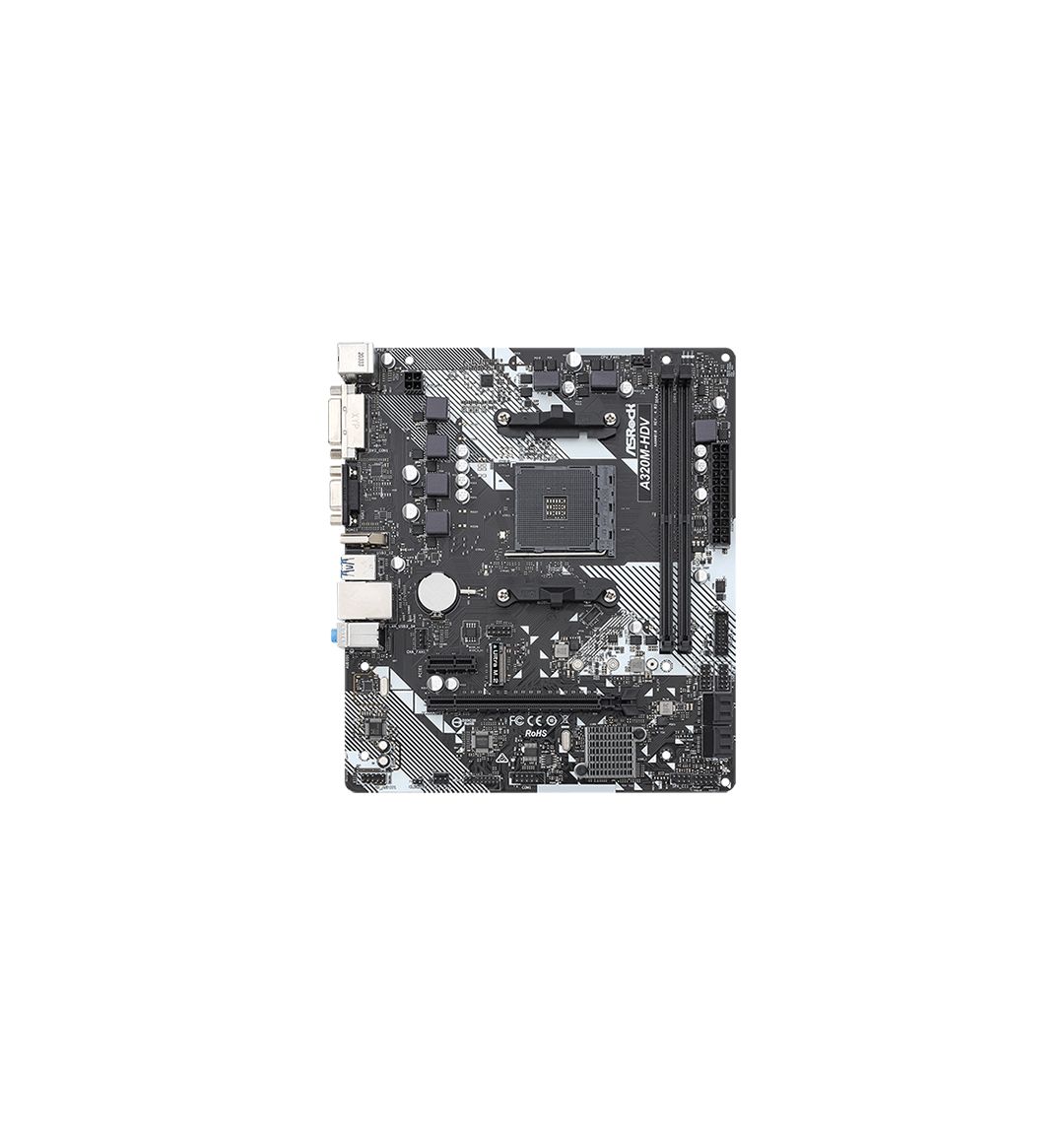

ASRock A320M-HDV R4.0 Motherboard
SPECIFICATION
| Supported CPU | - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge, and Pinnacle Ridge) - Digi Power design - 7 Power Phase design - Supports CPU up to 65W |
| Chipset | - AMD Promontory A320 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake-up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment |
| Form Factor | - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm - Solid Capacitor design |
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD 7th A-Series APUs / Raven Ridge CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) - 1 x PCI Express 2.0 x1 Slot |
| M.2 Socket | - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge, and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) - 1 x Screw for M.2 Socket |
| Type | - Dual Channel DDR4 Memory Technology |
| Slots | - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots |
| Supported Memory | - AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory - AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory |
| Maximum Memory | - Max. the capacity of system memory: 32GB |
| Graphics | |
| Max Shared Memory | - Shared memory default 2GB. Max Shared memory supports up to 16GB. - The Max shared memory of 16GB requires 32GB system memory installed. |
| HDMI | - 1 x HDMI Port - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) |
| D-Sub (s) | - 1 x D-Sub Port - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz |
| DVI-D (s) | - 1 x DVI-D Port - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Po |
| USB (s) | 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, and RAID 10), NCQ, AHCI, and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge, and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) - Supports ASRock U.2 Kit - Supports NVMe SSD as boot disks |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps |

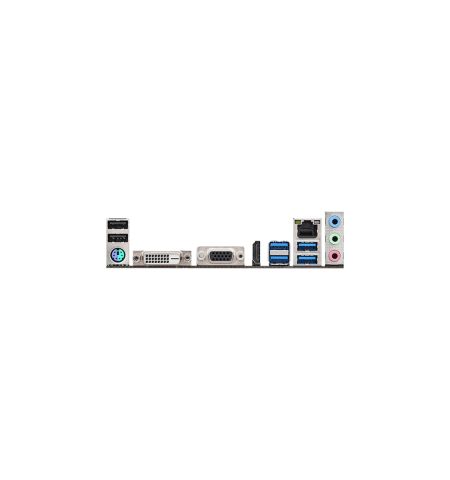

| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)** - 1 x 24-pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
Warranty: 03 Years
Nexus will be your first choice If you want to buy ASRock A320M-HDV R4.0 Motherboard in Bangladesh, Because we sell only ASRock authorized original Motherboard. So you are at the right place to buy the right ASRock Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASRock A320M-HDV R4.0 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of the ASRock A320M-HDV R4.0 Motherboard? and where you can get a ASRock Motherboard at the lowest price in BD? Yes, it is Nexus. ASRock A320M-HDV R4.0 Motherboard is now available at Nexus, So Don’t Think more to buy ASRock A320M-HDV R4.0 Motherboard.
Brand:
ASRock
