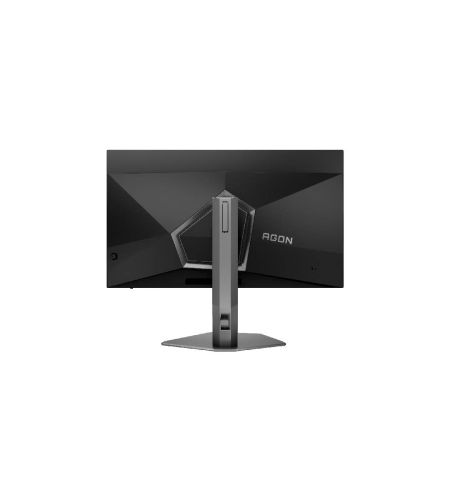

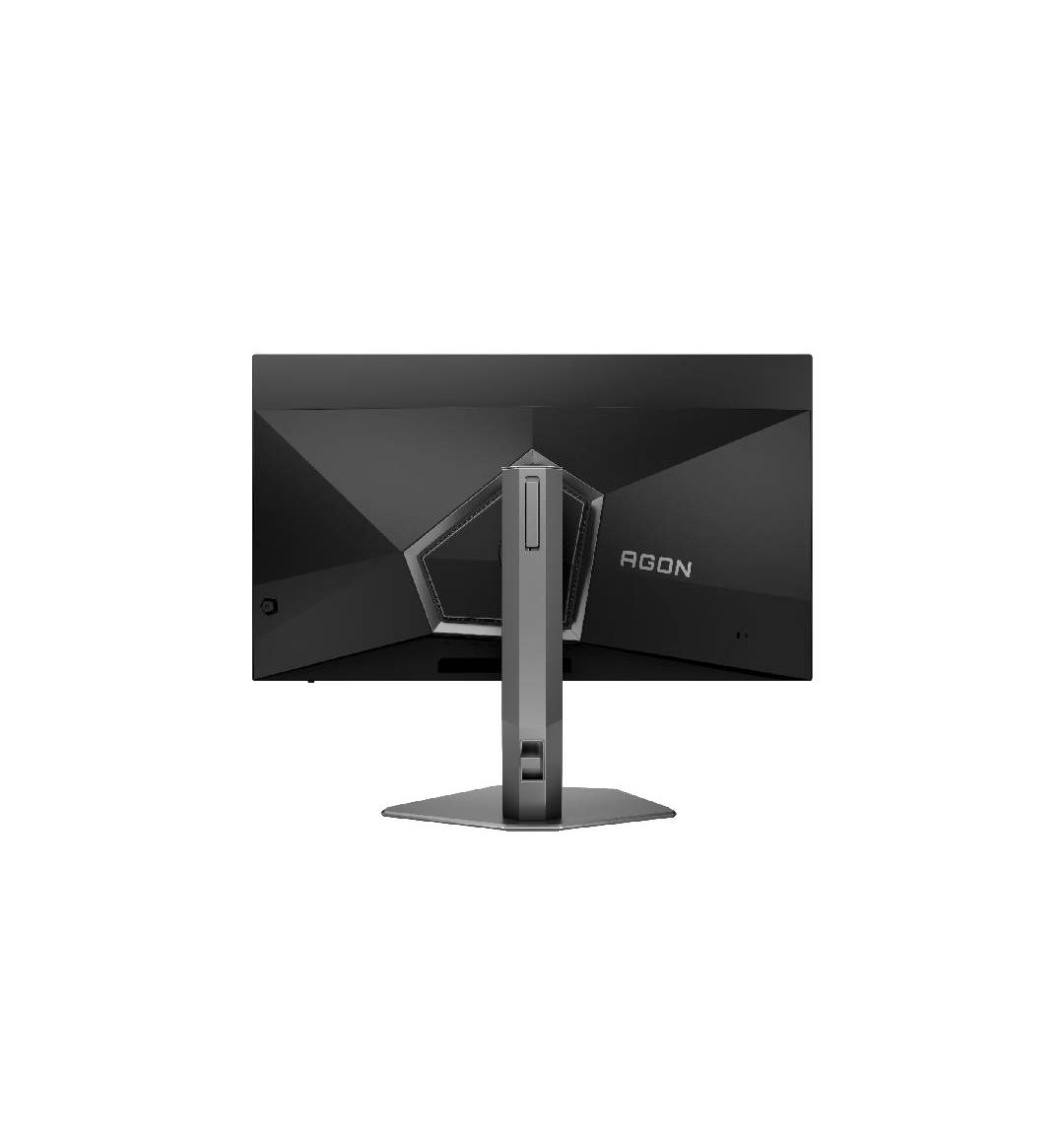

AOC AGON PRO AG326UD 31.5" 4K UHD 165Hz 0.03ms QD-OLED Gaming Monitor
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | AOC AGON PRO AG326UD 31.5" 4K UHD 165Hz 0.03ms QD-OLED Esports Gaming Monitor |
| Model | AG326UD |
| Brand / Manufacturer | AOC |
| Product Series | AGON PRO Flagship Professional Esports Lineup |
| Product Category | Flagship Ultra-High-Definition QD-OLED Gaming & Production Desktop Monitor |
| Screen Size (Diagonal) | 31.5 Inches (80.01 cm Viewable) |
| Panel Technology | Quantum Dot OLED (QD-OLED) Panel (Gen 3 QD-OLED) |
| Pixel Dimming & Contrast | Per-Pixel Self-Emissive Lighting (Infinite Contrast with Zero Backlight Bleed) |
| Active Display Area | 699.48 mm (H) × 394.73 mm (V) |
| Bezel Design | 3-Sided Borderless / Ultra-Narrow Frameless AGON PRO Aesthetic |
| Native Display Resolution | 4K UHD (3840 × 2160 Pixels) |
| Aspect Ratio | 16:9 Widescreen Standard |
| Pixel Pitch & Density | 0.1814 mm × 0.1814 mm (Approx. 139.87 PPI) |
| Peak Brightness | 250 Nits (cd/m²) Typical (SDR 100% APL) / Up to 1000 Nits Peak (HDR 3% APL) |
| Native Contrast Ratio | 1,500,000:1 Static Contrast Ratio (True Infinite Contrast) |
| Dynamic Contrast Ratio (DCR) | 80,000,000:1 |
| Maximum Refresh Rate | 165 Hz Native High-Speed (via DisplayPort 1.4 DSC & HDMI 2.1) |
| Response Time (GtG) | Blazing 0.03 ms Gray-to-Gray (GtG) Pixel Response Time |
| Motion Clarity Rating | VESA ClearMR 9000+ Certified |
| Viewing Angles | 178° Horizontal / 178° Vertical Ultra-Wide Viewing Angles |
| Display Color Depth | True 10-Bit Color (1.07 Billion Colors) |
| Color Gamut Coverage | 100% sRGB, 99% DCI-P3, 97.5% Adobe RGB (Factory Calibrated Delta E < 2) |
| High Dynamic Range (HDR) | VESA DisplayHDR True Black 400 Certified & HDR10 Support |
| Display Surface Finish | Anti-Reflection Semi-Gloss Coating with 3H Hard Treatment |
| Variable Refresh Rate Tech | Adaptive-Sync (NVIDIA G-SYNC Compatible & AMD FreeSync Premium Pro) |
| OLED Protection Features | AOC OLED Care Suite (Pixel Orbiting, Static Screen Dimming, Automatic Pixel Cleaning) |
| Esports Gaming Enhancements | Low Input Lag Mode, Dial Point (Crosshair Overlay), Game Color, Shadow Control, Frame Counter |
| Multitasking Productivity | Picture-in-Picture (PiP) and Picture-by-Picture (PbP) Multi-Source Modes |
| Lighting Effects | AGON Light FX Customizable RGB Ambient Lighting System |
| Integrated Audio Speakers | Built-in Dual Stereo Speakers (2 × 8W = 16W Total Acoustic Output) with DTS Sound |
| DisplayPort Inputs | 1 × DisplayPort 1.4 Input (HBR3 with DSC, Supports 3840 × 2160 @ 165Hz) |
| Digital Video Inputs | 2 × HDMI 2.1 Ports (Supports Full 4K @ 165Hz for PC & 4K @ 120Hz VRR for Consoles) |
| USB Hub Connectivity | 1 × USB 3.2 Gen 1 (Type-B Upstream) + 2 × USB 3.2 Gen 1 (Type-A Downstream with Fast Charging) |
| Audio Interface | 1 × 3.5 mm Audio Out Line-Out Port (Headphone Jack) |
| Stand Ergonomics (Height Adjustment) | Up to 130 mm Height Lift Adjustment |
| Stand Ergonomics (Pivot) | Bi-Directional 90° Pivot (Landscape to Portrait Orientation) |
| Stand Ergonomics (Swivel) | Left & Right Swivel (-20° to +20°) |
| Stand Ergonomics (Tilt) | Forward & Backward Tilt (-5° to +21°) |
| Stand Base & Cable Management | Compact Metal Esports Stand Base with Integrated Cable Routing Aperture |
| VESA Wall Mount Compatibility | 100 mm × 100 mm Standard VESA Mount Interface |
| Physical Security | Integrated Kensington Security Lock Slot |
| Power Supply Type | Internal Integrated AC Power Supply Module |
| Voltage Requirement | 100 – 240 VAC, 50 / 60 Hz Universal AC Input |
| Power Consumption | Typical: 65W – 75W / Standby & Sleep: < 0.5W |
| Environmental Certifications | RoHS Compliant, WEEE, REACH, CE, FCC, ISO 9241-307 |
| Dimensions (with Stand) | Approx. 718.3 mm × 462.5 – 592.5 mm × 274.0 mm (W × H × D) |
| Product Net Weight | Approx. 9.10 kg – 9.80 kg (with Full Stand Assembly) |
| Software Support | AOC G-Menu Desktop On-Screen Display Control & Light FX Utility |
| Package Contents | 1 × AOC AGON PRO AG326UD Monitor Panel 1 × Full Ergonomic Stand Base & Stem Assembly 1 × DisplayPort 1.4 Cable 1 × HDMI 2.1 Cable 1 × USB Type-A to Type-B Upstream Cable 1 × AC Power Cable 1 × Factory Color Calibration Report 1 × Quick Setup Guide & Safety Documentation |
| Warranty Policy | 3 Years AOC Brand Warranty (Includes Official OLED Burn-in Coverage) |
Product Description
The AOC AGON PRO AG326UD is a 31.5-inch flagship 4K UHD QD-OLED gaming monitor engineered for competitive esports players, AAA cinematic gamers, simulation pilots, and content creators demanding pixel density, fast response times, and deep contrast. Built within AOC's top-tier AGON PRO lineup, the display combines an angular aesthetic with rear-chassis AGON Light FX RGB ambient lighting that synchronizes with gameplay and audio cues. The 3-sided frameless bezel profile delivers an edge-to-edge viewing canvas, while the metal-reinforced desktop stand provides full ergonomic adjustability—including 130 mm of height elevation, bi-directional 90-degree portrait rotation, swivel, tilt, and integrated cable routing.
Visual fidelity is driven by a 31.5-inch Quantum Dot OLED (QD-OLED) panel featuring a native 4K UHD resolution of 3840 × 2160 pixels at a pixel density of approximately 140 PPI. By pairing Quantum Dot color vibrancy with self-emissive organic pixel architecture, the monitor achieves an authentic 1,500,000:1 static contrast ratio with pure inky blacks and zero haloing or backlight bleed. An ultra-responsive 0.03ms GtG pixel transition time combined with a 165Hz refresh rate practically eliminates motion trailing and ghosting during rapid camera maneuvers. Certified with VESA DisplayHDR True Black 400 and capable of hitting up to 1000 nits peak luminance in HDR modes, highlights pop against true black backgrounds. Color reproduction is backed by true 10-bit color depth (1.07 billion colors), 99% DCI-P3 color gamut coverage, and factory-calibrated Delta E < 2 accuracy. Tear-free frame delivery is governed by Adaptive-Sync, offering seamless compatibility with NVIDIA G-SYNC and AMD FreeSync Premium Pro systems.
Connectivity is anchored by high-speed video and peripheral interfaces, including two HDMI 2.1 ports capable of uncompressed 4K at 165Hz for PC and 4K 120Hz with Variable Refresh Rate (VRR) for next-generation consoles, alongside a DisplayPort 1.4 input with Display Stream Compression (DSC) and a USB 3.2 Gen 1 downstream hub. Integrated dual 8W stereo speakers enhanced with DTS Sound deliver substantial onboard acoustic output without cluttering the desktop with external speakers. Panel longevity is protected by the comprehensive AOC OLED Care suite, featuring automated pixel refresh cycles, intelligent logo detection, and subtle pixel shifting to prevent burn-in. Complete with specialized gaming assists (Dial Point crosshairs, Low Input Lag mode, Shadow Control), Picture-by-Picture/Picture-in-Picture productivity modes, and standard 100 × 100 mm VESA wall-mount compatibility, the AOC AGON PRO AG326UD delivers a complete flagship 4K QD-OLED display backed by AOC's 3-year warranty.
