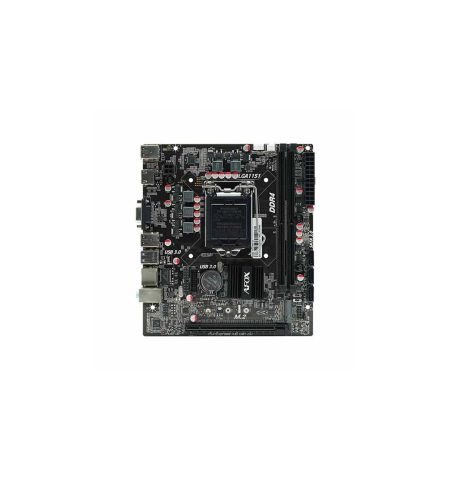

AFOX IH110D4-MA5-V2 Motherboard
Save 6%
Please sign in so that we can notify you about a reply
Specification
| Platform | INTEL Socket 1151 |
| Model Name | IH110D4-MA5-V2 |
| Chipset | Intel® H110 |
| CPU Supports | Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors |
| Supports Intel 6th, 7th, 8th, and 9th Generation (CPU up to 95 watts) | |
| FSB | 2133MHz |
| Memory | Dual Channel DDR4 2133MHz |
| Dimm | 2 x Memory Slots (Max. capacity of system memory 32GB) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| PCI/PCI-E Slots | 1 x PCI Express x16 3.0 slot |
| SATA | 3 x SATA3 |
| 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) | |
| IDE | N/A |
| Audio | Realtek 662 on board, Supports 6-channel audio-out |
| LAN | Realtek RTL8111 Gigabit Ethernet on board |
| Wake-On-LAN | |
| Back Panel I/Os | 1 x HDMI Port |
| 1 x D-Sub (VGA) Port | |
| 2 x USB 3.0 Ports | |
| 4 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port with LED | |
| 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) | |
| On-Board Pinheaders/Connectors | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) |
| 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) | |
| 1 x Front Panel Audio pinheader | |
| 1 x LPC DEBUG | |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (17*19cm) |
| Mounting | 4 mounting holes |
| Accessories | 1 x SATA II cable |
| 1 x I/O Rear Panel | |
| 1 x User Manual | |
| 1 x Driver CD |
