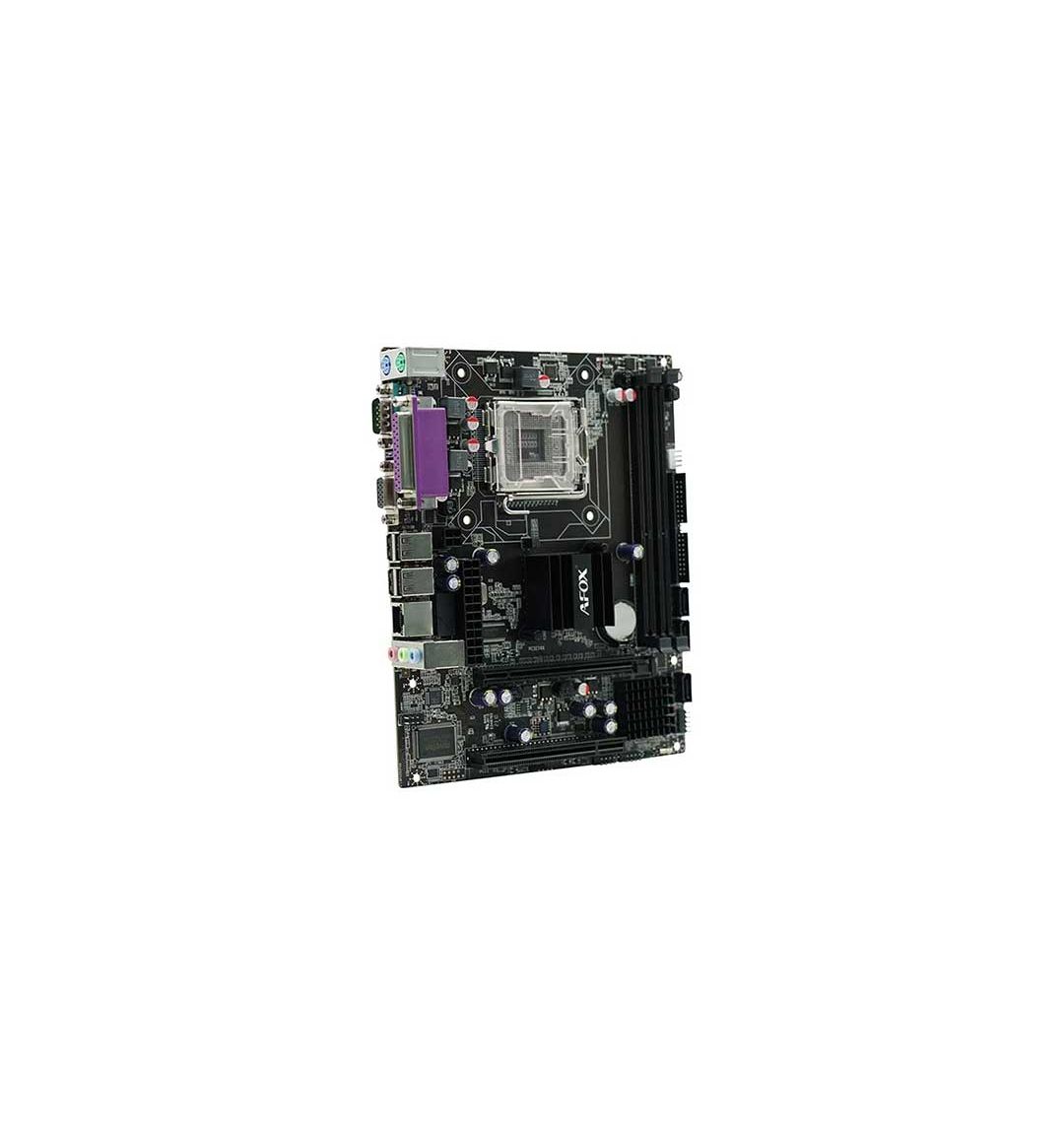

AFOX IG41-MA7 DDR3 MICRO-ATX INTEL MOTHERBOARD
Save 5%
Please sign in so that we can notify you about a reply
Specification
| Processor | |
| Supported CPU | Intel Core 2 Duo / Core Duo / Pentium D / Pentium 4 / Celeron D Processors |
| Mainboard | |
| Chipset | Intel G41 Express Chipset + ICH7 |
| Memory | |
| Memory | Dual Channel DDR3 1066 / 1333 / 1600MHz
2 x Memory Slots (Max. capacity of system memory 16GB**) Actual capacity depends on different CPU installation |
| Storage | |
| Supported Storage | 4 x SATA2 |
| Audio & Microphone | |
| Audio | Realtek 662 on board, Supports 6-channel audio-out |
| Networking & Connectivity | |
| LAN | Realtek RTL8105 10/100Mbps Ethernet on board |
| Technical Info | |
| BIOS | Supports BIOS update |
| Ports | |
| Slots | 1 x PCI Express x16 slot |
| Internal I/O Ports | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x Front Panel Audio pinheader |
| External I/O Ports | 1 x D-Sub (VGA) 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
| USB | 6 x USB 2.0 Ports |
| Physical Specification | |
| Form Factor | Micro-ATX (17*19cm) |
| Warranty Information | |
| Warranty | 3 Years |
