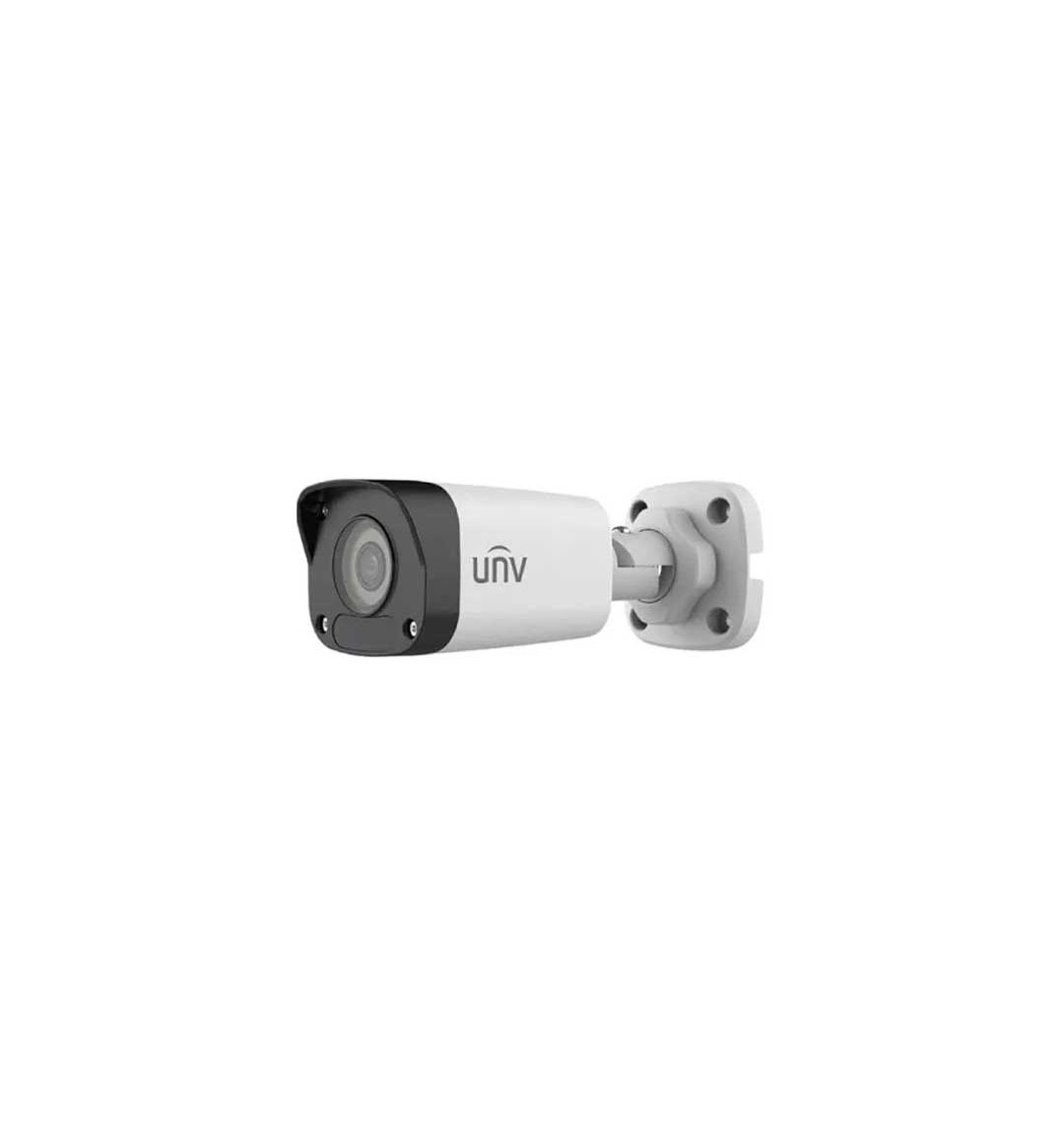

UNV IPC2124LB-CL-P 4.0MP/4mm/IR40m/DC12V BULLET IP CAMERA

Specification

Camera
Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
Min. Illumination: Colour:0.01 lux (F2.1, AGC ON), 0 lux with IR
DAy/Night: IR -cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°
WDR: DWDR
S/N: >55dB

Lens:
Lens type: 4.0mm@F2.1
Iris: Fixed
Field of View (H): 79°
Field of View (V): 42.3°
Field of View (D): 85.1°

DORI
DORI Distance:
Lens (mm): 4.0
Detect (m): 90.0
Observe (m): 36.0
Recognize (m): 18.0
Identify (m): 9.0

Illuminator:
IR Range: Up to 40m IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: H.265, H.264
Frame Rate
Main Stream: 4MP (2560*1440), Max 25fps; 3MP(2304*1296), 2MP(1920*1080),Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,2CIF(704*288),Max 30fps;CIF(352*288),Max 30fps
Video Bit Rate: 128 Kbps~6144Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas per scene
ROI: Up to 8 areas
Video stream: Dual streams

Image:
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Flip Vertical/Flip Horizontal/180°
HLC: Support
BLC: Support
Defog: Digital Defog

Events:
Basic Detection: Motion detection
General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP,Qos, SSL/TLS
Compatible Integration: ONVIF (Profile S, Profile T), API,SDK
User/Host: Up to 32 users. 3 user levels: administrator/operator/common user

Security: Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client:
EZStation
EZLive
EZView
Web Browser:
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Audio I/O: N/A
Alarm I/0: N/A
Serial Port: N/A
Built-in Mic: N/A
Built-in Speaker: N/A
WIFI: N/A
Network: 1* RJ45 10M/100M Base-TX Ethernet
Video Output: N/A
