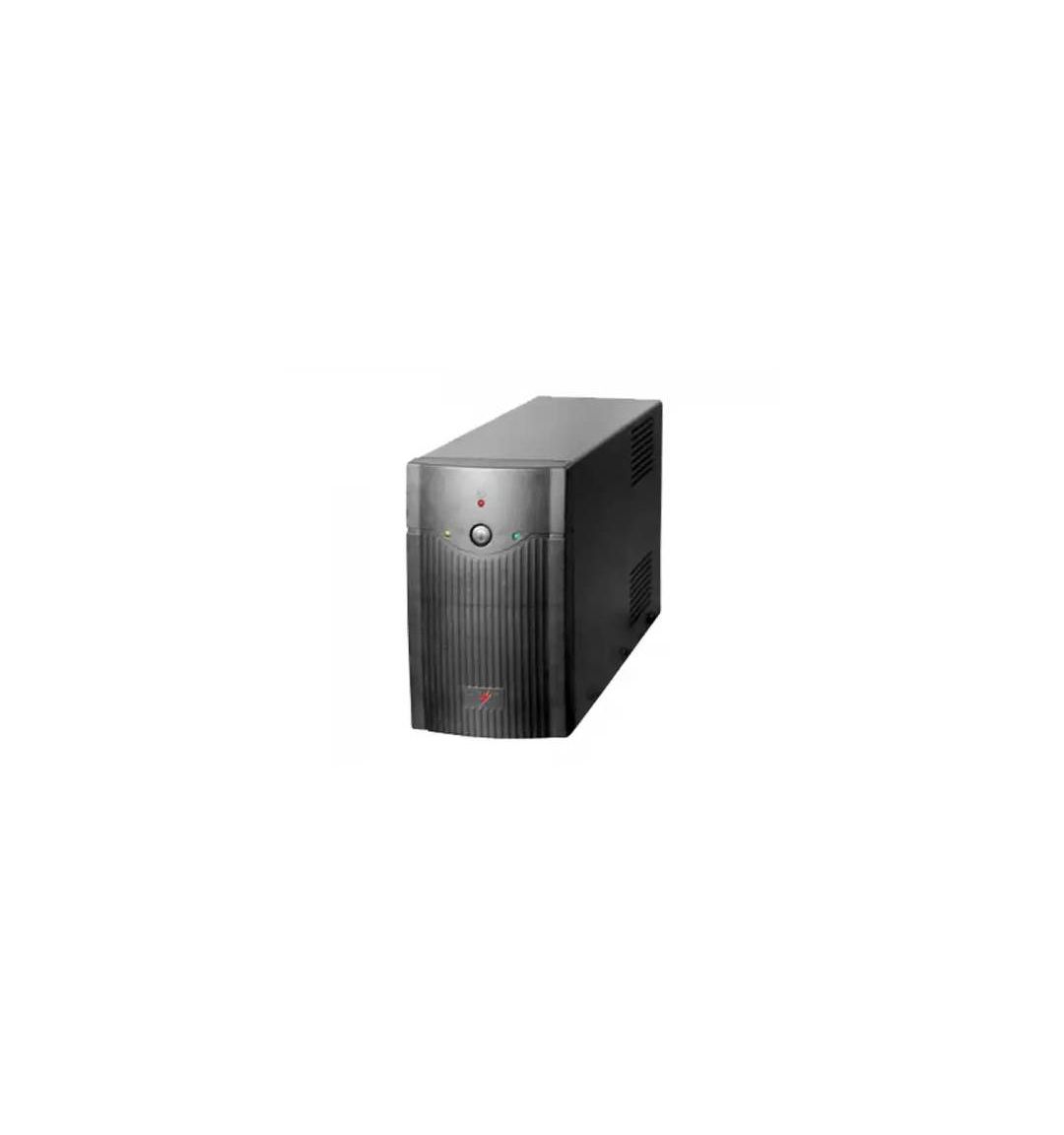

Power Pac 850VA Offline UPS
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | Power Pac 850VA Offline UPS |
| UPS Type / Technology | Offline UPS / Line Interactive |
| Volt-Ampere (VA) Capacity | 850 VA |
| Load Capacity (Wattage) | 590 Watts |
| Input Voltage Range | 160V – 270V AC |
| Output Voltage (Battery) | 220V – 230V AC ±10> |
| Frequency | 50/60Hz ±5> |
| Waveform Type | Simulated Sine Wave |
| Transfer Time | 2 – 4 milliseconds (Typical) |
| Battery Configuration | 1 pc x 12V, 9Ah Sealed Lead Acid |
| Typical Recharge Time | 6 Hours (to 90% capacity) |
| Backup Time Range | 15 – 25 Minutes (Tested with 1 standard PC & 1 Monitor) |
| Built-in Stabilizer (AVR) | Yes |
| Safety Certifications | International Safety Practices compliant protection |
| Built-in Protection | Lighting, Spike, Surge, Over-Voltage, Under-Voltage, Short-Circuit, Overload, Deep Discharge |
| Output Connections | 2 x Backside Power Ports |
| LED Status Indicators | Green (AC Normal), Amber (Battery Charging), Red (Backup Mode) |
| Audible Noise Level | Less than 40 dBA |
| Chassis Material / Color | High-grade Impact Resistant Plastic / Matte Black |
| Dimensions (W x H x D) | 88.28 x 309.8 x 143.7 mm |
| Net Weight | 5.7 kg |
| Warranty Coverage | 1 Year Limited Warranty |
Product Description
Housed in a durable, space-saving matte black plastic chassis, it delivers a robust 590W load capacity capable of keeping a standard PC setup powered through sudden blackouts. Equipped with a built-in Automatic Voltage Regulator (AVR), it actively smooths out unstable electrical sags and surges without prematurely draining its internal 9Ah battery.
Designed for effortless daily defense, the unit features an ultra-fast 2–4ms transfer rate that prevents system resets during power fluctuations. Comprehensive hardware safeguards shield connected equipment against spikes, deep discharges, and short circuits, while simple front-facing LED indicators keep you aware of current power and charging states.
Brand:
Power Pac
UPS
Volt Ampare (VA):
850V
Type.:
Offline UPS
Load Capacity:
900W
Led Display:
Yes
Output Connection:
2 Port
Warranty.:
2 Year
