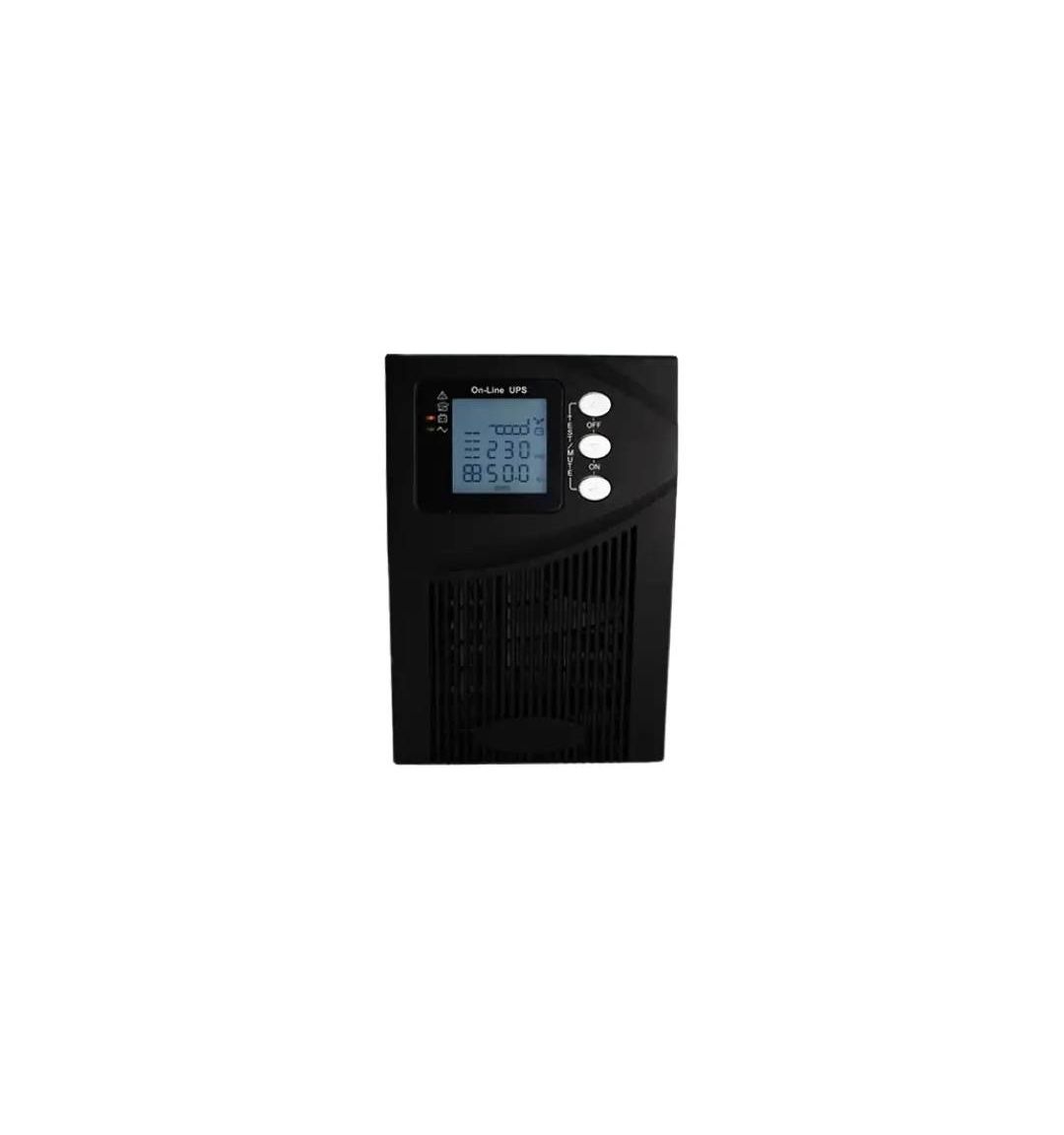

Power Pac 2KVA Online UPS
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | Power Pac 2KVA Online UPS |
| UPS Type / Topology | Online Double-Conversion |
| Volt-Ampere (VA) Capacity | 2000 VA (2 KVA) |
| Load Capacity (Wattage) | 1400 Watts (0.7 Power Factor) |
| Input Voltage Range | 160V – 270V AC |
| Output Voltage Range | 220V AC ±1> |
| Frequency (Battery Mode) | 50 Hz |
| Waveform Type | Pure Sine Wave |
| Transfer Time | 0 milliseconds (Zero Transfer Time) |
| Battery Configuration | 3 pcs x 12V, 7Ah Sealed Lead Acid |
| Typical Recharge Time | 5 – 6 Hours (to 90% capacity) |
| Backup Time Range | ~15 Minutes standard backup (load-dependent) |
| Generator Compatibility | Yes |
| Built-in Protection | Overload, Short-Circuit, Over-Voltage, Under-Voltage, Lightning/Surge, Deep Discharge |
| Output Connections | Multi-socket configuration |
| System Phase | Single-Phase System |
| Chassis Material / Color | Heavy-duty Metal Body / Matte Black |
| Warranty Coverage | 1 Year Warranty |
Product Description
Utilizing a true double-conversion architecture, it continuously shifts incoming AC power to DC and back to a tightly regulated 220V AC stream. Engineered for zero transfer time (0ms), this system guarantees zero drop in power during a blackout to prevent server resets or data loss. It delivers a pure sine wave output driven by three internal 12V/7Ah batteries, offering a stable 1400W load capacity alongside full generator support to ensure operational continuity over long outages.
Brand:
Power Pac
UPS
Volt Ampare (VA):
2000V
Type.:
Online UPS
Load Capacity:
1400W
Led Display:
Yes
Output Connection:
4 Port
Warranty.:
2 Year
