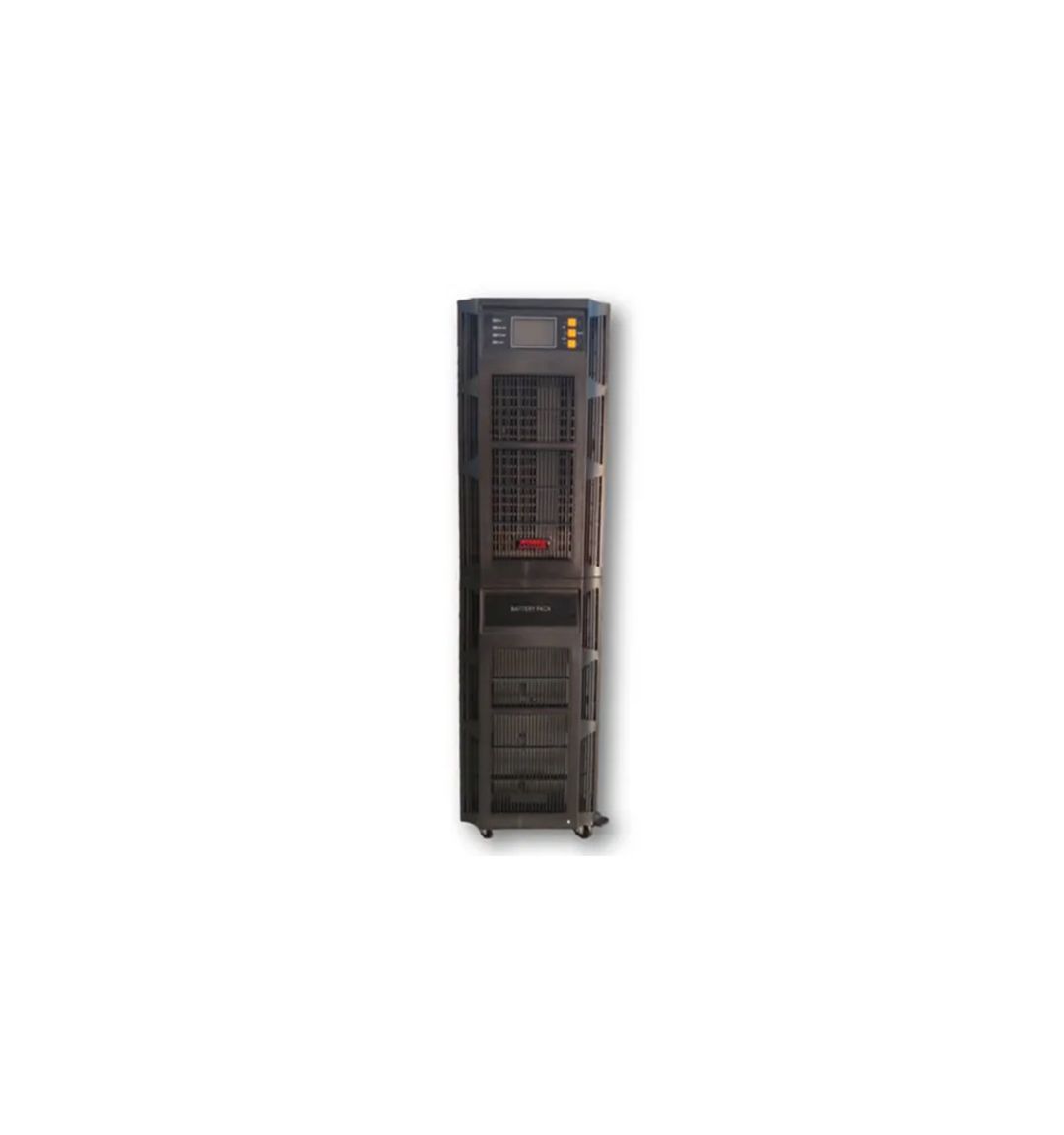

Power Guard 6KVA 6000VA 6000W Online UPS
Please sign in so that we can notify you about a reply
Specification
| Main Feature | |
| Capacity | 6000VA |
| Load Capacity | 6000W / 5400W / 4800W |
| Input Voltage | Nominal Voltage: 200/208/220/230/240VAC Frequency Range: 46Hz-54Hz / 56Hz-64Hz Phase: Single phase with ground Power Factor: R0.99 @ nominal voltage (100% load) |
| Output Voltage | AC Voltage Regulation (Batt. Mode): 2>#br###Current Crest Ratio: 3:01 Frequency Range (Batt. Mode): 50 Hz 0.2 Hz or 60 Hz 0.2 Hz Frequency Range (Synchronized Range): 46 ~ 54 Hz or 56 ~ 64 Hz Harmonic Distortion: Q4 % THD (Linear Load) Q 6 % THD(For Full RCD Load,PF=0.8) Output Voltage: 110/115/120/127 VAC or 208/220/230/240 VAC Transfer Time: Line mode to Battery mode Zero Waveform (Batt. Mode): Pure Sine Wave |
| Battery | Battery Type: 12 V / 8.2 AH Numbers: 16 Typical Recharge Time: 6 hours recovery to 90% capacity Charging Current (max.): 1.0A/2.0A/4.0 A/6.0A DC Voltage: 192 VDC |
| Alarm | Battery Mode: Sounding every 4 seconds Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continuously sounding |
| Indications | LED Panel: UPS status, Load level, Battery level, Input/Output voltage, and Fault conditions |
| Others | Optional SNMP: Power management from SNMP manager and web browser |
| Physical Specification | |
| Dimension | 260*642 *582mm |
| Manufacture Warranty | |
| Warranty | 1-Year Battery Warranty |
