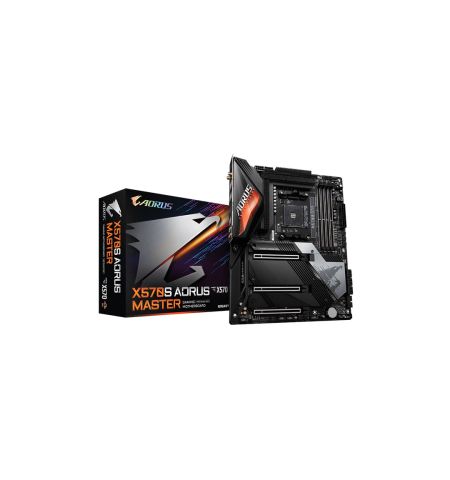

Gigabyte X570S AORUS MASTER AMD ATX Motherboard
SPECIFICATION
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors |
| Chipset | AMD X570 |
| Memory | Number of Memory Slots 4×288pin Memory Standard DDR4 5400(OC)/ 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 4000 G-Series processors) DDR4 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 Series processors) DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 5000 Series processors) DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 G-Series Processors / AMD Ryzen 2000 Series Processors / AMD Ryzen 2000 G-Series Processors) Maximum Memory Supported 128GB Channel Supported Dual Channel ECC Supported Yes Buffer Supported Un-buffered |
| Graphics | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only. |
| Slots | 3 x PCI Express 4.0 x16* * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| LAN & Wireless Communication module | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Audio | Realtek® ALC1220-VB audio CODEC * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| USB Port | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports, available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS jumper Voltage Measurement Points |
| External I/O Ports | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 Years |
Nexus will be your first choice If you want to buy GIGABYTE X570S AORUS MASTER Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte X570S AORUS MASTER Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte X570S AORUS MASTER Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte X570S AORUS MASTER Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte X570S AORUS MASTER Motherboard.
