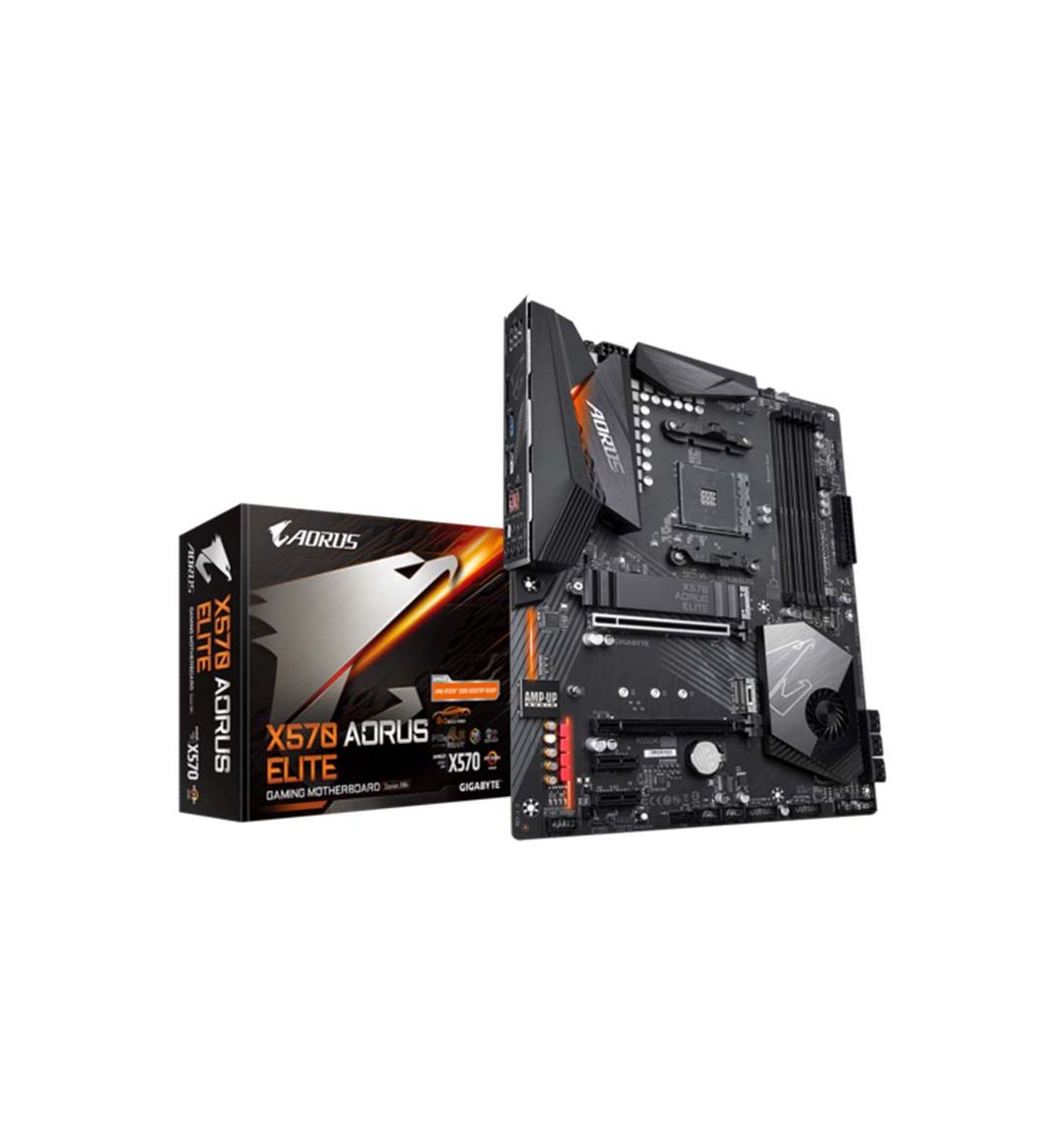

Gigabyte X570 AORUS ELITE AMD Motherboard
Please sign in so that we can notify you about a reply
Gigabyte X570 AORUS ELITE AMD Motherboard
MAIN FEATURES
- Model: Gigabyte X570 AORUS ELITE
- Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Supports Addressable LED & RGB LED Strips
- Advanced Heatsink Design
SPECIFICATION
| Supported CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| Chipset | AMD X570 |
| Memory | 3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Maximum shared memory of 16 GB |
| Slots | Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 |
| Supported Storage | Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| LAN | Intel GbE LAN chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC1200 codec ; High Definition Audio ; 2/4/5.1-channel ; Support for S/PDIF Out ; |
| USB Port | Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| External I/O Ports | Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte X570 AORUS ELITE in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte X570 AORUS ELITE Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte X570 AORUS ELITE Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte X570 AORUS ELITE Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte X570 AORUS ELITE Motherboard.
Brand:
Gigabyte
