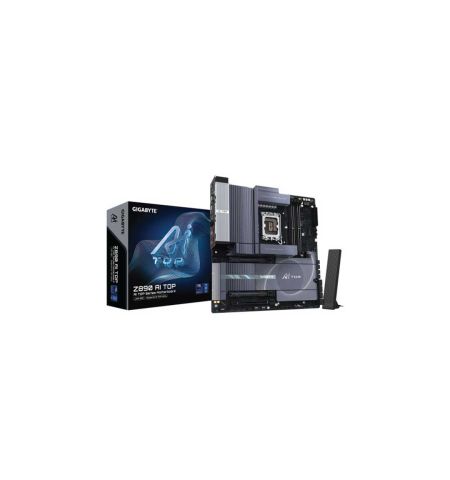

GIGABYTE INTEL Z890 AI TOP LGA1851 Motherboard
Save 8%
Please sign in so that we can notify you about a reply
Specification
| CPU Support | - Socket: LGA1851 (Intel® Core™ Ultra Processors) - L3 Cache: Varies with CPU - Chipset: Intel® Z890 Express Chipset |
| Memory Support | - DDR5 Speeds: Up to 9500 (O.C), with multiple overclocking options - Capacity: 4 x DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) - Dual-Channel Architecture - ECC Support: Non-ECC mode - XMP Support |
| Graphics | - Integrated Graphics: Intel® HD Graphics + Thunderbolt™ 5 - Display Outputs: - 2 x Thunderbolt™ 5 (USB4® Type-C®), up to 7680×4320@60 Hz - 1 x HDMI, up to 4096×2160@60 Hz - Multi-Display Support: Triple displays |
| Networking | - Wired LAN: 2 x Marvell® AQtion AQC113C 10GbE ports - Wireless: Intel® Wi-Fi 7 BE200 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.4, 2.4/5/6 GHz bands |
| Expansion Slots | - PCIe 5.0 x16: 1 x x16, 1 x x8 (shared bandwidth) - PCIe 4.0 x4: 1 x x4 (shares bandwidth with M.2 slot) |
| Storage | - M.2 Slots: 4 x M.2 (PCIe 5.0 x4/x2 and PCIe 4.0 x4/x2) - SATA Ports: 8 x SATA 6Gb/s - RAID Support: RAID 0, 1, 5, 10 for NVMe and SATA devices |
| USB Connectivity | - Thunderbolt™ 5: 2 x ports (80 Gbps with Thunderbolt, 40 Gbps with USB4) - USB4®: 1 x onboard port - USB 3.2 Gen 2x2: 2 x Type-C® - USB 3.2 Gen 2: 6 x Type-A - USB 3.2 Gen 1: 4 x ports - USB 2.0/1.1: 4 x ports |
| Audio | - Rear Panel: ESS ES9260 CODEC (2-channel HD audio) - Front Panel: Realtek® ALC897 CODEC |
| Cooling and Power | - Fan Headers: 1 x CPU fan, 1 x CPU fan/pump, 4 x system fan, 2 x system fan/pump - Power Connectors: 1 x 24-pin ATX, 2 x 8-pin 12V |
| Internal Connectors | - RGB Headers: 3 x addressable RGB Gen2, 1 x RGB LED strip - Other Headers: Front panel, audio, Thunderbolt™ 4, USB, TPM, etc. |

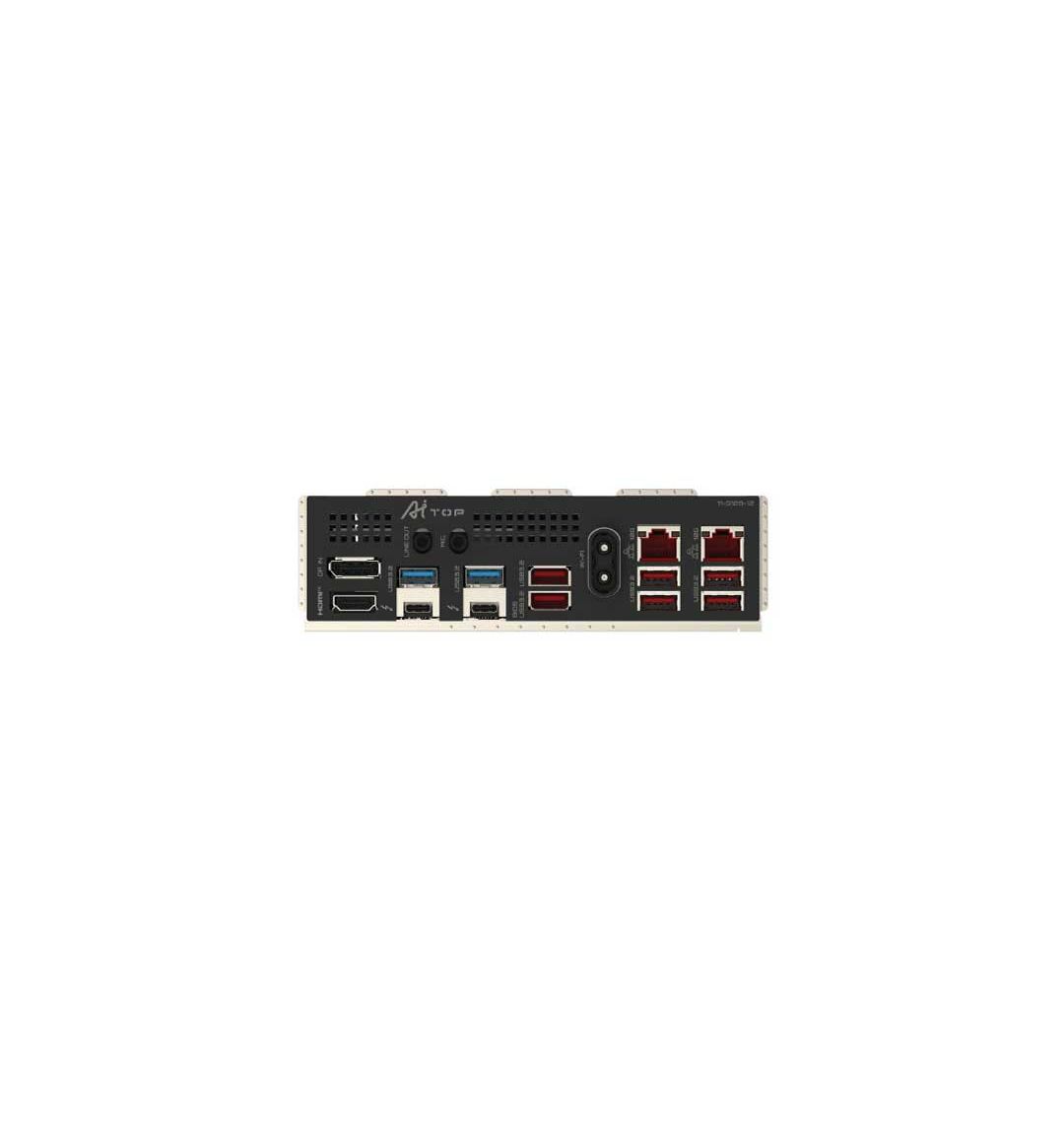

| Back Panel Connectors | - DisplayPort In, HDMI, 2 x Thunderbolt™ 5, 2 x audio jacks, 6 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 2 x RJ-45 ports, 2 x antenna connectors |
| BIOS and Software | - BIOS: 256 Mbit AMI UEFI BIOS (Q-Flash, Smart Backup) - Software: GIGABYTE Control Center (GCC), Norton® Internet Security, LAN bandwidth management tools |
| Form Factor | - E-ATX: 30.5cm x 28.5cm |
