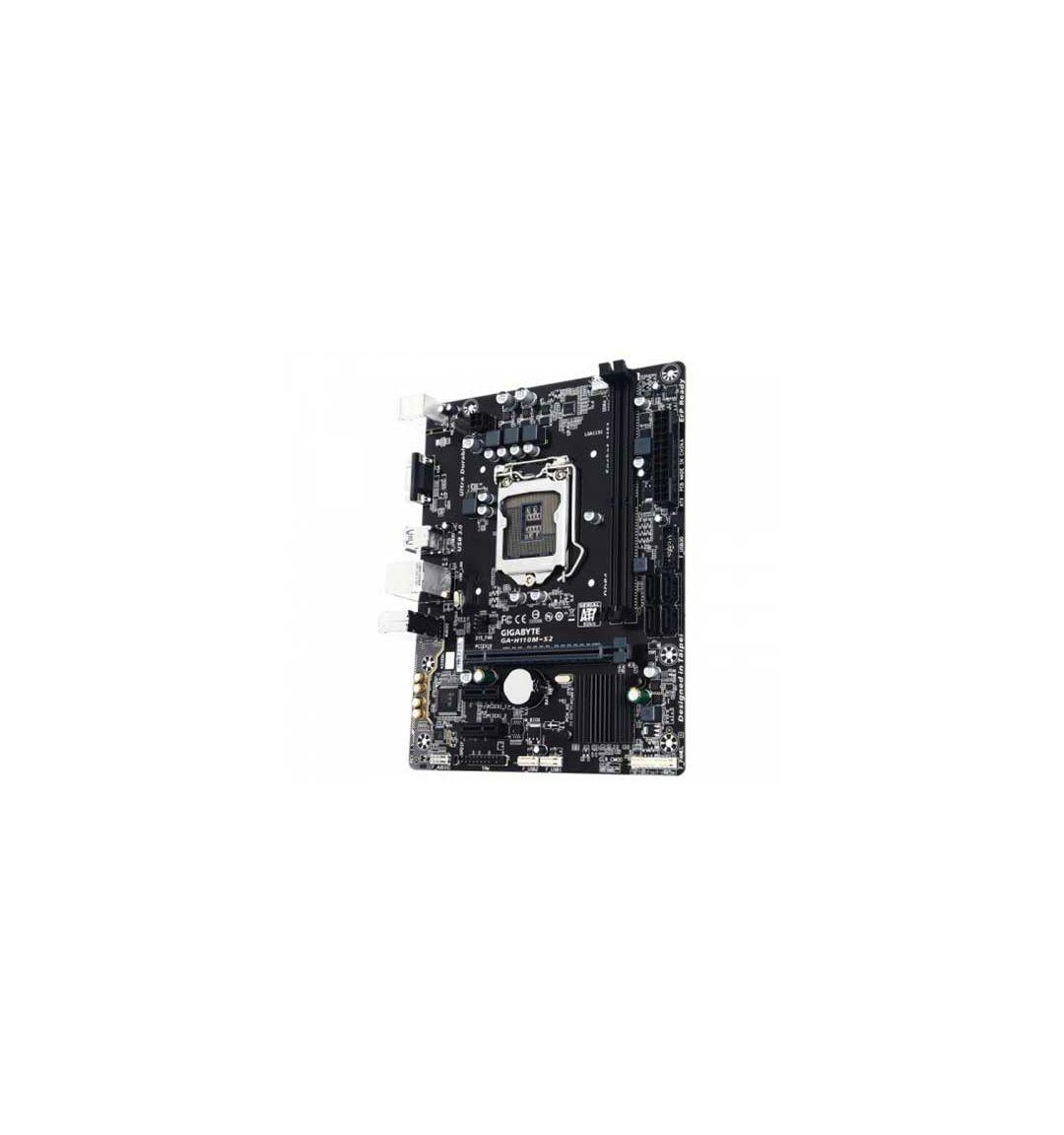

Gigabyte GA-H110M-S2 Micro ATX Motherboard

Specification

Supported CPU	Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU
Chipset	Intel® H110 Express Chipset
BIOS	1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Type	Dual channel DDR4 memory architecture
Slots	2 x DIMM
Supported Memory	Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory	32 GB
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Max Shared Memory	1024 MB
D-Sub (s)	1 x D-Sub
USB (s)	Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset: 4 x SATA 6Gb/s connectors
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
Manufacturing Warranty	03 Years

The Gigabyte GA-H110M-S2 Micro ATX Motherboard is a versatile and reliable choice for building efficient desktop PCs. Designed to support Intel 6th and 7th Gen processors, this motherboard features DDR4 memory compatibility, USB 3.0 ports for faster data transfers, and a high-quality audio system for an enhanced experience. With its compact Micro ATX form factor, it’s perfect for smaller cases without compromising on performance. The Gigabyte GA-H110M-S2 also includes advanced features like Smart Fan control, ensuring efficient cooling and system stability. Ideal for everyday computing, gaming, or office use, this motherboard delivers great value and reliability

Why Buy the Gigabyte GA-H110M-S2 Micro ATX Motherboard from Nexus?

Genuine Product Assurance Nexus guarantees authentic Gigabyte motherboards with official warranties, giving you peace of mind.
Competitive Pricing Enjoy the best value for your money with affordable prices on high-quality products like the GA-H110M-S2 motherboard.
Wide Selection of Components Nexus offers a vast range of computer components, making it easy to find the perfect match for your build.
Fast and Secure Delivery Your motherboard will arrive promptly and securely packaged to ensure it reaches you in perfect condition.

Brand:

Gigabyte

Motherboard

Body Color :

Black

Chipset:

Intel H110

Chipset Brand :

Intel

Form Factor :

ATX

Generation:
