Gigabyte B760M GAMING X DDR4 13th and 12th Gen Micro Micro ATX Motherboard

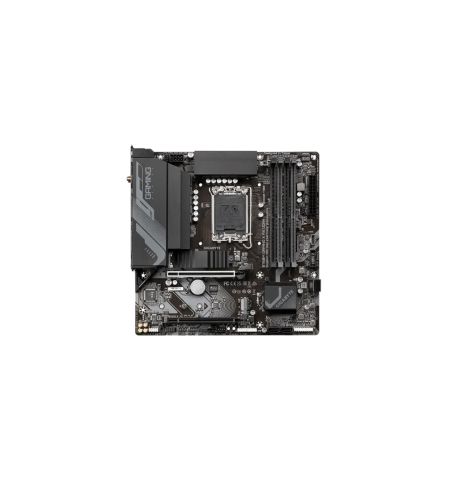

Gigabyte B760M GAMING X DDR4 Motherboard
SPECIFICATION
Brand | Gigabyte |
Model | Gigabyte B760M GAMING X |
Chipset Brand | Intel |
Chipset | Intel B760 Express Chipset |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Supported CPU | LGA1700 socket: 1. Support for the 13th and 12th Generation Intel Core, Pentium® Gold and Celeron Processors 2. L3 cache varies with CPU |
Memory Type | DDR4 |
Memory | 1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
Expansion Slot | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Audio | 1. Realtek Audio CODEC
2. High Definition Audio 3. 2/4/5.1/7.1-channel 4. Support for S/PDIF Out |
USB Port | Chipset: 1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 3. 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Ports | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 3 x system fan headers 5. 2 x addressable LED strip headers 6. 2 x RGB LED strip headers 7. 2 x M.2 Socket 3 connectors 8. 4 x SATA 6Gb/s connectors 9. 1 x front panel header 10. 1 x front panel audio header 11. 1 x S/PDIF Out header 12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support 13. 1 x USB 3.2 Gen 1 header 14. 2 x USB 2.0/1.1 headers 15. 2 x Thunderbolt™ add-in card connectors 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 17. 1 x serial port header 18. 1 x reset button 19. 1 x Q-Flash Plus button 20. 1 x reset jumper 21. 1 x Clear CMOS jumper |
External I/O Ports | 1. 3 x USB 3.2 Gen 1 ports
2. 5 x USB 2.0/1.1 ports 3. 1 x HDMI 2.0 port 4. 1 x DisplayPort 5. 1 x RJ-45 port 6. 3 x audio jacks |
Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Warranty Information | |
Warranty | 3 years |
Nexus will be your first choice If you want to buy Gigabyte B760M GAMING X Motherboard in Bangladesh, Because we sale only GIGABYTE authorized original Motherboard. So you are at the right place to buy right Gigabyte Motherboard at the lowest price in Bangladesh.
Nexus Offers you Gigabyte B760M GAMING X Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Gigabyte B760M GAMING X Motherboard? and where you can get Gigabyte Motherboard at lowest price in BD? Yes, it is Nexus. Gigabyte B760M GAMING X Motherboard now available at Nexus, So Don’t Think more to buy Gigabyte B760M GAMING X Motherboard.
