GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard
GIGABYTE B760M AORUS ELITE DDR5 MATX MOTHERBOARD SPECIFICATION
Basic Information | |
Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
Chipset | Intel B760 Express Chipset |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
Expansion Slots | |
PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFireX technology |
M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
Memory | |
Type | DDR5 |
Slots | 4 |
Supported Memory | Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Maximum Memory | 192GB (48 GB single DIMM capacity) |
Graphics | |
Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
Connector & Ports | |
HDMI | 1x HDMI |
Display Port (s) | 1x DisplayPort |

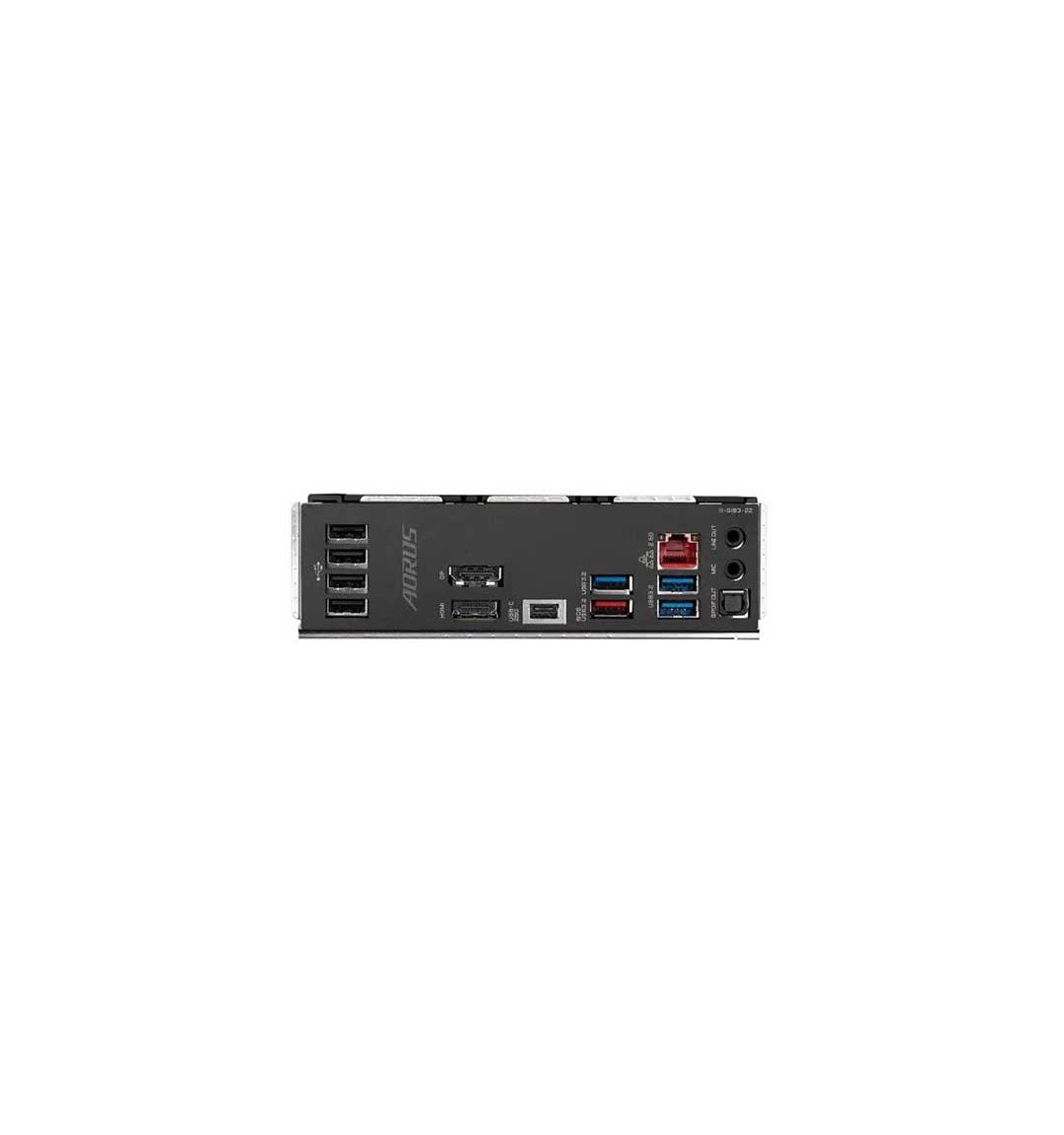

USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen 1 port on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Audio | 1 x front panel audio header 2 x audio jacks |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
Others | |
Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
Warranty Information | |
Manufacturing Warranty | 3 years |
Gigabyte B760M Aorus Elite DDR5 Motherboard: The Ultimate Gaming Powerhouse
In the world of gaming, having a powerful and reliable motherboard is essential for an exceptional gaming experience. Gigabyte B760M Aorus Elite DDR5 motherboard is a game-changer in the realm of gaming hardware. With its cutting-edge features and unparalleled performance, this motherboard is designed to take your gaming to the next level. In this article, we will delve into the details of this remarkable product, highlighting its key features, benefits, and why it is the perfect choice for avid gamers. So, let's dive in!
Key Features
1. Advanced DDR5 Technology
The Gigabyte B760M Aorus Elite DDR5 motherboard is equipped with the latest DDR5 technology, offering blazing-fast speeds and improved power efficiency. With DDR5, you can experience faster data transfer rates, reduced latency, and enhanced overall system performance. This means smoother gameplay, quicker load times, and seamless multitasking capabilities.
2. Robust Power Delivery System
This motherboard features an advanced power delivery system that ensures stable and efficient power distribution to all components. With its 14+2 power phase design and high-quality components, the B760M Aorus Elite DDR5 motherboardcan handle the most demanding gaming sessions without compromising performance. This results in improved overclocking potential and enhanced system stability.
3. PCIe 4.0 Support
For gamers seeking the ultimate graphics performance, the Gigabyte B760M Aorus Elite DDR5 motherboard supports PCIe 4.0. This next-generation PCIe standard offers double the bandwidth of PCIe 3.0, allowing for faster data transfer between the motherboardand graphics card. This means you can enjoy smoother gameplay, higher frame rates, and stunning visuals without any bottlenecks.
4. Advanced Cooling Solutions
Heat management is crucial for optimal performance, especially during intense gaming sessions. The B760M Aorus Elite DDR5 motherboard comes equipped with advanced cooling solutions, including multiple fan headers and heatsinks. This ensures efficient heat dissipation, keeping your system cool even under heavy loads. With improved thermal performance, you can push your hardware to the limits without worrying about overheating.
5. Aesthetic Design
In addition to its impressive performance, the Gigabyte B760M Aorus Elite DDR5 motherboard features a sleek and stylish design. With its black PCB, customizable RGB lighting, and premium components, this motherboard not only delivers exceptional performance but also adds a touch of elegance to your gaming setup. It's a perfect blend of aesthetics and functionality.
Who Should Buy the Gigabyte B760M Aorus Elite DDR5 Motherboard?
The Gigabyte B760M Aorus Elite DDR5 motherboard is specifically designed for gamers who demand nothing but the best. If you are an avid gamer who wants to experience the latest gaming technologies, push your hardware to the limits, and achieve unparalleled performance, this motherboard is the perfect choice for you.
Why Buy from Nexus?
When it comes to purchasing high-quality computer hardware, Nexusis the go-to destination for gamers and tech enthusiasts. Here's why you should consider buying the Gigabyte B760M Aorus Elite DDR5 motherboard from Nexus:
- Reliable and Trustworthy: Nexus is known for its reputation as a reliable and trustworthy retailer. They offer genuine products from top brands, ensuring that you receive only the best quality.
- Competitive Pricing: Nexus offers competitive pricing, allowing you to get the Gigabyte B760M Aorus Elite DDR5 motherboard at the best possible price. They often have exclusive deals and discounts, making it a cost-effective choice.
- Excellent Customer Service: Nexus provides excellent customer service, ensuring a smooth and hassle-free shopping experience. Their knowledgeable staff is always ready to assist you with any queries or concerns.
- Fast and Secure Shipping: Nexus offers fast and secure shipping options, ensuring that your motherboard arrives safely and on time. You can track your order and have peace of mind knowing that your purchase is in good hands.
- Warranty and Returns: Nexus offers warranty coverage and a hassle-free return policy, providing you with peace of mind and protection for your investment.
FAQ (Frequently Asked Questions)
1. Is the Gigabyte B760M Aorus Elite DDR5 motherboard compatible with my existing components?
Yes, the Gigabyte B760M Aorus Elite DDR5 motherboard is compatible with most modern components. However, it is always recommended to check the compatibility list provided by Gigabyte or consult with the manufacturer to ensure compatibility with your specific components.
2. Can I overclock my CPU and RAM with this motherboard?
Absolutely! The
e B760M Aorus Elite DDR5 motherboard is designed for overclocking enthusiasts. With its robust power delivery system and advancedcooling solutions, you can safely overclock your CPU and RAM for enhanced performance. Just make sure to follow proper overclocking techniques and monitor your system temperatures.
3. Does the Gigabyte B760M Aorus Elite DDR5 motherboard support multiple graphics cards?
Yes, this motherboard supports multi-GPU configurations. It features multiple PCIe slots, including PCIe 4.0, allowing you to install multiple graphics cards for improved gaming performance and graphics rendering.
4. Can I customize the RGB lighting on the Gigabyte B760M Aorus Elite DDR5 motherboard?
Absolutely! The motherboard comes with customizable RGB lighting. You can use Gigabyte's RGB Fusion software to personalize the lighting effects and synchronize them with other RGB components in your gaming setup.
5. What is the warranty coverage for the Gigabyte B760M Aorus Elite DDR5 motherboard?
The warranty coverage for the Gigabyte B760M Aorus Elite DDR5 motherboard may vary depending on the retailer and region. It is recommended to check with the retailer or Gigabyte's official website for detailed warranty information.
Conclusion
The Gigabyte B760M Aorus Elite DDR5 motherboard is a powerhouse that brings together cutting-edge technology, exceptional performance, and stunning aesthetics. With its advanced features like DDR5 support, robust power delivery system, PCIe 4.0 compatibility, and advanced cooling solutions, this motherboard is a dream come true for gamers who crave top-tier performance. Whether you are a casual gamer or a hardcore enthusiast, the B760M Aorus Elite DDR5 motherboard will elevate your gaming experience to new heights. So, don't hesitate to invest in this remarkable piece of gaming hardware and unleash the true potential of your gaming rig.
Remember, for the best deals and reliable service, consider purchasing the Gigabyte B760M Aorus Elite DDR5 motherboard from Nexus. They are known for their competitive pricing, excellent customer service, and fast shipping. Get ready to embark on an extraordinary gaming journey with the Gigabyte B760M Aorus Elite DDR5 motherboard as your ultimate companion.
