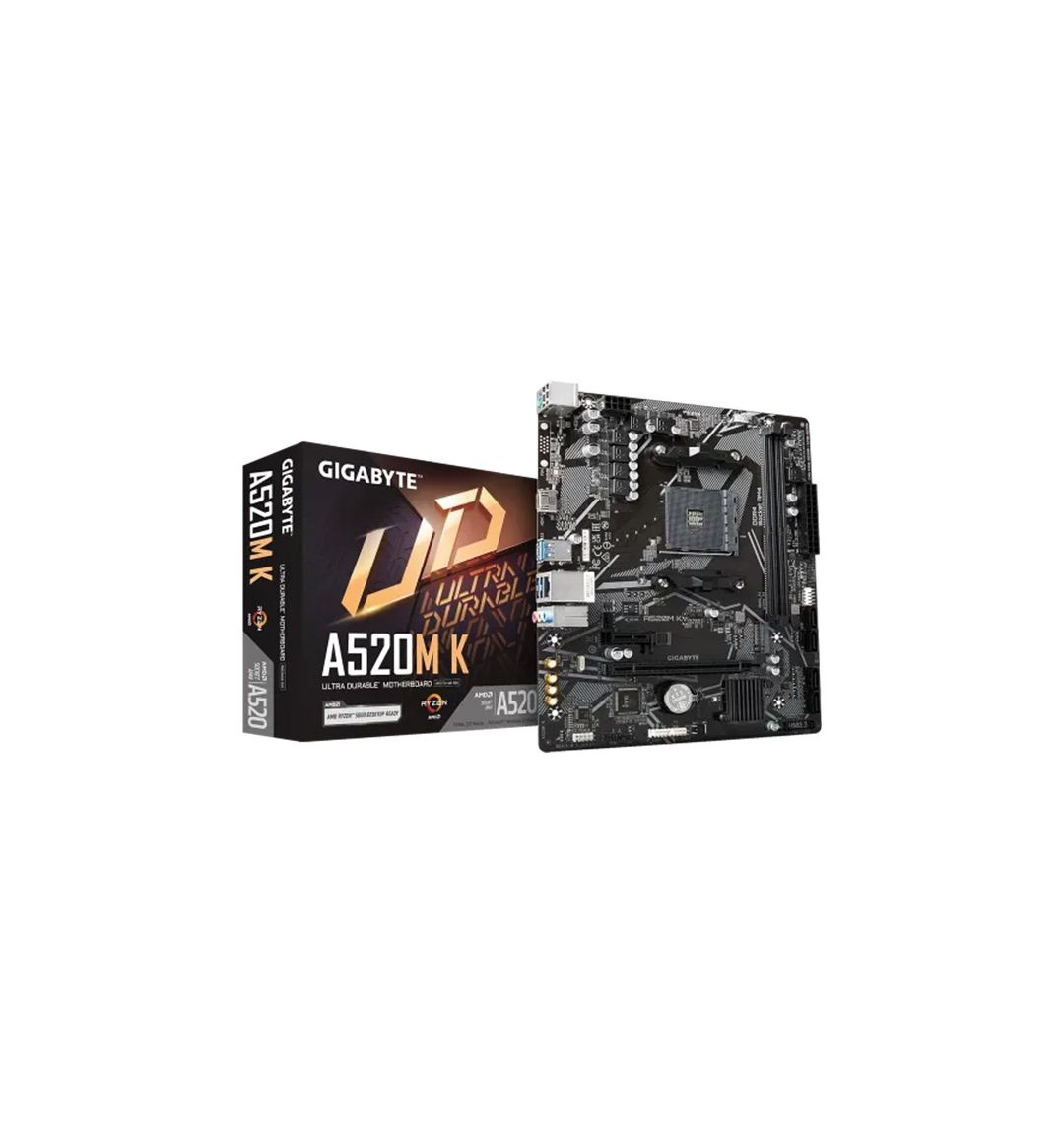

Gigabyte A520M K DDR4 Motherboard
SPECIFICATION
| Brand | Gigabyte |
| Model | Gigabyte A520M K |
| Chipset Brand | AMD |
| Chipset | AMD A520 |
| Form Factor | Micro ATX Form Factor; 23.3cm x 19.8cm |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors |
| Memory Type | DDR4 |
| Memory | 1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2.Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3. Dual channel memory architecture 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Expansion Slot | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Audio | 1. Realtek Audio CODEC
2. High Definition Audio 3. 2/4/5.1/7.1-channel |
| USB Port | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1. 2 x USB 3.2 Gen 1 ports available through the internal USB header 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Ports | 1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 1 x system fan header 5. 1 x M.2 Socket 3 connector 6. 4 x SATA 6Gb/s connectors 7. 1 x front panel header 8. 1 x front panel audio header 9. 1 x USB 3.2 Gen 1 header 10. 2 x USB 2.0/1.1 headers 11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 12. 1 x speaker header 13. 1 x Clear CMOS jumper 14. 1 x chassis intrusion header |
| External I/O Ports | 1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port 3. 4 x USB 3.2 Gen 1 ports 4. 2 x USB 2.0/1.1 ports 5. 1 x RJ-45 port 6. 3 x audio jacks |
| Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| BIOS | 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty Information | |
| Warranty | 3 years |
