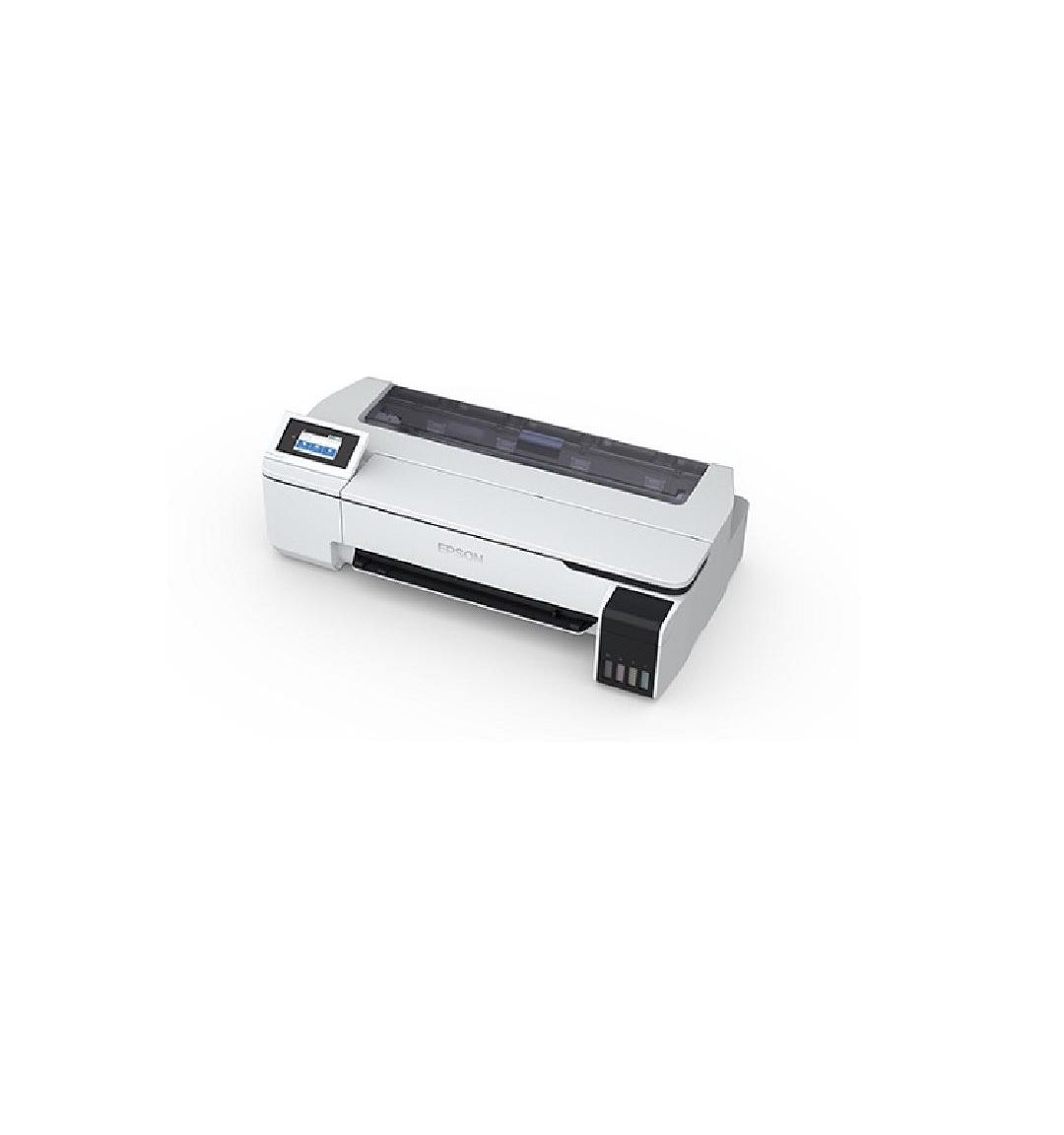

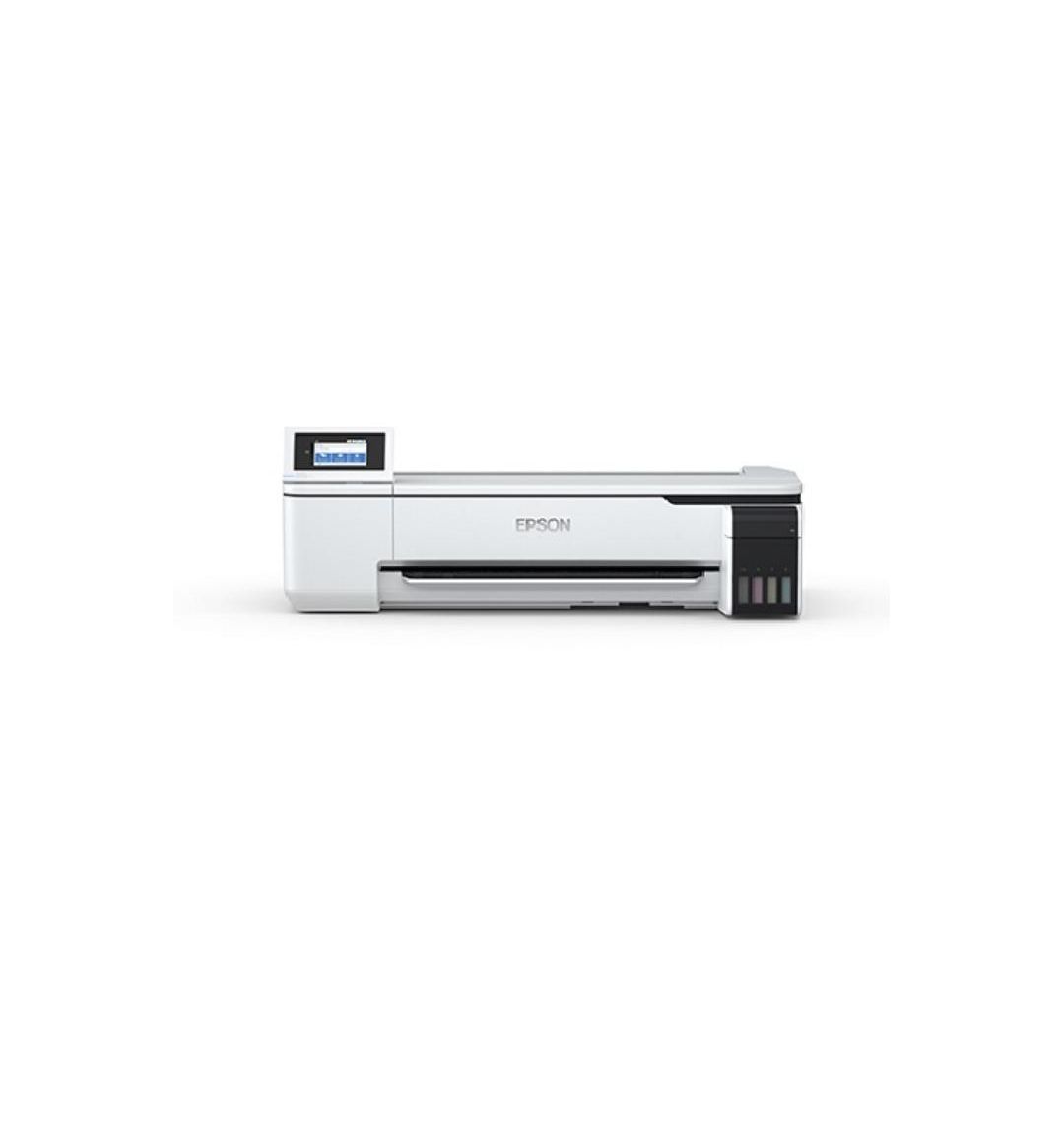

EPSON SC-T3130X 24″ Large Format Printer
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | Epson LFP SC-T3130X |
| Printer Width | 61 cm (24") Large Format Printer |
| Print Technology | PrecisionCore Inkjet with Variable-Sized Droplet Technology |
| Printhead | PrecisionCore TFP Printhead |
| Nozzle Configuration | 3200 Nozzles (800 × 4 Channels × 1 Head) |
| Maximum Resolution | 2400 × 1200 dpi |
| Minimum Ink Droplet Size | 3.8 pl |
| Print Speed | Approx. 34 Seconds |
| Ink Type | Pigment Black Ink & Dye-Based Colour Ink |
| Ink Colours | Black, Cyan, Magenta, Yellow |
| Ink Capacity | 140 ml Ink Bottles |
| Paper Path | Friction Feed |
| Supported Roll Width | 329 mm – 610 mm |
| Cut Sheet Support | A4 to A3 |
| Media Thickness | Roll: 0.05–0.21 mm, Cut Sheet: 0.12–0.27 mm |
| Control Panel | 4.3" (10.9 cm) Touchscreen Display |
| Connectivity | SuperSpeed USB, LAN (100BASE-TX/1000BASE-T), Wi-Fi, Wi-Fi Direct |
| Printer Language | ESC/P Raster, HP-GL/2, HP RTL |
| Memory | 1GB |
| Power Consumption | 22W Operating, 8W Ready, 1.6W Sleep, 0.2W Power Off |
| Operating Temperature | 10°C – 35°C |
| Noise Level | Approx. 50 dB(A) Operating |
| Dimensions (Without Stand) | 970 × 245 × 577 mm |
| Dimensions (With Stand) | 970 × 245 × 811 mm |
| Weight | 29 kg |
| Included Accessories | Initial Ink, AC Power Cable, Setup Guide, Software CD, Maintenance Box |
| Optional Accessories | Stand (24"), Roll Feed Spindle |
| Consumables | Ink Bottles, Replacement Cutter Blade, Maintenance Tank |
Description
The Epson LFP SC-T3130X 24-inch Large Format Printer is a compact yet powerful printing solution designed for architects, engineers, and creative professionals who require precise and reliable wide-format output. Built with PrecisionCore inkjet technology and a high-density TFP printhead, it delivers exceptional detail with resolutions up to 2400 × 1200 dpi while maintaining fast performance with prints completed in approximately 34 seconds. Its versatile media handling supports roll and cut-sheet printing, making it suitable for technical drawings, posters, and presentation materials. Featuring wireless connectivity, LAN networking, and a responsive 4.3-inch touchscreen interface, the SC-T3130X integrates easily into modern workflows. With efficient ink usage, low power consumption, and a compact footprint, this Epson large-format printer offers a practical balance of performance, reliability, and space-saving design for professional environments.
