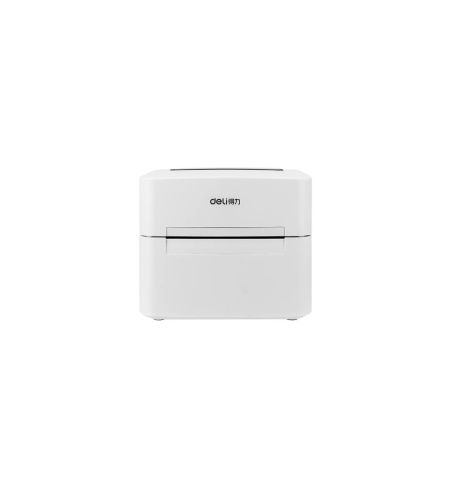

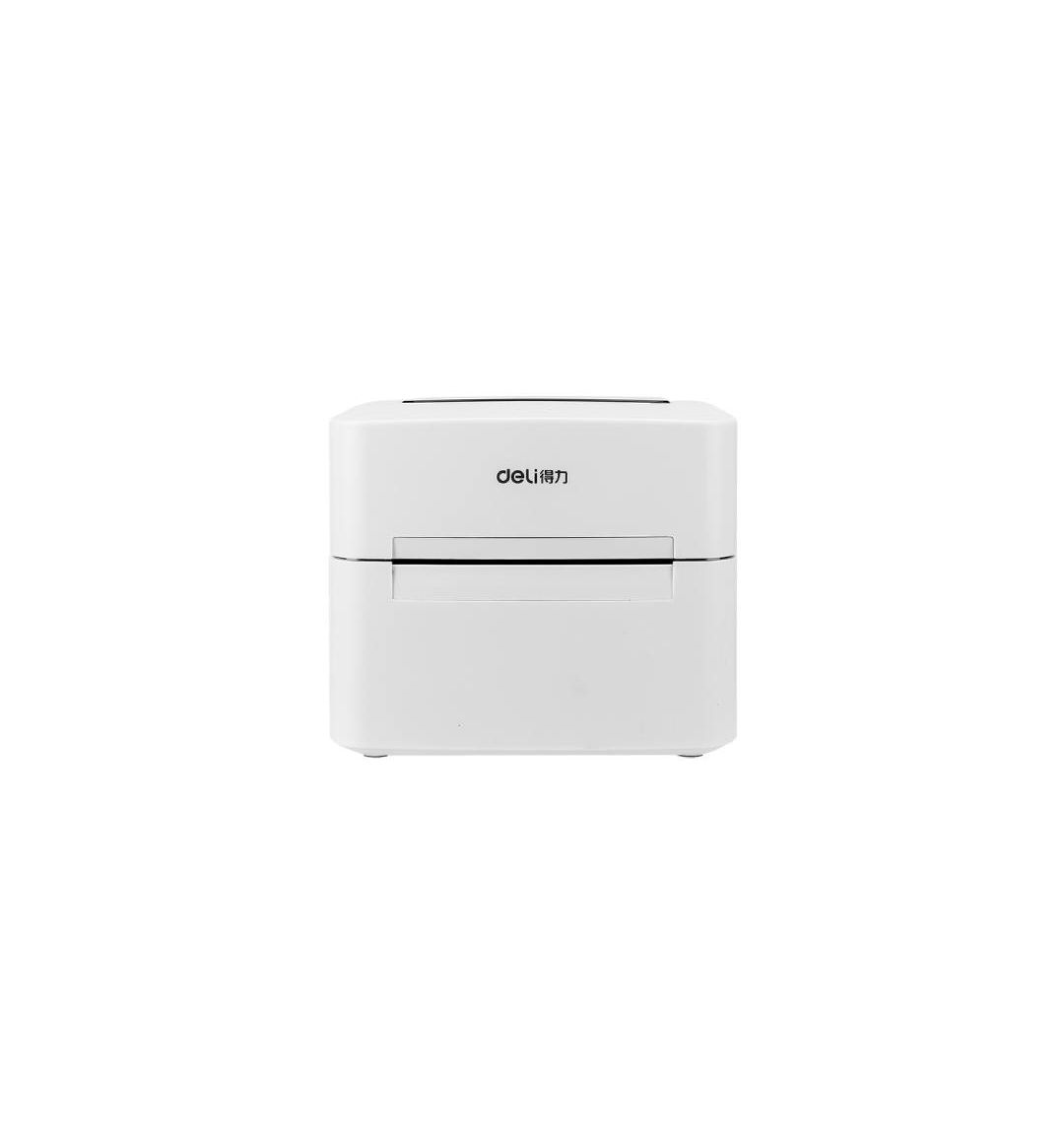

Deli E740C Thermal Label Printer
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | Deli E740C Direct Thermal Barcode Label Printer |
| Model & Part Number | E740C |
| Brand / Manufacturer | Deli |
| Functions | Print Only (Barcode, Shipping Label, Waybill & Product Tag Printing) |
| Output Color | Monochrome (Black) |
| Print Speed Range (Black) | Up to 102 mm/s – 127 mm/s (4.0 – 5.0 inches/sec) |
| Print Speed Range (Color) | None (Monochrome Direct Thermal Output Only) |
| Duplex Print | Manual (Single-Sided Continuous Roll / Fan-Fold Media) |
| Paper Size Max | 108 mm (Supports Media Width from 25.4 mm up to 108 mm) |
| Interface | High-Speed USB 2.0 |
| Consumable Type | Direct Thermal Labels (Thermal Sticker Paper, Waybill Paper, Continuous Thermal Paper) |
| Printing Technology | Direct Thermal Line Printing (No Ink, Toner, or Ribbon Required) |
| Print Resolution | 203 DPI (8 dots/mm) |
| Maximum Print Width | 104 mm to 108 mm |
| Maximum Print Length | Up to 1000 mm |
| Media Types Supported | Roll-fed, Fan-fold, Die-cut Labels, Continuous Labels, Gap Paper, Black Mark Paper |
| Media Thickness | 0.06 mm – 0.20 mm |
| Media Roll Capacity | Max. 100 mm to 127 mm Outer Diameter (Supports external fan-fold feed) |
| Barcode Symbologies | 1D: Code 39, Code 93, Code 128, UCC/EAN-128, EAN-8, EAN-13, UPC-A, UPC-E; 2D: QR Code, PDF417, DataMatrix |
| Emulation / Command Set | TSPL, ESC/POS Emulation Compatible |
| Sensors | Gap Transmissive Sensor, Black Mark Reflective Sensor, Cover Open Sensor, Thermal Head Temperature Sensor |
| Operating System Compatibility | Windows (XP / 7 / 8 / 10 / 11), macOS, Linux |
| Power Supply | Input: AC 100V – 240V, 50/60 Hz; Output: DC 24V / 2.0A – 2.5A |
| Housing Material | Heavy-Duty Impact-Resistant ABS Engineering Plastic |
| Target Use Environments | E-Commerce Hubs, Courier & Logistics Counters, Warehousing, Retail Inventory, Pharmacy Labeling |
| Dimensions | Approx. 220 mm (L) × 180 mm (W) × 150 mm (H) |
| Net Weight | Approx. 1.4 kg – 1.6 kg |
| Package Contents | 1 × Deli E740C Label Printer, 1 × Power Adapter & Cable, 1 × USB Cable, 1 × Label Spindle, 1 × User Manual |
| Color | White |
| Warranty | 1 Year Service Warranty |
Product Description
The Deli E740C is a high-efficiency direct thermal desktop label printer engineered to optimize package dispatch, order processing, and barcode inventory tagging for e-commerce retailers, logistics depots, fulfillment centers, and commercial retail stockrooms. Finished in an elegant, clean White compact enclosure, this printer sits unobtrusively on packing benches and office desks while delivering high-speed, ink-free labeling performance.
Utilizing advanced direct thermal line printing technology, the Deli E740C creates sharp text, high-density 1D barcodes, and crisp 2D QR codes without the ongoing expense or maintenance of ink cartridges, toners, or thermal ribbons. Operating at a standard 203 DPI resolution and throughput speeds reaching up to 102 mm to 127 mm per second, it outputs courier waybills, standard 4×6-inch parcel stickers, address labels, and warehouse product tags with clean edge-to-edge clarity and zero ink smudging.
The printer supports wide media flexibility, accepting label formats up to 108 mm wide. Its spacious clamshell layout accommodates internal label rolls while featuring a rear-feed slot designed to draw external fan-fold stacks seamlessly for high-volume batch shipping sessions. Precision printing is maintained by a dual-sensor array—featuring transmissive gap, reflective black mark, and open-head detection—ensuring accurate page alignment and preventing label skipping or paper feed errors.
Connecting via a reliable high-speed USB interface, the Deli E740C supports standard printer emulations for smooth plug-and-play setup across major operating systems including Windows, macOS, and Linux. Compatible with widespread shipping dispatch platforms, courier networks, and ERP inventory software, and protected by a 1-year service warranty, the Deli E740C Thermal Label Printer provides an economical, durable, and low-maintenance labeling solution for busy commercial operations.
