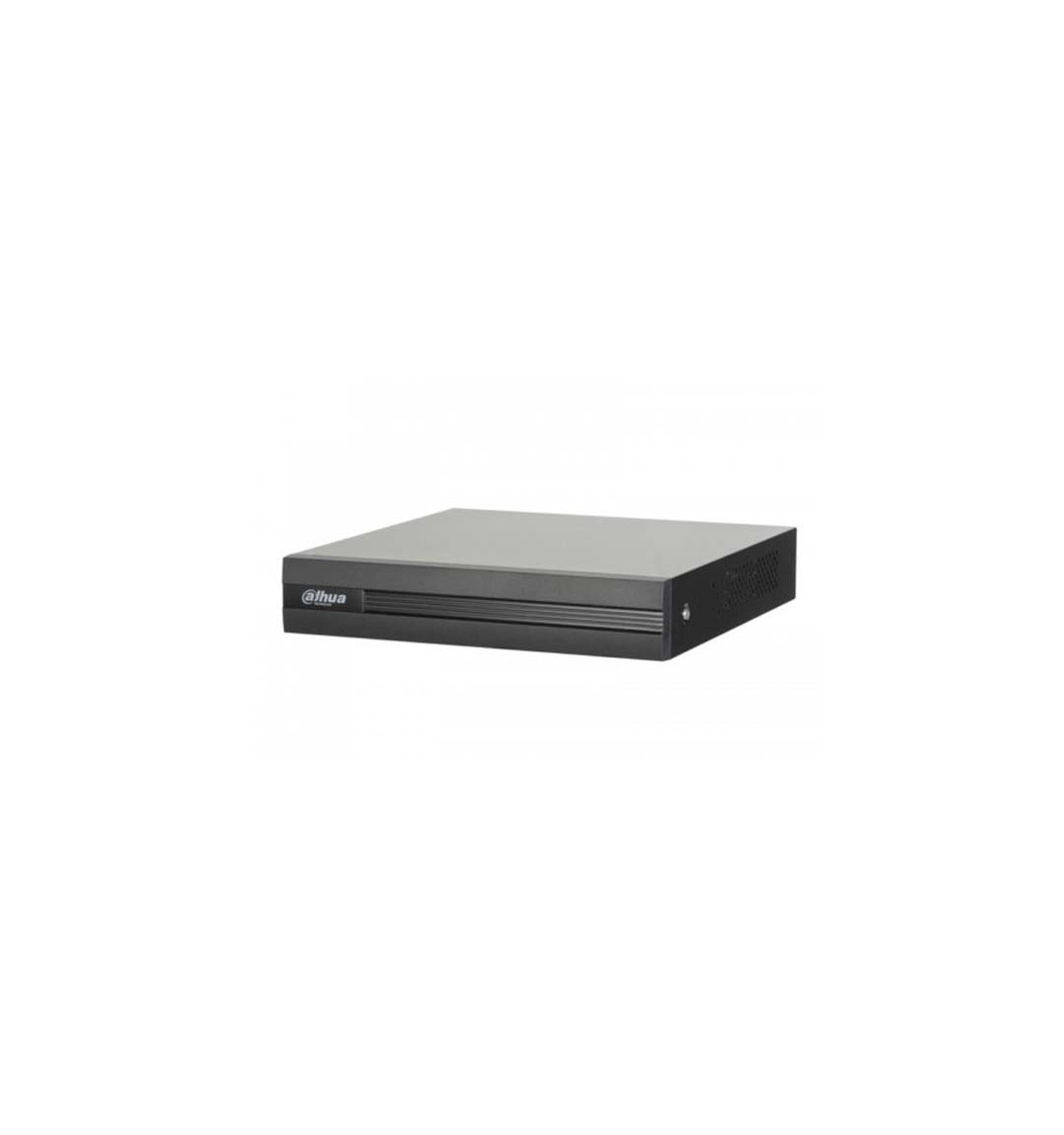

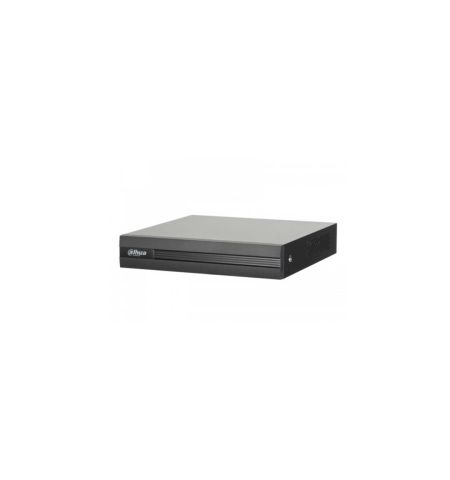

Dahua XVR1B08H I 8 Channels Penta Brid 5M-N 1080p Cooper 1U 1HDD WizSense Digital Video Recorder
Dahua XVR1B08H I 8 Channels Penta Brid 5M-N 1080p Cooper 1U 1HDD WizSense Digital Video Recorder
SPECIFICATION
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Industrial-grade processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface | Web; Local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder | 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input | 8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input | 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input | Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capacity | Main Stream: All channel 5M-N@(1 fps–10 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/ 720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual-stream | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | 32 kbps–6144 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling | 8 kHz, 16 bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate | 64 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output | 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access | Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711u; PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access | iOS, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF 21.06; CGI Conformant | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | Chrome IE9 or later Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Mode | Single-address mode | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode | General, motion detection, alarm, POS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback | 1/4/8/9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method | USB device and network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode | Instant playback, general playback, event playback, tag playback | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm | Motion detection, video loss, tampering | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm | No disk, disk error, low space, offline, ip conflict, MAC conflict | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1-channel RCA 8-channel BNC (Coaxial Audio) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1-channel RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk | Yes (share the same audio input with the first channel) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD Interface | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environmental temperature. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | 2 USB ports (USB 2.0) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC, 1.5 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | <7 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.57 kg (1.26 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 1.05 kg (2.31 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 198.3 mm × 203.4 mm × 41.5 mm (7.81'' × 8.01'' × 1.63'') (W × D × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W× D × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 0%–90% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Desktop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
Dahua XVR1B08H I is an advanced 8-channel Penta Brid5M-N/1080p Cooper 1U 1HDD WizSense Digital Video Recorder, designed to provide reliable and high-quality video surveillance for your home or business. This DVR supports up to8 cameras, allowing you to monitor your entire premises from a single device. With its advanced Penta Brid technology, this DVR is compatible with a wide range of cameras and can support up to5 different technologies, including HDCVI, AHD, TVI, CVBS, and IP. This makes it easy to integrate with your existing security system and ensures that you get the most out of your cameras.
The Dahua XVR1B08H I also features WizSense technology, which uses advanced AI algorithms to detect and classify human and vehicle targets, reducing false alarms and improving the accuracy of your surveillance system. With its 5M-N/1080p Cooper resolution, this DVR delivers clear and detailed video footage, ensuring that you can see everything that's happening on your property. This DVR is easy to set up and operate, with a user-friendly interface that makes it simple to configure your cameras and adjust your security settings. It also comes with a 1U 1HDD design, allowing you to store up to 8 TB of video footage for extended periods of time. Overall, the Dahua XVR1B08H I is an excellent choice for anyone looking for a reliable and advanced digital video recorder that can provide high-quality surveillance for their home or business.
With its advanced features and flexible compatibility, this DVR is sure to meet all your security needs and keep your property safe and secure. Dahua XVR1B08H I is a high-performance digital video recorder designed to deliver superior security surveillance solutions. This recorder features8 channels that can support up to 5M-N/1080p resolution, making it perfect for capturing high-quality images and videos. It also has Penta Brid technology that supports different camera technologies, including HDCVI, AHD, TVI, CVBS, and IP cameras. The Dahua XVR1B08H I is designed to deliver exceptional security surveillance solutions as it comes with advanced features like WizSense, which uses AI algorithms for accurate detection, and smart search that makes it easy to find specific footage. Additionally, it has a 1U 1HDD design that allows you to store your footage easily.
This digital video recorder is also easy to set up and use, making it an excellent choice for both casual and professional users. Its compact design ensures that it won't take up much space in your workspace. Overall, the Dahua XVR1B08H I is a top-of-the-line digital video recorder that will provide you with reliable and high-quality surveillance solutions. Dahua XVR1B08H I is a high-performance digital video recorder designed for professional surveillance applications. It features8 channels capable of supporting Penta Brid5M-N/1080p Cooper cameras, providing crystal-clear video footage with exceptional detail and clarity.
This 1U 1HDD WizSense DVR is equipped with advanced features such as AI-powered video analytics, real-time monitoring, and remote access capabilities, making it an ideal solution for both home and business security needs. With its user-friendly interface and easy-to-install design, the Dahua XVR1B08H I offers a seamless experience for both novice and experienced users. Its compact size and sleek design make it an excellent choice for those looking for a reliable and efficient DVR solution. Whether you need to keep an eye on your home, business, or any other property, the Dahua XVR1B08H I is the perfect choice for all your surveillance needs. So, invest in this powerful and reliable DVR today, and enjoy the peace of mind that comes with knowing your property is always safe and secure.
Dahua XVR1B08H I is an advanced 8-channel digital video recorder designed for professional surveillance applications. Featuring Penta Brid technology, this DVR supports a wide range of analog and digital cameras, including5M-N and1080p cameras. With its Cooper1U chassis design, the XVR1B08H I is compact and easy to install, making it ideal for use in small to medium-sized surveillance systems. It also comes equipped with a 1 TB hard drive to provide ample storage space for video recordings. One of the standout features of this DVR is its WizSense technology, which provides intelligent detection and analysis capabilities for improved security.
This includes features such as face detection, perimeter protection, and smart motion detection, which help to reduce false alarms and improve overall accuracy. Other key features of the Dahua XVR1B08H I include HDMI and VGA video outputs for easy monitoring, remote access via mobile devices or PC, and support for up to8 audio inputs. Whether you're looking to upgrade your existing surveillance system or build a new one from scratch, the Dahua XVR1B08H I is an excellent choice for reliable, high-quality video recording and analysis. The Dahua XVR1B08H I8 Channels Penta Brid5M-N/1080p Cooper 1U 1HDD WizSense Digital Video Recorder is the perfect solution for anyone looking to keep their property safe and secure.
With its advanced technology and cutting-edge features, this digital video recorder is designed to provide you with high-quality video surveillance that is both reliable and easy to use.Featuring8 channels and a Penta Brid design, this DVR supports a variety of analog and IP cameras, giving you the flexibility to choose the right cameras for your specific needs. It can accommodate5M-N and1080p resolutions, ensuring that you get the clearest and most detailed images possible. The Dahua XVR1B08H I is housed in a compact1U chassis and features an a1HDD capacity, allowing you to store plenty of footage without taking up too much space. Its WizSense technology provides intelligent detection and analysis, allowing you to quickly and easily identify any potential security threats.
Whether you're looking to monitor your home, business, or other property, the Dahua XVR1B08H I8 Channels Penta Brid5M-N/1080p Cooper1U1HDD WizSense Digital Video Recorder is the ideal solution. With its advanced features, reliable performance, and easy-to-use interface, this DVR is sure to meet all of your video surveillance needs. Dahua XVR1B08H is a high-quality digital video recorder that provides top-of-the-line surveillance for your home or business. With eight channels, this recorder is capable of monitoring multiple areas simultaneously, making it perfect for larger spaces. The Penta Brid5M-N/1080p technology means that this recorder can support both analog and IP cameras, ensuring compatibility with a wide range of surveillance solutions.
The Cooper1U1HDD design makes it easy to install and operate, while the WizSense technology provides advanced AI algorithms for accurate and reliable detection. With its sleek design and intuitive interface, this digital video recorder is an ideal choice for those who require high-quality surveillance coverage. It is also compatible with the Dahua mobile app, which allows you to monitor your property from anywhere, at any time. Invest in the Dahua XVR1B08H and enjoy the peace of mind that comes with knowing your property is safe and secure.
The Dahua XVR1B08H I is an advanced digital video recorder designed to provide reliable and efficient surveillance for your home or business. It features eight channels, allowing you to connect up to eight cameras for comprehensive coverage of your property. This Penta Brid DVR supports five different types of signals, including HDCVI, HDTVI, AHD, CVBS, and IP, providing you with flexible options to connect different types of cameras. With a maximum resolution of 5M-N/1080p, the Dahua XVR1B08H I delivers crystal-clear images for accurate monitoring. It also comes equipped with advanced WizSense technology that provides intelligent functions like face detection, perimeter protection, and people counting, making it easier to detect and respond to potential security threats.
This DVR is housed in a compact1U chassis, making it easy to install in tight spaces. It also comes with a built-in 1 TB hard drive, providing ample storage space for your video footage. With its user-friendly interface and easy-to-use controls, the Dahua XVR1B08H I is an ideal choice for anyone looking for a reliable and efficient digital video recorder for their surveillance needs. Dahua XVR1B08H I8 Channels Penta Brid5M-N/1080p Cooper 1U 1HDD WizSense Digital Video Recorder is a cutting-edge video recording solution that offers exceptional performance and advanced features. With support for up to8 channels, this recorder is perfect for use in small to medium-sized businesses, homes, and other applications where reliable video surveillance is required.
This recorder features Penta Brid technology, which means it supports five different video signal formats: HDCVI, AHD, TVI, CVBS, and IP. This makes it incredibly versatile and flexible, allowing you to connect a wide range of cameras and other devices to the recorder with ease. You can record videos in up to 5M-N/1080p resolution, ensuring that every detail is captured with stunning clarity. The Dahua XVR1B08H I is also equipped with advanced WizSense technology, which includes features like AI-powered perimeter protection, face recognition, and smart motion detection.
These features work together to provide you with an intelligent and proactive surveillance solution that can detect and respond to potential threats before they become a problem. This recorder is designed with ease of use in mind, featuring a simple and intuitive interface that makes it easy to set up and configure. It also comes with a range of convenient features like remote access, mobile viewing, and email alerts, so you can stay connected to your surveillance system no matter where you are. Overall, the Dahua XVR1B08H I8 Channels Penta Brid5M-N/1080p Cooper 1U 1HDD WizSense Digital Video Recorder is a powerful and reliable video recording solution that offers exceptional performance and advanced features. Whether you're looking to monitor your home or business, this recorder is sure to meet all your surveillance needs. Dahua XVR1B08H I8 Channels Penta Brid5M-N/1080p Cooper1U1HDD WizSense Digital Video Recorder is an advanced surveillance device that allows you to monitor your property with ease.
With its8 channels, you can connect up to8 cameras to the recorder and view them all on a single screen. It supports Penta Brid technology, which means it is compatible with HDCVI, AHD, TVI, CVBS, and IP cameras. The Dahua XVR1B08H I can record videos in 5M-N/1080p resolution, providing you with crystal-clear footage. It also has a Cooper 1U1HDD design, which means it is compact and easy to install. You can store the recorded video on the internal HDD, which can be expanded up to 6TB. The WizSense technology incorporated into this digital video recorder provides advanced AI features such as perimeter protection, facial recognition, and smart motion detection. With these features, you can receive notifications when suspicious activity is detected, making it easier to monitor your property and keep it safe.
Dahua XVR1B08H I8 Channels Penta Brid5M-N/1080p Cooper 1U 1HDD WizSense Digital Video Recorder is an excellent investment for anyone looking to improve their property's security. It is easy to install, supports multiple camera types, and provides advanced AI features that make surveillance more efficient and effective. Dahua XVR1B08H I is an advanced 8-channel Penta Brid digital video recorder that delivers exceptional performance and flexibility. This powerful device supports5M-N and1080p video resolutions, providing crystal-clear images and video footage.
The device is housed in a compact 1U chassis, making it ideal for small and medium-sized businesses. The Dahua XVR1B08H I is equipped with WizSense technology, which leverages advanced algorithms to improve the accuracy and effectiveness of video surveillance. This feature enables the device to detect and classify human and vehicle targets, significantly reducing false alarms and improving the overall reliability of the system. The digital video recorder features a single hard disk drive (HDD) slot, enabling users to store large amounts of video footage without the need for additional hardware. The device supports up to 10 TB of storage, ensuring that users have ample space for their video surveillance needs.
The Dahua XVR1B08H I is designed to be easy to install and configure, making it an ideal solution for businesses looking to implement an advanced video surveillance system. The device can be remotely accessed and controlled via a mobile app, providing users with real-time access to their video footage from anywhere in the world. Overall, the Dahua XVR1B08H I is an advanced and versatile digital video recorder that is well-suited for a wide range of video surveillance applications. Its advanced features, compact design, and easy-to-use interface make it an excellent choice for businesses looking to enhance their security and surveillance capabilities.
