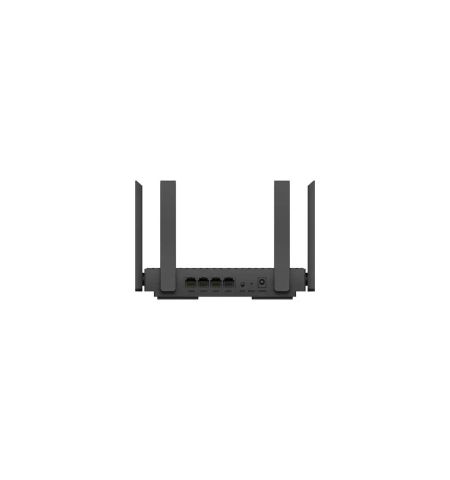

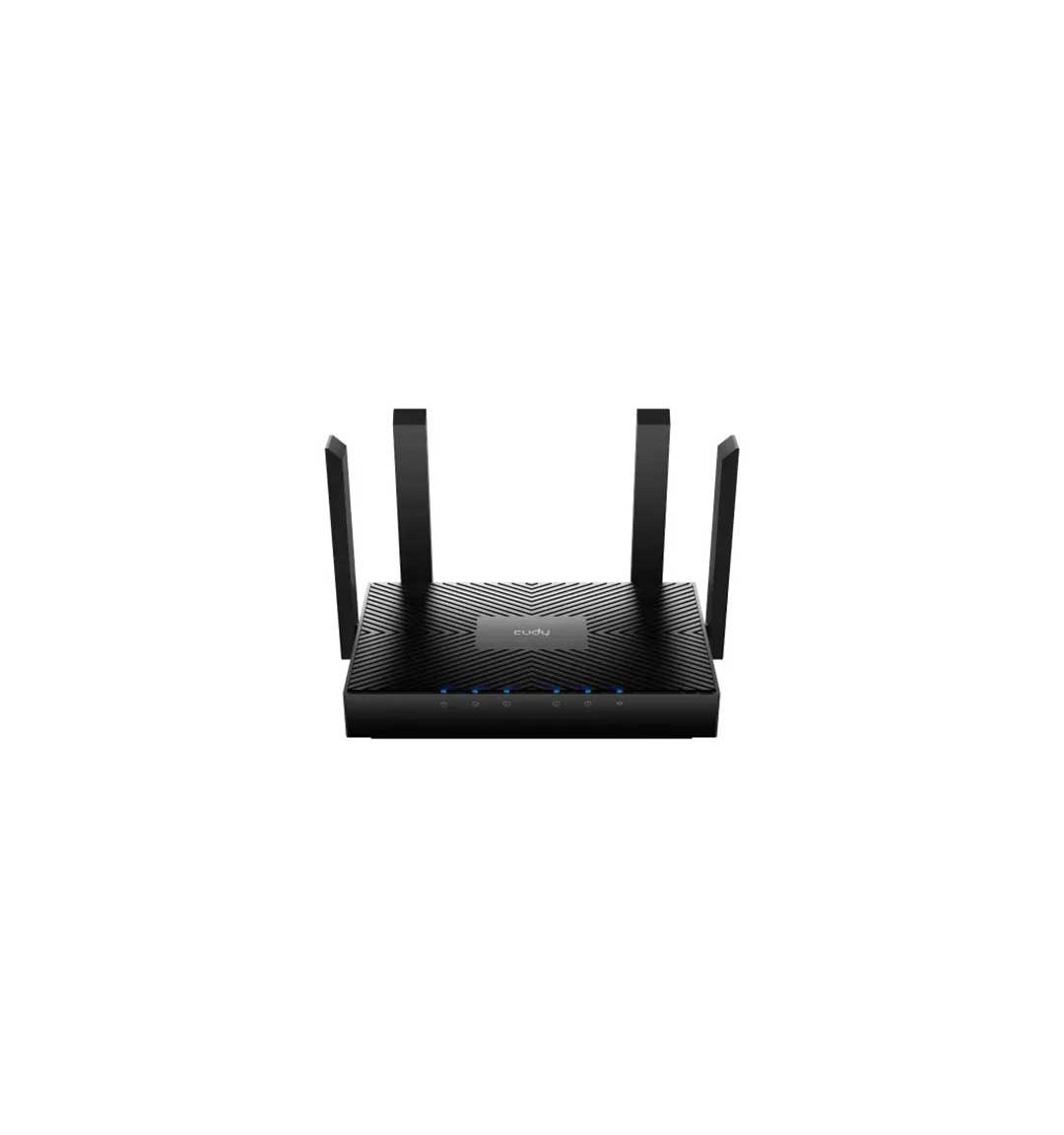

Cudy WR3000S AX3000 Gigabit Mesh Wi-Fi 6 Router
Save 14%
Please sign in so that we can notify you about a reply
Specification
| Brand | Cudy |
| Model | WR3000S |
| Type | WR3000S Gigabit Mesh Wi-Fi 6 Router |
| CPU | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Storage | Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 256 MB (2 Gbit) DDR3 |
| Wireless | 5 GHz Wi-Fi Speed: 2402 Mbps 2.4 GHz Wi-Fi Speed: 574 Mbps 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 4× Fixed 5 GHz Antenna Gain Max: 5.3dBi 2.4 GHz Antenna Gain Max: 5.3dBi FEM or PA/LNA 5 GHz: 3× Internal 2.4 GHz: 2× Internal Beamforming: True Range Performance: Max: 220 m (722 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions Wall Performance: Two wooden walls with a thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
| Interfaces | Gigabit RJ45 Ports: 5 Ethernet Notes: 1× WAN port, the rest are LAN ports LED: System, Internet, WPS, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WAN, LAN Physical Buttons: WPS Button, Reset Button Power Input: DC Jack |
| Power | Power Methods: DC DC: 12V 1A Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC Max Power Consumption (W): 7.5W |
| Reliability | Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Installation | Desktop Wall-mount |
| Wireless | Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: OFDMA, MU-MIMO, BSS Color Max Capacity: 512 Recommended Client Upper Limit: 200 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True |
| General | Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client Mesh: Cudy Mesh Mesh Backhaul: Wireless Backhaul, Wired Backhaul Multi-Band Backhaul: True WAN Mode: DHCP, Static IP, PPPOE Internet Failover Sequence: WAN, WISP |
| Network | QoS: Per-User Rate Limiting DHCP: Address Reservation, DHCP Client List, Server IP Versions: IPv4/IPv6 IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite IPTV/VLAN: Bridge, Tag VLAN TTL Customization: Extend, Spoof, Custom IGMP: IGMP Proxy, IGMP Snooping Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ Firewall: SPI Firewall, DoS Protection, Block PING Application Layer Gateway: IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough |
| Utilities | VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP VPN Performance: OpenVPN Client (UL/DL): 90 / 120 Mbps OpenVPN Server (UL/DL): 180 / 160 Mbps WireGuard Client (UL/DL): 224 / 230 Mbps WireGuard Server (UL/DL): 160 / 90 Mbps OpenVPN Client (UL/DL): 90 / 120 Mbps OpenVPN Server (UL/DL): 180 / 160 Mbps WireGuard Client (UL/DL): 224 / 230 Mbps WireGuard Server (UL/DL): 160 / 90 Mbps DNS Options: DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS DNS over TLS Providers: Cloudflare, Google, Quad9, Custom Captive Portal: True Wake on LAN: True Online Detection: True |
| Management | All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding Per-Devices Management: Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename Content Management: Domain Filter, IP Filter |
| System | Local Control Method: Config Web Page, App Control Remote Control Method: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR181 Firmware Upgrade: Local Update, App (Over the Air), Online Update Reliability: Timed Reboot, Backup and Restore Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log Languages: English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
| Dashboard | Panel: Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version |
| Dimensions | Dimension: 173×123.8×33 mm 6.81×4.87×1.3 inches Retail Package Dimension: 304×268×54 mm 11.97×10.55×2.13 inches |
| Weight | Retail Package Weight: 725 g (25.57 oz.) |
| Included in the Box | WR3000S Power Adapter Ethernet Cable Installation Guide |
| Warranty Details | 1-Year Brand Warranty |
