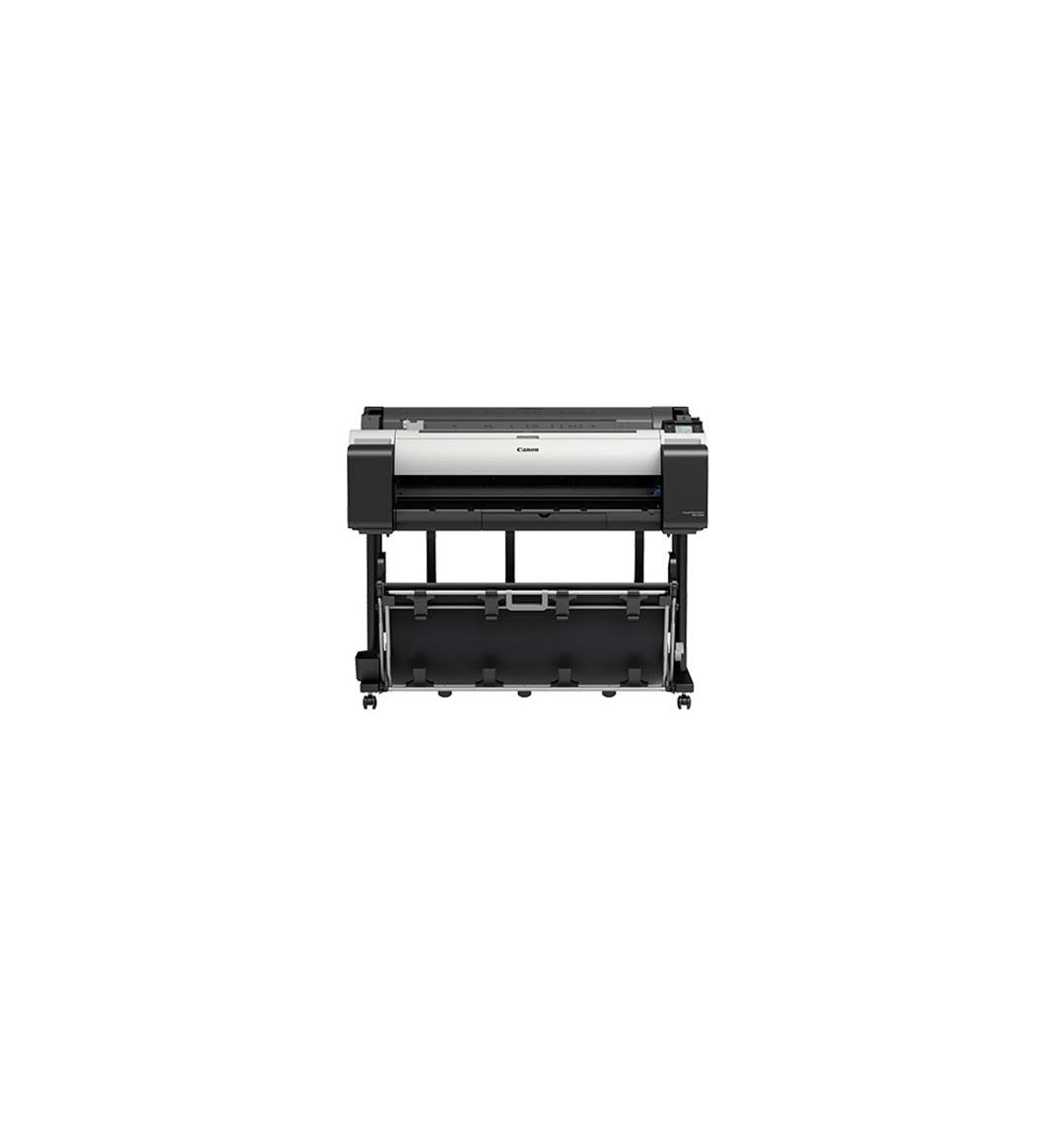

Canon imagePROGRAF TM-5300 Large Format Printer
Please sign in so that we can notify you about a reply
Canon imagePROGRAF TM-5300 Printer
SPECIFICATION
| Printer Type | 5-Colour, 36" / 914 Mm, (Only Print) |
| Number Of Nozzles | 15,360 Nozzles (MBK: 5,120 Nozzles; BK, C, M, Y: 2,560 Nozzles Each) |
| Memory (Standard) | 2 GB |
| Print Resolution | 2400 X 1200 Dpi |
| Nozzle Pitch | 1200 Dpi (2 Lines) |
| Line Accuracy | ±0.1% Or Less |
| Minimum Ink Droplet Size | 5 Pl |
| Ink Capacity | Sales Ink: 130 Ml / 300 Ml (MBK, BK, C, M, Y) Bundled Starter Ink: 130 Ml (MBK) / 90 Ml (BK, C, M, Y) |
| Ink Type | Pigment Ink: Matte Black, Black, Cyan, Magenta, Yellow |
| Printer Language | SG Raster (Swift Graphic Raster) HP-GL/2 HP RTL JPEG (Ver. JFIF 1.02) |
| Standard Interfaces (Built-In) | USB B Port: Hi-Speed USB, Full Speed (12 Mb/Sec), High Speed (480 Mb/Sec), High Speed (480 Mb/Sec), Bulk Transfer, Series B (4 Pins) Gigabit Ethernet: IEEE 802.3 10base-T, IEEE 802.3u 100base-TX/Auto-Negotiation, IEEE 802.3ab 1000base-T/Auto Negotiation, IEEE 802.3x Full Duplex Wireless LAN: IEEE802.11n/G/B |
| Memory (Standard) | 2GB |
| Printing Speed |
|
| CAD Drawing - Plain Paper (A1) | 24 Sec (Fast Economy Mode) 27 Sec (Fast) 42 Sec (Standard) |
| CAD Drawing - Heavyweight Coated Paper HG (A1) | 29 Sec (Fast Economy Mode) 40 Sec (Fast) 1 Min 17 Sec (Standard) |
| Poster - Plain Paper (A1) | 25 Sec (Fast Economy Mode) 25 Sec (Fast) 44 Sec (Standard) |
| Poster - Heavyweight Coated Paper HG (A1) | 55 Sec (Fast) 1 Min 22 Sec (Standard) |
| Media Handling |
|
| Media Feed Method (Single Roll) | Roll Paper: One Roll, Upper Load, Front Output Cut Sheet: Upper Load, Front Output (Manual Feed Using Media Locking Lever) |
| Media Output (SD-23) | Standard Position: 1 Sheet Folding Position: 20 Sheets On A1 Portrait/A0 Portrait Flat Position: 20 Sheets On A1 Landscape/A2 Landscape |
| Media Width (Roll / Cut Sheet) | 203.2 - 917 Mm |
| Media Thickness (Roll / Cut Sheet) | 0.07 - 0.8 Mm |
| Minimum Printable Length | Roll Paper: 18 M (Varies According To The OS And Application) Cut Sheet: 1.6 M |
| Maximum Outer Roll Diameter | 150 Mm Or Less |
| Borderless Printing Width (Roll Only) | Recommended: 515 Mm (B2), 728 Mm (B1), 594 Mm (A1), 841 Mm A0), 10", 14", 17", 24", 36" Printable: 257 Mm (B4), 297 Mm (A3), 329 Mm (A3+), 420 Mm (A2), 8", 12", 16", 20", 30", 300 Mm, 500 Mm, 600 Mm, 800 Mm |
| Dimensions And Weight |
|
| Physical Dimensions And Weight | Main Unit + Stand + Basket (SD-32): |
| (Include Roll Holder Set, Exclude Ink And Print Head) | Approx. 1289 X 887 X 1060 Mm (Basket Open) Approx. 1289 X 757 X 1060 Mm (Basket Closed) Approx. 60 Kg |
| Packaged Dimensions And Weight | Main Unit + Pallet: Approx. 1462 X 913 X 961 Mm, Approx. 105 Kg, |
| Power And Operating Requirements |
|
| Power Supply | AC 100 - 240 V, 50 - 60 Hz |
| Power Consumption | Operation: 69 W Or Less Sleep Mode: 3.6 W Or Less Power Off: 0.3 W Or Less |
| Operating Environment | Temperature: 15 - 30°C Humidity: 10 - 80% RH (No Dew Condensation) |
| Acoustic Sound | [Acoustic Pressure] |
| (Measured Using ISO 7779 Standard) | Operation: 44 DB(A) (Plain Paper, Line Drawing; Print Priority - Standard) Standby: 35 DB(A) Or Less [Acoustic Power] Operation: 60 DB (Plain Paper, Line Drawing; Print Priority - Standard) |
Warranty: 01 Year Service Warranty
Nexus will be your first choice If you want to buy Canon imagePROGRAF TM-5300 Printer in Bangladesh, Because we sell only Canon authorized original Printer. So you are at the right place to buy the right Canon Printer at the lowest price in Bangladesh.
Nexus Offers you Canon imagePROGRAF TM-5300 Printer at the best price in Bangladesh, which is your budget-friendly Printer. Do you want to know what is the price of the Canon imagePROGRAF TM-5300 Printer? and where you can get a Canon Printer at the lowest price in BD? Yes, it is Nexus. Canon imagePROGRAF TM-5300 Printer is now available at Nexus, So Don’t Think more to buy Canon imagePROGRAF TM-5300 Printer.
Brand:
Canon
