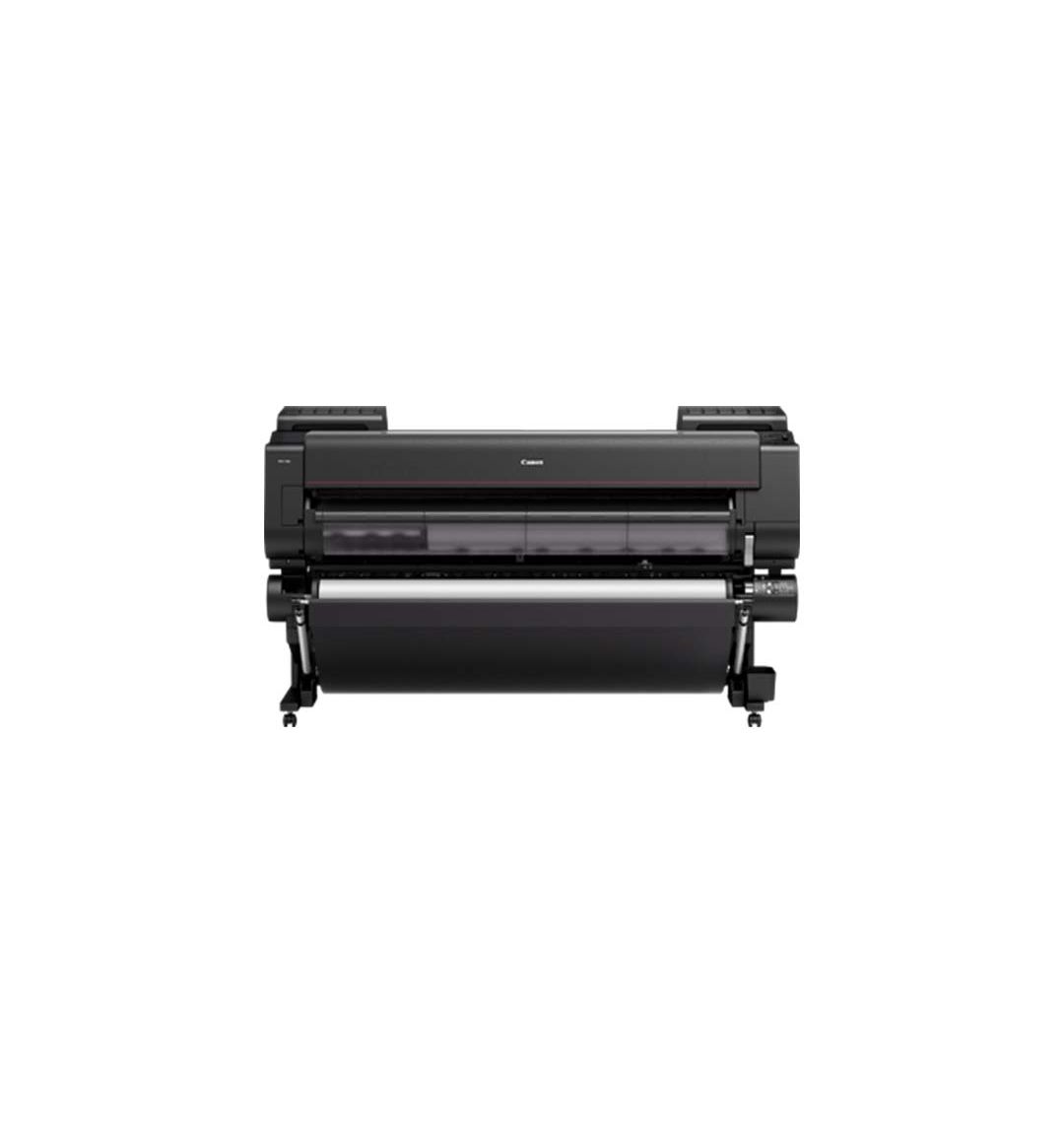

Canon imagePROGRAF PRO-561 Standard dual roll system Large Format Printer
Please sign in so that we can notify you about a reply
Canon imagePROGRAF PRO-561 Standard dual roll system Large Format Printer
SPECIFICATION
Printer
Printer Type | 12-Colour, 60" / 1524 mm |
Number of Nozzles | 18,432 nozzles (1536 nozzles x 12 colours) |
Maximum Print Resolution | 2400 x 1200 dpi |
Nozzle Pitch | 600 dpi x 2 |
Line Accuracy | ±0.1 % or less User calibration is required. The printing environment and media must match those used for calibration. Required Paper: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. |
Minimum Ink Droplet Size | 4 pl |
Ink Capacity | Sales Ink: 160 ml / 330 ml / 700 ml Bundled Starter Ink: 330 ml |
Ink Type | Pigment Ink: Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimizer |
Printer Language | SG Raster (Swift Graphic Raster) PDF (Ver. 1.7) JPEG (Ver. JFIF 1.02) |
Standard Interfaces (Built-in) | USB A Port: USB Memory (Direct Print) USB B Port: Hi-Speed USB Full Speed (12 Mb/sec) High Speed (480 Mb/sec) Bulk Transfer Series B (4 pins) Gigabit Ethernet: IEEE 802.3 10 base-T IEEE 802.3u 100 base-TX/Auto-Negotiation IEEE 802.3ab 1000 base-T/Auto Negotiation IEEE 802.3x Full Duplex SNMP Canon-MIB HTTP TCP/IP (IPv4/ IPv6) Wireless LAN: IEEE802.11n/g/b WEP (64/128bit) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
Memory (Standard) | 3 GB |
Hard Disk | 500 GB (Encrypted HDD) |
Printing Speed
Plain Paper (A0) | 1 min 37 sec (Level 5) 2 min 49 sec (Standard) 5 min 35 sec (High) |
Heavyweight Coated Paper HG (A0) | 2 min 49 sec (Standard) 5 min 35 sec (High) 8 min 20 sec (Highest) |
Glossy Photo Paper HG 170 (A0) | 5 min 35 sec (Standard) 8 min 50 sec (High) 14 min 54 sec (Highest) |
Media Handling
Media Feed and Output (Single Roll) | Roll Paper: Front Load, Front Output Added Roll Paper: One Roll, Front Load, Front Output (Default) Cut Sheet: Front Load, Front Output (Manual Feed using Media Locking Lever) |
Media Width (Roll / Cut Sheet) | 152.4 ~ 1524 mm |
Media Thickness (Roll / Cut Sheet) | 0.07 ~ 0.8 mm |
Minimum Printable Length | Roll Paper: 101.6 mm (exclude Cloth and Canvas media) 200 mm (Cloth and Canvas media) Cut Sheet: 203.2 mm |
Maximum Printable Length | Roll Paper: 18 m (varies according to OS and application) Cut Sheet: 2133.6 mm (with stand) |
Maximum Outer Roll Diameter | 170 mm or less |
Borderless Printing Width (Roll Only) | Recommended: 515 mm (B2), 728 mm (B1), 1030 mm (B0), 594 mm (A1), 841 mm (A0), 10", 14", 17", 24", 36", 42", 44", 50", 54", 60" Printable: 257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6", 8", 12", 16", 20", 22", 30", 300 mm, 500 mm, 600 mm, 800 mm, 1000 mm and custom roll width (152.4 ~ 1524 mm) |
Dimensions & Weight
Physical Dimensions (W x D x H) & Weight (Include roll holder set, excluding ink and print head) | Main Unit + Stand + Basket: Approx. 1999 × 984 × 1168 mm (Basket Open) Approx. 1999 × 766 × 1168 mm (Basket Closed) Approx. 143 kg Main Unit + Roll Unit + Stand + Basket: Approx. 1999 × 984 × 1168 mm (Basket Open) Approx. 1999 × 766 × 1168 mm (Basket Closed) Approx. 171 kg |
Packaged Dimensions (W x D x H) & Weight | Main Unit + Stand + Pallet: Approx. 2227 x 915 x 1022 mm Approx. 212 kg Roll Unit: Approx. 2133 x 562 x 461 mm Approx. 42 kg |
Power & Operating Requirements
Power Supply | AC 100 - 240 V, 50 - 60 Hz |
Power Consumption | Printing: 97 W or less Sleep Mode: 2.0 W or Power Off: 0.3 W or less |
Operating Environment | Temperature: 15 ~ 30°C Humidity: 10 ~ 80% RH (no dew condensation) |
Acoustic Sound | [Acoustic Pressure] Operation: Approx. 48 dB (A) (Glossy paper - Image; Print Priority - Standard) Standby: Approx. 35 dB (A) or less [Acoustic Power] Operation: Approx. 66 dB or less (Glossy paper - Image; Print Priority - Standard) (Measured using ISO 7779 standard) |
Warranty: 01 Year Service Warranty
