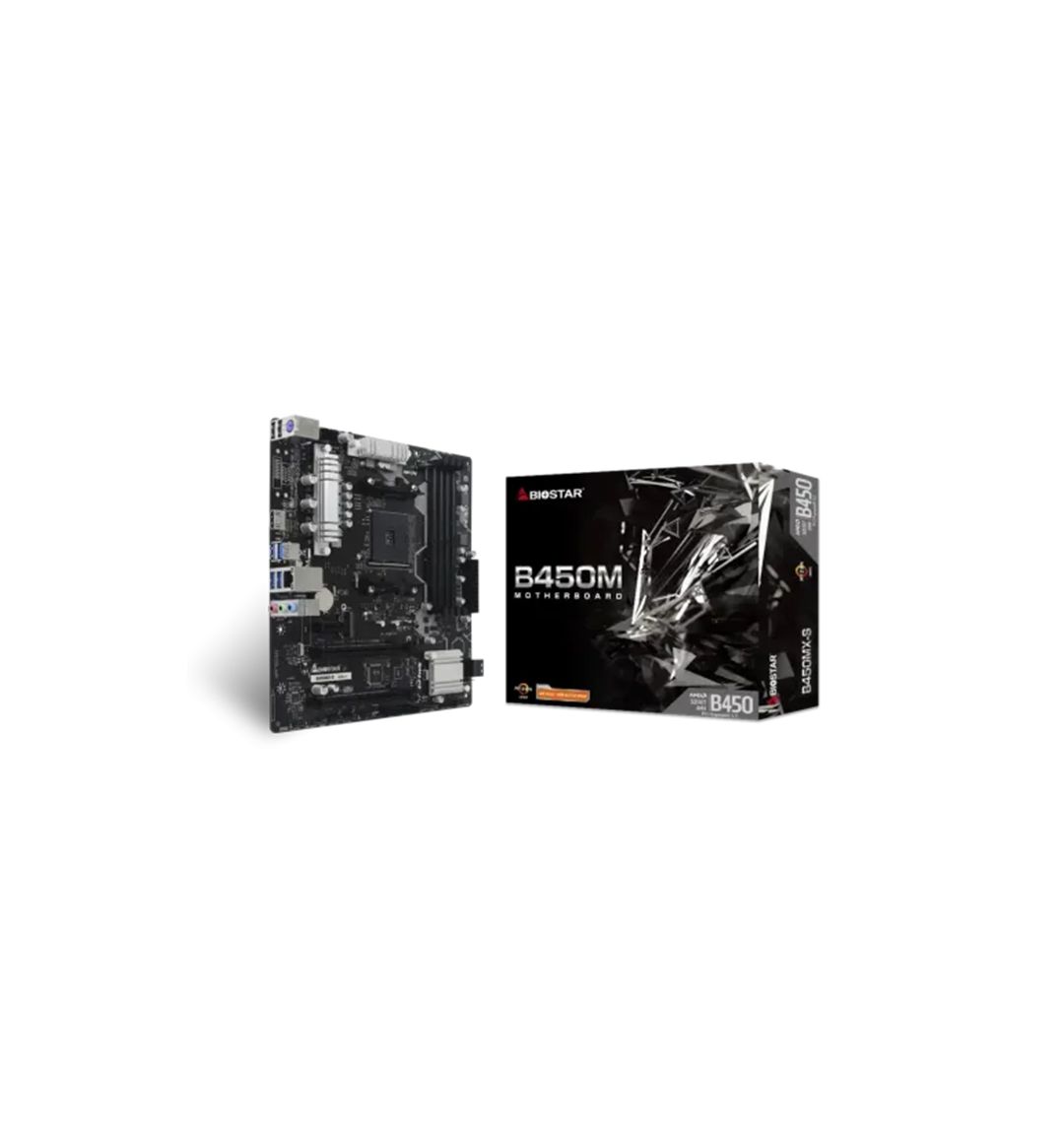

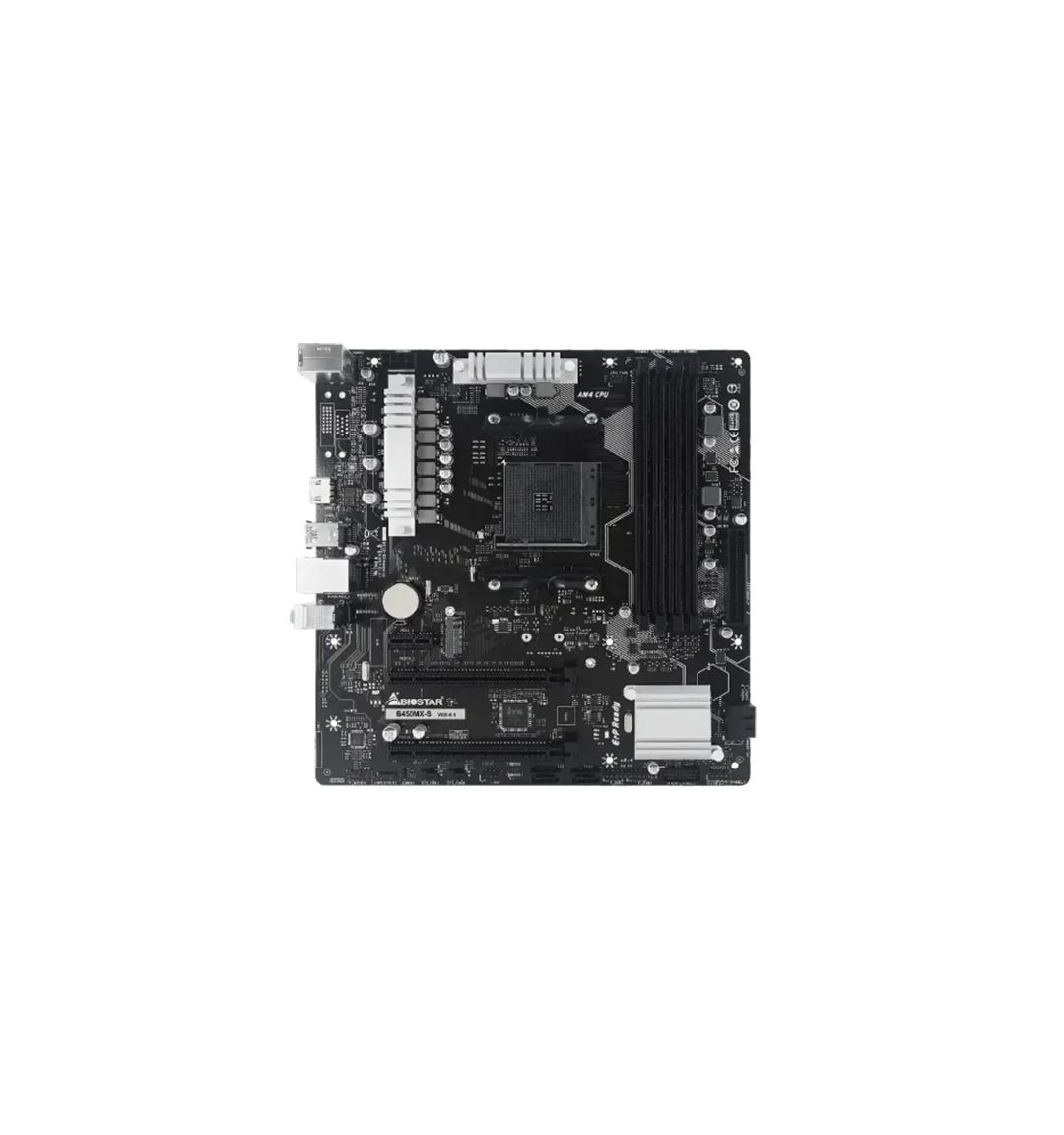

BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard
Please sign in so that we can notify you about a reply
BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard Specification
Basic Information | ||
Supported CPU | Socket AM4 supports AMD Ryzen APU / Ryzen CPU | |
Chipset | AMD B450 | |
Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L ) | |
Audio | ALC887 / 897 7.1 Channels, High Definition Audio, Hi-Fi (Front) | |
Expansion Slots | ||
PCI | AMD Processors 1 x PCIe 3.0 x16 Slot: Supports PCIe 3.0 x16 mode with AMD Ryzen™ processors. Supports PCIe 3.0 x8 mode AMD Ryzen™ with Radeon Vega Graphics processors. AMD Chipset 1 x PCIe 2.0 x16 Slot (x4 mode) 1 x PCIe 2.0 x1 Slot | |
M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module | |
Memory | ||
Type | DDR4 | |
Slots | 4 x DIMM | |
Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667 Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC) | |
Maximum Memory | Up to 128GB | |
Graphics | ||
Graphics | By CPU model Supports DX12 Supports HDCP | |
Connector & Ports | ||
HDMI | 1 x HDMI Port | |
USB (s) | 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports | |
LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability | |
Supported Storage | 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD Supports SATA III (6Gb/s) SSD * M.2 (M Key) Socket : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU is 16Gb/s. | |
Audio | 3 x Audio Jack | |
Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x S/PDIF out Connector 1 x COM Port Header | |
Others | ||
Bundled Software | BullGuard | |
Warranty Information | ||
Manufacturing Warranty | 3 Years Warranty | |
BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard
Overview of BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard
The Biostar B450MX-S DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed for gaming and workstation applications. With its AMD B450 chipset and support for AMD Ryzen APUs and CPUs, this motherboard offers reliable and efficient performance.
Key Features of BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard
- Supported CPU: Socket AM4 supports AMD Ryzen APU/Ryzen CPU
- Chipset: AMD B450
- Form Factor: Micro ATX (24.4cm x 24.4cm)
- Audio: ALC887/897, 7.1 Channels, High Definition Audio, Hi-Fi (Front)
- Expansion Slots:
- PCI: 1 x PCIe 3.0 x16 Slot, 1 x PCIe 2.0 x16 Slot (x4 mode), 1 x PCIe 2.0 x1 Slot
- M.2 Socket: Supports M.2 Type 2242/2260/2280 SSD module
- Memory:
- Type: DDR4
- Slots: 4 x DIMM
- Supported Memory: Dual Channel DDR4 1866/2133/2400/2667, Dual Channel DDR4 2933(OC)/3200(OC)/3600(OC)/4000(OC)
- Maximum Memory: Up to 128GB
- Graphics: Supports DX12, HDCP, By CPU model
- Connector & Ports:
- HDMI: 1 x HDMI Port
- USB: 4 x USB 3.2 (Gen1) Ports, 2 x USB 2.0 Ports
- LAN Port: Realtek RTL8111H, 10/100/1000 Mb/s auto negotiation, Half/Full duplex capability
Why Buy from Nexus?
Nexus offers genuine Biostar products, expert support, and a hassle-free shopping experience.
Who is it Good For?
This motherboard is ideal for:
- Gamers who want a reliable and high-performance motherboard
- Workstation users who require efficient and stable performance
- Those who want a high-quality motherboard with a 3-year warranty
Why is it Good?
The Biostar B450MX-S DDR4 AMD AM4 Micro ATX Motherboard offers:
- High-performance capabilities with AMD Ryzen APUs and CPUs
- Reliable and efficient performance with AMD B450 chipset
- High-quality audio with ALC887/897 and 7.1 Channels
- Durable construction with a 3-year warranty
Order Now
Buy the BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard from Nexus today and experience reliable and efficient performance!
What is the price of BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard in Bangladesh?
The latest price of BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard in Bangladesh is 8,500৳. You can buy the BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
