Biostar A520MH AMD 3rd And 4th Gen DDR4 Micro ATX Motherboard.
Please sign in so that we can notify you about a reply

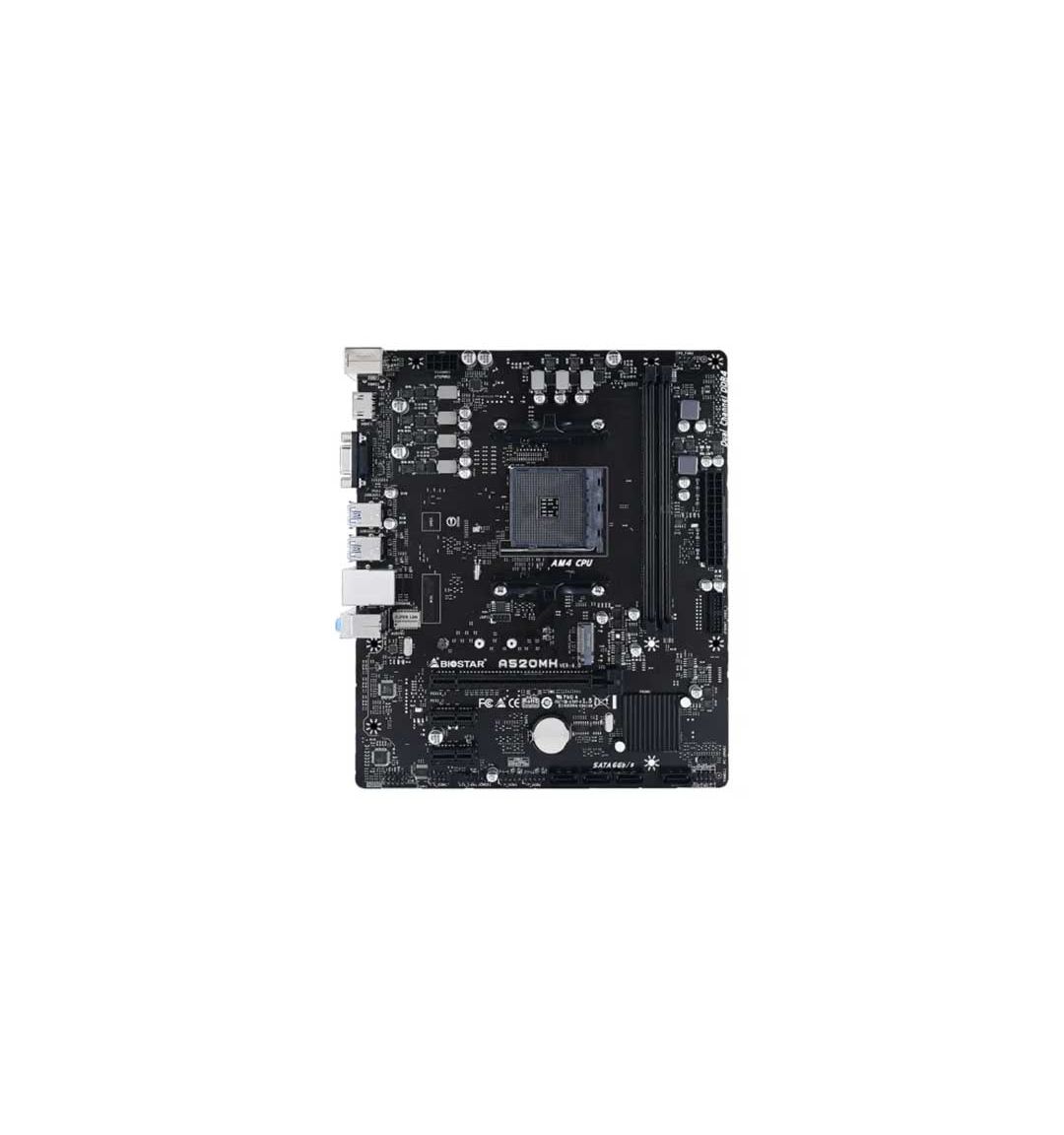

Biostar A520MH DDR4 Motherboard
SPECIFICATION
| Brand | Biostar |
| Model | Biostar A520MH |
| Chipset Brand | AMD |
| Chipset | AMD A520 |
| Generation | 3rd, 4th Gen |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm |
| Supported CPU | Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update |
| Memory Type | DDR4 |
| Memory | 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module 3rd Gen AMD Ryzen Processors (Matisse CPUs) Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 |
| Expansion Slot | AMD Ryzen 5000/3000 Series Processors 1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode) AMD Ryzen 5000 G/4000 G Series Processors 1 x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot |
| Supported Storage | Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x M.2 (M Key) Socket (M2_PCIE_SATA1): Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD AMD A520 Chipset 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 |
| LAN | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Supports Super LAN Surge Protection |
| Audio | ALC887 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
| USB Port | 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header |
| Rear I/O | 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x HDMI Port 1 x VGA Port 1 x LAN port 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports 3 x Audio Jack |
| Supported Operating System | Supports Windows 10(64bit) / 11(64bit) |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Biostar A520MH DDR4 Motherboard in Bangladesh, Because we sale only Biostar authorized original Motherboard. So you are at the right place to buy right Biostar Motherboard at the lowest price in Bangladesh.
Nexus Offers you Biostar A520MH DDR4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Biostar A520MH DDR4 Motherboard? and where you can get Biostar Motherboard at lowest price in BD? Yes, it is Nexus. Biostar A520MH DDR4 Motherboard now available at Nexus, So Don’t Think more to buy Biostar A520MH DDR4 Motherboard.
What is the price of Biostar A520MH AMD 3rd And 4th Gen DDR4 Micro ATX Motherboard In Bangladesh?
The latest price of Biostar A520MH DDR4 Motherboard in Bangladesh is 7300 Prices may vary due to your customization and product availability. You can buy Biostar A520MH DDR4 Motherboard from our website or visit our showroom.
