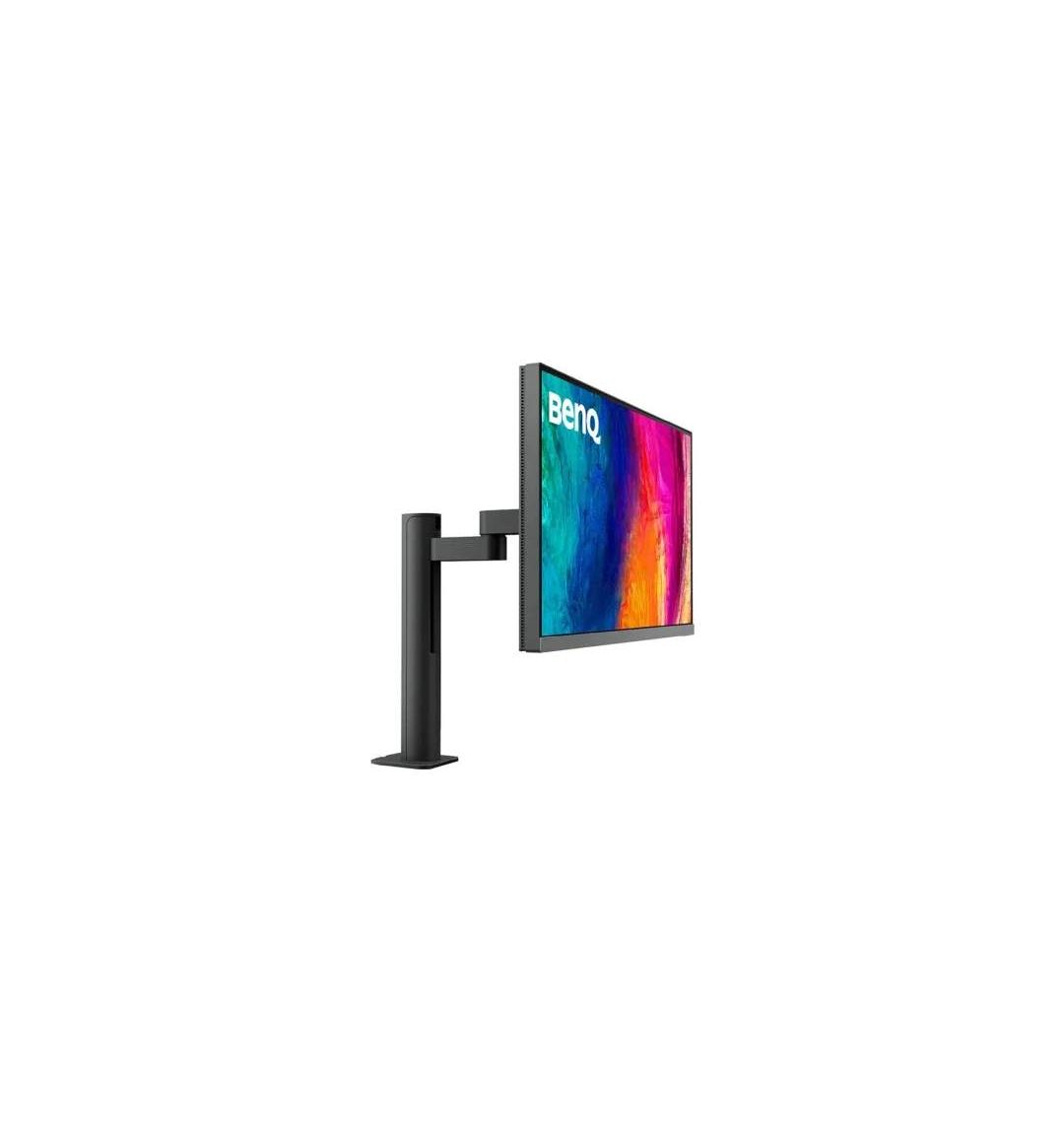

BenQ DesignVue PD2706UA 27" 4K Type-C Designer Monitor
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | BenQ DesignVue PD2706UA |
| Mounting Mechanism | Pre-installed Professional Ergonomic Clamp Arm (Ergo Arm) |
| Target Audience | Graphic Designers, Photographers, Architectural Illustrators, and Video Editors |
| Display Size | 27.0 inches (68.58 cm) |
| Panel Type | IPS (In-Plane Switching) |
| Backlight Technology | LED Backlight |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Pixel Density | 163 PPI |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (GtG) |
| Brightness | 350 nits (Typical) | 400 nits (Peak HDR Mode) |
| Contrast Ratio | 1200:1 (Static Contrast) |
| HDR Support | HDR10, VESA DisplayHDR 400 Certified |
| Color Support | 1.07 Billion Colors (10-bit color depth) |
| Color Gamut | 95% DCI-P3 | 100% sRGB | 100% Rec. 709 |
| Color Precision | Out-of-the-box Factory Calibrated, Delta E (avg) ≤ 3 |
| Color Certifications | Pantone Validated, Pantone SkinTone Validated, Calman Verified |
| Screen Coating | Anti-Glare, Matte |
| Audio Configuration | Built-in Stereo Speakers (2.5W x 2) |
| Upstream I/O Ports | 1 x USB Type-C (DP Alt Mode, Data, 90W Power Delivery) 1 x DisplayPort 1.4 1 x HDMI 2.0 1 x USB Type-B |
| Downstream/Hub Ports | 1 x USB Type-C Downstream 3 x USB 3.2 Gen 1 Type-A Downstream (5 Gbps) |
| Audio Connectivity | 1 x 3.5mm Headphone Output Jack |
| Workflow Tools | Hotkey Puck G2, Built-in KVM Switch, DualView Side-by-Side Profiles, ICCsync |
| Height Adjustment | Up to 150 mm (Via Ergo Arm tracks) |
| Pivot / Swivel / Tilt | Pivot: 90° | Swivel: 275° Left / 275° Right | Tilt: -5° to +30° |
| VESA Wall Mount | 100 x 100 mm (Detachable from Arm) |
| Power Consumption | 45W (Typical), 230W (Max under full downstream draw), <0.5W (Sleep) |
| Weight | 5.3 kg (Panel Only) / 9.1 kg (Total weight with Ergo Arm base) |
Product Description
The BenQ DesignVue PD2706UA is explicitly tailored for digital artists, designers, and video editors who need top-tier color accuracy paired with maximum desktop flexibility. Replacing the traditional heavy desktop stand, it features a heavy-duty Ergo Arm clamp mount with integrated cable channels, giving creators effortless control over 150mm of height adjustment, 275 degrees of horizontal swivel, and full portrait pivot rotation. Its premium 4K UHD IPS panel pushes a crisp 163 PPI density alongside individual factory calibration reaching a Delta E ≤ 3 color profile accuracy across 95% of the DCI-P3 wide color space.
Equipped with BenQ's custom AQCOLOR engineering and Uniformity Technology, the monitor secures corner-to-corner brightness alignment and holds official Pantone and Calman verifications. A centralized upstream USB-C port runs video signals, updates multi-peripheral data lines, and routes 90W of Power Delivery back to a connected MacBook or laptop over a single wire. Productivity is further enhanced by an integrated hardware KVM switch for multi-system mastery, a glare-fighting matte panel texture, and the included Hotkey Puck G2 controller for swift visual macro execution.
