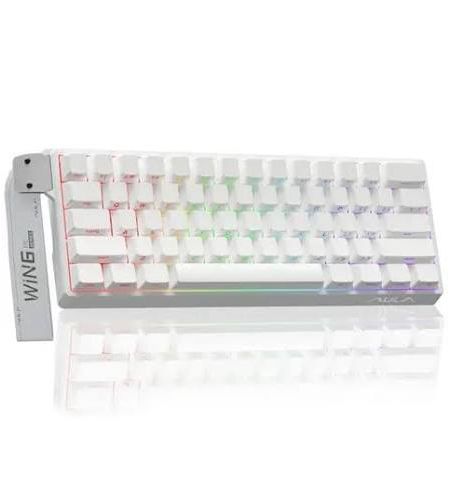

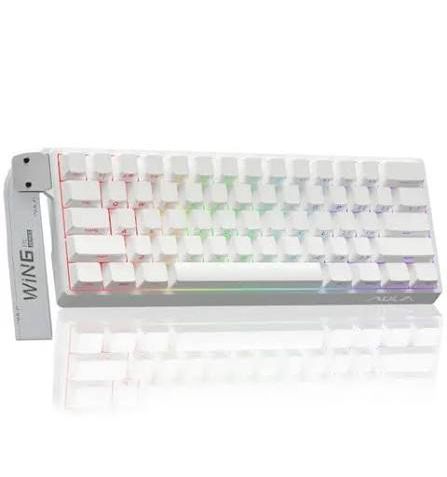

AULA WIN60HE Wired Magnetic Switch Gaming Keyboard White
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | AULA WIN60HE Wired Magnetic Switch Esports Gaming Keyboard |
| Product Model / SKU | WIN60HE |
| Brand / Manufacturer | AULA (Tarantula / Epomaker partner distribution) |
| Product Category | Ultra-Low Latency Hall Effect Magnetic Switch Esports Gaming Keyboard |
| Form Factor / Layout | 61-Key Ultra-Compact 60% ANSI Layout (Maximizes desk clearance for mouse travel) |
| Switch Technology | Custom Factory Pre-Lubed Hall Effect Magnetic Switches (Linear Electromagnetic Induction) |
| Hot-Swappable Support | Magnetic Switch Hot-Swappable PCB (Compatible with standard Gateron/Outemu dual-rail magnetic switches) |
| Switch Lifespan | Up to 100 Million Keystrokes |
| Adjustable Actuation Range | Ultra-Fine Step Adjustment from 0.1 mm to 4.0 mm (0.1 mm precision steps) |
| Rapid Trigger (RT) Feature | Continuous Rapid Trigger supported; dynamic reset/press range from 0.1 mm to 4.0 mm |
| Advanced Key Functions | DKS (Dynamic Keystroke - up to 4 actions per key press), Mod-Tap (MT), Toggle Key (TGL), Snap Tap / SOCD Support |
| Polling Rate & Response Time | Up to 8000 Hz (8K) Ultra-High Polling Rate / ~0.125 ms Ultra-Low Latency |
| Anti-Ghosting / Matrix | 100% Full N-Key Rollover (NKRO) with Anti-Ghosting across all keys |
| Internal Acoustic Structure | Multi-Layer Sound-Dampening Architecture (EVA Foam / Silicone Base Pad + Aluminum Plate) |
| Mounting Style | Integrated Tray/Plate Mount with structural acoustic dampening |
| Keycap Profile & Material | OEM / Cherry Profile Double-Shot PBT Keycaps (Oil-resistant, wear-proof legends) |
| Backlighting & Effects | 16.8 Million Color Dynamic RGB Backlighting with South-Facing LEDs and multiple onboard lighting presets |
| Connectivity Interface | Wired Detachable USB Type-C to USB-A (Shielded Braided Data Cable) |
| Web / Software Configuration | Dedicated Web Driver / Desktop GUI Utility for real-time actuation calibration, RT sensitivity, macro binding, and lighting |
| Chassis & Body Construction | High-Grade ABS Structural Casing with Weighted Metal Internal Stiffener |
| Dimensions (L × W × H) | Approx. 293 mm × 103 mm × 38 mm (11.53" × 4.05" × 1.49") |
| Product Weight | Approx. 580 g – 640 g (Excluding cable) |
| System & Platform Compatibility | Windows 11 / 10 / 8 / 7, macOS (Driver settings save directly to onboard memory for cross-platform play) |
| Package Contents | 1 × AULA WIN60HE Magnetic Switch Keyboard 1 × Detachable Braided USB-C to USB-A Cable 1 × 2-in-1 Keycap & Switch Puller 4 × Spare Magnetic Switches 1 × User Manual |
| Warranty Policy | 1 Year Official Manufacturer / Distributor Limited Warranty |
Product Description
The AULA WIN60HE Wired Magnetic Switch Gaming Keyboard is a tournament-focused, ultra-compact esports keyboard designed specifically for competitive FPS players (Valorant, Counter-Strike 2, Apex Legends, Overwatch 2) and rhythm gaming enthusiasts where input latency and movement precision are paramount. Featuring a minimalist 60% form factor with 61 keys, the WIN60HE eliminates dedicated arrow clusters and the navigation island to free up maximum desk surface for aggressive, low-sensitivity mouse swipes.
At the core of the keyboard's performance is its Hall Effect electromagnetic switch technology. Rather than using conventional mechanical switches with physical metal leaves that degrade over time and introduce debounce delay, the WIN60HE measures switch position via magnetic flux sensors. This architecture powers continuous Rapid Trigger (RT) functionality: keys reset instantly the fraction of a millimeter they are released and can be re-actuated immediately without waiting for a fixed mechanical reset barrier. Players can fine-tune every individual key's actuation point from 0.1 mm to 4.0 mm in 0.1 mm increments, enabling hair-trigger responsiveness for counter-strafing, stopping on a dime, and quick peeks.
Input transmission is backed by an ultra-fast 8000 Hz (8K) polling rate, sending updates to the PC every 0.125 milliseconds to ensure near-zero latency. Gamers can leverage advanced firmware features like Dynamic Keystroke (DKS) to assign multiple actions to different travel depths on a single key, Mod-Tap (MT), and Snap Tap/SOCD resolution. The switches are factory pre-lubricated for smooth, friction-free linear travel and are supported by an internal sound-dampening sandwich—including EVA/silicone foam layers and an aluminum positioning plate—to keep keystrokes feeling solid and acoustically pleasant.
The keyboard is fitted with double-shot PBT keycaps that resist surface shine and finger oil accumulation over intense gaming marathons. South-facing RGB LEDs deliver vibrant illumination through 16.8 million colors, fully manageable alongside switch actuation curves via an intuitive web driver or downloadable software. With onboard memory that saves personalized configurations directly to the board, a detachable braided USB Type-C cable, and an official 1-year warranty, the AULA WIN60HE delivers an ultra-responsive, competitive hardware edge in a clean, compact footprint.
