ASUS X870 AYW GAMING WIFI W AMD AM5 ATX Gaming Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS X870 AYW GAMING WIFI W Motherboard |
| Model & Part Number | X870 AYW GAMING WIFI W / 90MB1J80-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Body Color | White / Silver Metallic Armor on Light Grey Patterned PCB |
| Chipset | AMD X870 |
| Chipset Brand | AMD |
| Form Factor | ATX Form Factor (30.5 cm × 24.4 cm / 12.0 in × 9.6 in) |
| Generation | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket Support | AMD Socket AM5 |
| Memory Type | DDR5 Non-ECC & ECC Un-buffered DIMM (Dual-Channel Architecture, AMD EXPO Support, ASUS AEMP) |
| Memory Slot | 4 × DDR5 DIMM Slots |
| Max Memory | Up to 192 GB / 256 GB (Up to DDR5 8000+ MT/s OC) |
| M.2/SSD Expansion Slot | Total 3 × Onboard M.2 Slots + 4 × SATA 6Gb/s Ports: • M.2_1: PCIe 5.0 x4 (Key M, 2242/2260/2280 via CPU) • M.2_2: PCIe 4.0 x4 (Key M, 2242/2260/2280 via AMD X870 Chipset) • M.2_3: PCIe 4.0 x4 (Key M, 2242/2260/2280 via AMD X870 Chipset) |
| RGB Support | Yes (Aura Sync: 3 × Addressable Gen 2 Headers + 1 × 4-pin Aura RGB Header) |
| WiFi | Wi-Fi 6E (802.11ax, 2x2, 2.4/5/6GHz Bands) + Bluetooth 5.3 |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 × HDMI 2.1 Port (Supports up to 4K @ 60Hz) |
| DisplayPort (DP) | Supported via USB4 Type-C (Supports DisplayPort Video Output up to 4K @ 60Hz) |
| Thunderbolt | 1 × USB4 Port (40 Gbps, Type-C, Compatible with DisplayPort Alt Mode & Thunderbolt devices) |
| PCIe Expansion Slots | 1 × PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release 1 × PCIe 4.0 x16 Slot (supports x4 mode via Chipset) 1 × PCIe 4.0 x1 Slot |
| SATA & Storage Ports | 4 × SATA 6Gb/s Ports |
| RAID Support | AMD RAIDXpert2 Technology: RAID 0/1/10 (NVMe & SATA) |
| Wired Networking (LAN) | 1 × Realtek 2.5Gb Ethernet (2.5G RJ45) with ASUS LANGuard |
| Audio Solution | Realtek 7.1 Surround Sound High Definition Audio CODEC (Audio Shielding, Dedicated Audio PCB Layers, Premium Audio Capacitors) |
| Diagnostic & Display | Q-LED Indicators (CPU, DRAM, VGA, Boot Device status) |

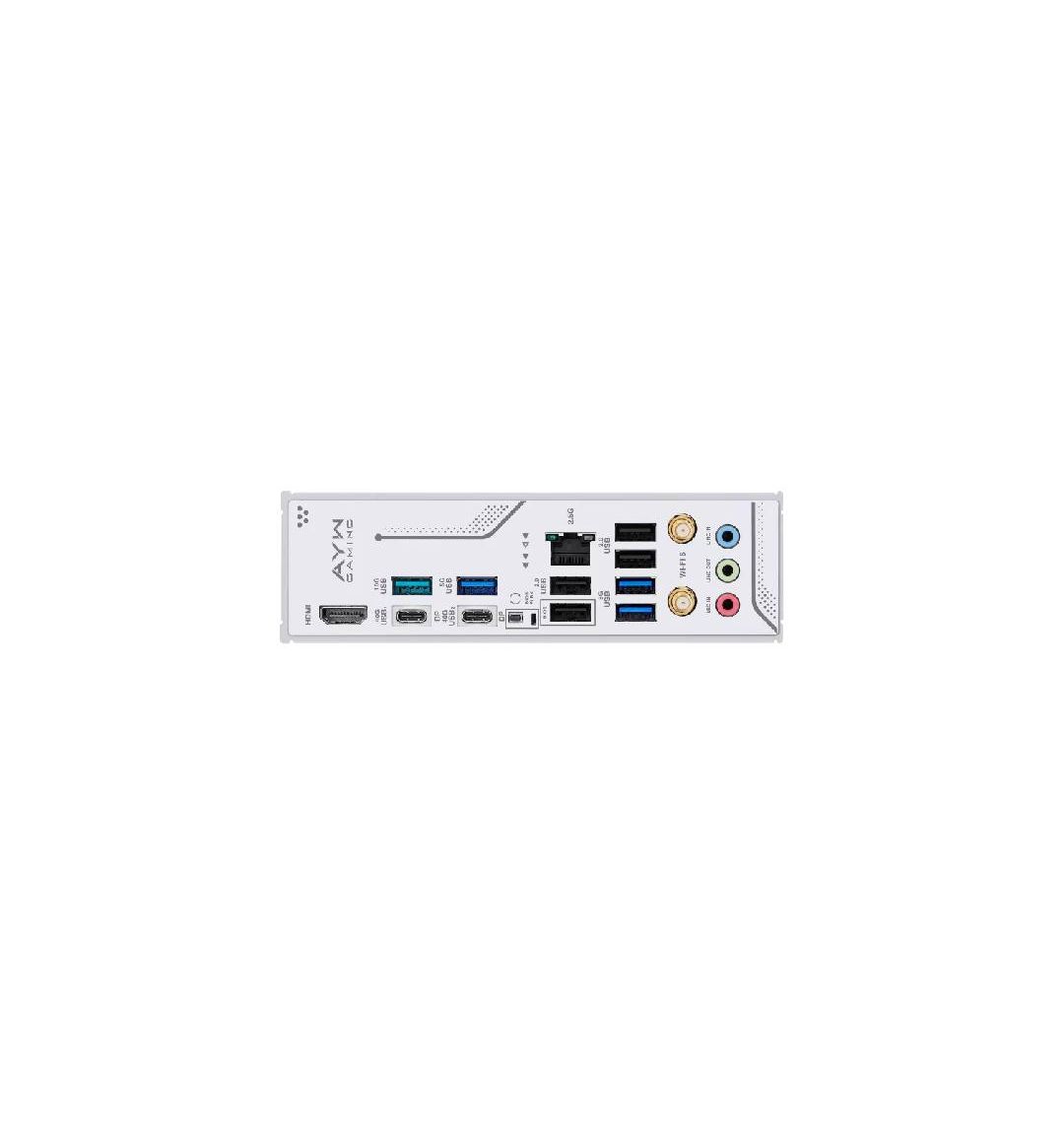

| Back Panel USB Ports | 1 × USB4 (40 Gbps, Type-C) 1 × USB 10Gbps (Type-A) 2 × USB 5Gbps (Type-A) 4 × USB 2.0 (Type-A) 1 × BIOS FlashBack Button |
| Front Panel USB Headers | 1 × USB 10Gbps Type-C Connector 1 × USB 5Gbps Header (Supports 2 additional ports) 2 × USB 2.0 Headers (Supports 4 additional ports) |
| Cooling & VRM Architecture | 12(80A)+2(80A)+1 Power Stages with Large Silver/White Aluminum VRM Heatsinks, High-Conductivity Thermal Pads, and Dedicated M.2 Heatsinks |
| Intelligent & DIY Features | PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, BIOS FlashBack, SafeSlot Core+, Stainless Steel Back I/O |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit) |
| Target Workload Applications | All-White / Silver Themed PC Gaming, Esports, Streaming, Daily Multitasking, Content Creation |
| Package Contents | 1 × ASUS X870 AYW GAMING WIFI W Motherboard 1 × ASUS Wi-Fi White Directional Antenna 2 × SATA 6Gb/s Cables 1 × M.2 Screw Package / Rubber Pads 1 × User Documentation |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description
The ASUS X870 AYW GAMING WIFI W is an ATX gaming motherboard engineered to deliver modern performance and clean styling for AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 platform. Designed around an eye-catching silver-and-white armor aesthetic paired with a light patterned PCB, this board offers a dedicated option for white-themed desktop configurations while incorporating PCIe 5.0 throughput, USB4 bandwidth, and simplified DIY assembly mechanisms.
Processor stability and power delivery are driven by a 12(80A)+2(80A)+1 teamed power-stage VRM architecture accompanied by dual ProCool 8-pin power connectors and premium alloy chokes. Thermal regulation is maintained by enlarged silver aluminum heatsinks shielding the power delivery zones, high-conductivity thermal pads, and dedicated M.2 heatspreaders to keep solid-state drives operating without thermal throttling. Across 4 DDR5 DIMM slots, the motherboard supports high-density memory modules up to 256 GB at overclocked frequencies of 8000+ MT/s via AMD Extended Profiles for Overclocking (EXPO) and ASUS AEMP profiles.
Graphics and storage connectivity feature high-bandwidth pathways, starting with a primary PCIe 5.0 x16 SafeSlot equipped with the tool-free PCIe Slot Q-Release mechanism for straightforward GPU installation and removal. Storage expansion accommodates three onboard M.2 slots (one primary slot wired for PCIe 5.0 x4 and two operating at PCIe 4.0 x4) alongside four SATA 6Gb/s ports for traditional storage drives.
System networking is anchored by Wi-Fi 6E (802.11ax) utilizing a matching white directional antenna, alongside a Realtek 2.5-Gigabit Ethernet port for stable, low-latency wired connections. The rear panel provides high-speed versatility with an onboard USB4 40Gbps Type-C port supporting fast data throughput and external display output, complemented by a front-panel USB 10Gbps Type-C header. With high-definition 7.1 surround sound isolation and standard 3-year warranty protection, the ASUS X870 AYW GAMING WIFI W delivers a balanced, aesthetically cohesive AM5 gaming platform.
