ASUS TUF GAMING X870-PLUS WIFI AMD AM5 ATX Gaming Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS TUF GAMING X870-PLUS WIFI Gaming Motherboard |
| Model & Part Number | TUF GAMING X870-PLUS WIFI / 90MB1IU0-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Body Color | Black / Industrial Charcoal Grey with TUF Yellow Accents |
| Chipset | AMD X870 |
| Chipset Brand | AMD |
| Form Factor | ATX Form Factor (30.5 cm × 24.4 cm / 12.0 in × 9.6 in) |
| Generation | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket Support | AMD Socket AM5 |
| Memory Type | DDR5 Non-ECC & ECC Un-buffered DIMM (Dual-Channel Architecture, AMD EXPO Support) |
| Memory Slot | 4 × DDR5 DIMM Slots |
| Max Memory | Up to 192 GB / 256 GB (Up to DDR5 8000+ MT/s OC) |
| M.2/SSD Expansion Slot | Total 4 × Onboard M.2 Slots + 2 × SATA 6Gb/s Ports: • M.2_1: PCIe 5.0 x4 (Key M, 2280 via CPU) • M.2_2: PCIe 5.0 x4 (Key M, 2280 via CPU) • M.2_3: PCIe 4.0 x4 (Key M, 2280 via AMD X870 Chipset) • M.2_4: PCIe 4.0 x4 (Key M, 2242/2260/2280/22110 via AMD X870 Chipset) |
| RGB Support | Yes (Aura Sync: 3 × Addressable Gen 2 Headers + Integrated Edge TUF RGB Lighting) |
| WiFi | Wi-Fi 7 (802.11be, 2x2, 2.4/5/6GHz, 160MHz Bandwidth, up to 2.9 Gbps) + Bluetooth 5.4 |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 × HDMI 2.1 Port (Supports up to 4K @ 60Hz) |
| DisplayPort (DP) | Supported via USB4 Type-C (Supports DisplayPort 1.4a Video Output up to 4K @ 60Hz) |
| Thunderbolt | 2 × USB4 Ports (40 Gbps, Type-C, Compatible with DisplayPort Alt Mode & Thunderbolt devices) |
| PCIe Expansion Slots | 1 × PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release 1 × PCIe 4.0 x16 Slot (supports x4 mode via Chipset) |
| SATA & Storage Ports | 2 × SATA 6Gb/s Ports |
| RAID Support | AMD RAIDXpert2 Technology: RAID 0/1/10 (NVMe & SATA; RAID 5 supported with Ryzen 9000 CPUs) |
| Wired Networking (LAN) | 1 × Realtek 2.5Gb Ethernet (2.5G RJ45) with TUF LANGuard |
| Audio Solution | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC (120 dB SNR Playback, 113 dB SNR Recording, Audio Shielding) |
| Diagnostic & Display | Q-LED Indicators (CPU, DRAM, VGA, Boot Device status) |

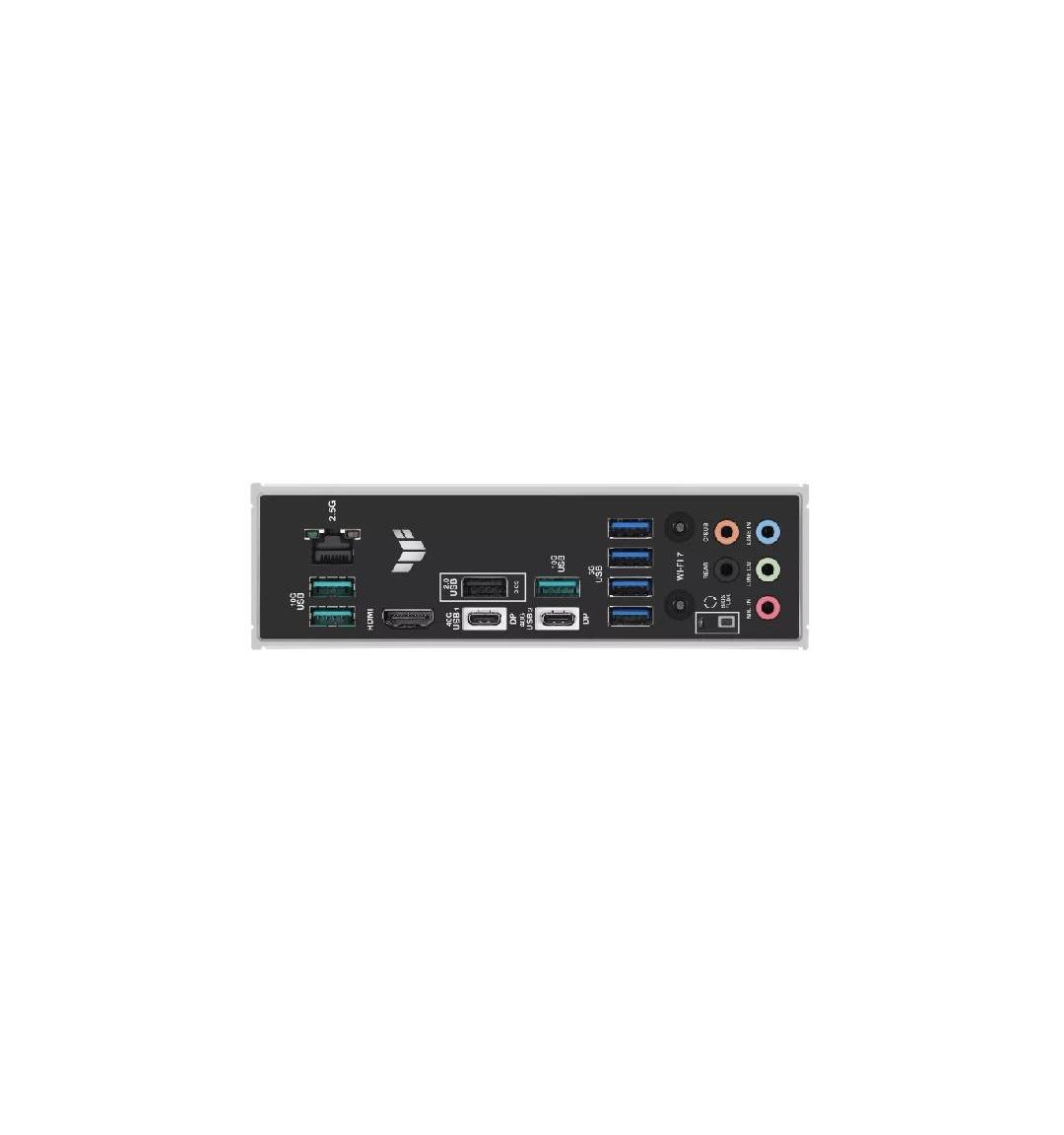

| Back Panel USB Ports | 2 × USB4 (40 Gbps, Type-C) 3 × USB 10Gbps (3 × Type-A) 4 × USB 5Gbps (4 × Type-A) 1 × USB 2.0 (1 × Type-A) 1 × BIOS FlashBack Button |
| Front Panel USB Headers | 1 × USB 20Gbps Type-C Connector (Supports Quick Charge 4+ / PD Fast-charge up to 30W with USB Wattage Watcher) 1 × USB 5Gbps Header (Supports 2 additional ports) 2 × USB 2.0 Headers (Supports 4 additional ports) |
| Cooling & VRM Architecture | 16(80A)+2(80A)+1 Power Stages with Enlarged Heatsinks, 8-layer PCB, Multi-layer M.2 Heatsinks & Backplates |
| TUF Protection & Features | Military-grade TUF Chokes & Capacitors, ESD Guards, TUF LANGuard, SafeSlot Core+, Stainless Steel Back I/O |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit) |
| Target Workload Applications | Heavy Gaming Sessions, Long-term Endurance Builds, Content Creation, High-Speed NVMe Storage Arrays |
| Package Contents | 1 × TUF GAMING X870-PLUS WIFI Motherboard 1 × ASUS Wi-Fi Q-Antenna 2 × SATA 6Gb/s Cables 2 × M.2 Rubber Packages 1 × Screw Package for M.2 SSD 1 × TUF GAMING Sticker Pack |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description
The ASUS TUF GAMING X870-PLUS WIFI is an endurance-focused ATX gaming motherboard engineered to deliver stable power and long-term durability for AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. Built with military-grade components, an industrial charcoal colorway, and subtle Aura Sync RGB edge accents, this motherboard combines heavy electrical shielding, high-speed PCIe 5.0 lanes, and user-friendly DIY features.
Stable power delivery under marathon gaming loads is anchored by a 16(80A)+2(80A)+1 teamed power-stage VRM layout utilizing certified military-grade TUF chokes, 5K black metallic capacitors, and dual 8-pin ProCool power connectors. An 8-layer PCB design improves overall signal integrity and heat dissipation, complemented by large aluminum VRM heat sinks and dedicated M.2 thermal plates. Across 4 DDR5 DIMM slots, the board supports high-capacity kits up to DDR5 8000+ MT/s (OC) through AMD Extended Profiles for Overclocking (EXPO) and ASUS AEMP profiles.
Graphics and storage connectivity are powered by PCIe 5.0 infrastructure. The primary PCIe 5.0 x16 SafeSlot incorporates the PCIe Slot Q-Release button for quick, tool-free graphics card swaps. Storage expansion accommodates four onboard M.2 slots (two running at PCIe 5.0 x4 and two at PCIe 4.0 x4) alongside two SATA 6Gb/s ports for mass data drives.
High-speed networking is driven by integrated Wi-Fi 7 (802.11be) with 160 MHz channel width and directional Q-Antenna hardware, paired with a Realtek 2.5-Gigabit Ethernet port protected by TUF LANGuard. Rear connectivity features dual USB4 40Gbps Type-C ports capable of high-definition display output, while the internal front header provides USB 20Gbps Type-C connectivity with 30W Power Delivery and live USB Wattage Watcher monitoring. Completed by Realtek ALC1220P 7.1 HD surround audio and backed by a 3-year warranty, the ASUS TUF GAMING X870-PLUS WIFI delivers a dependable foundation for rugged AM5 gaming builds.
