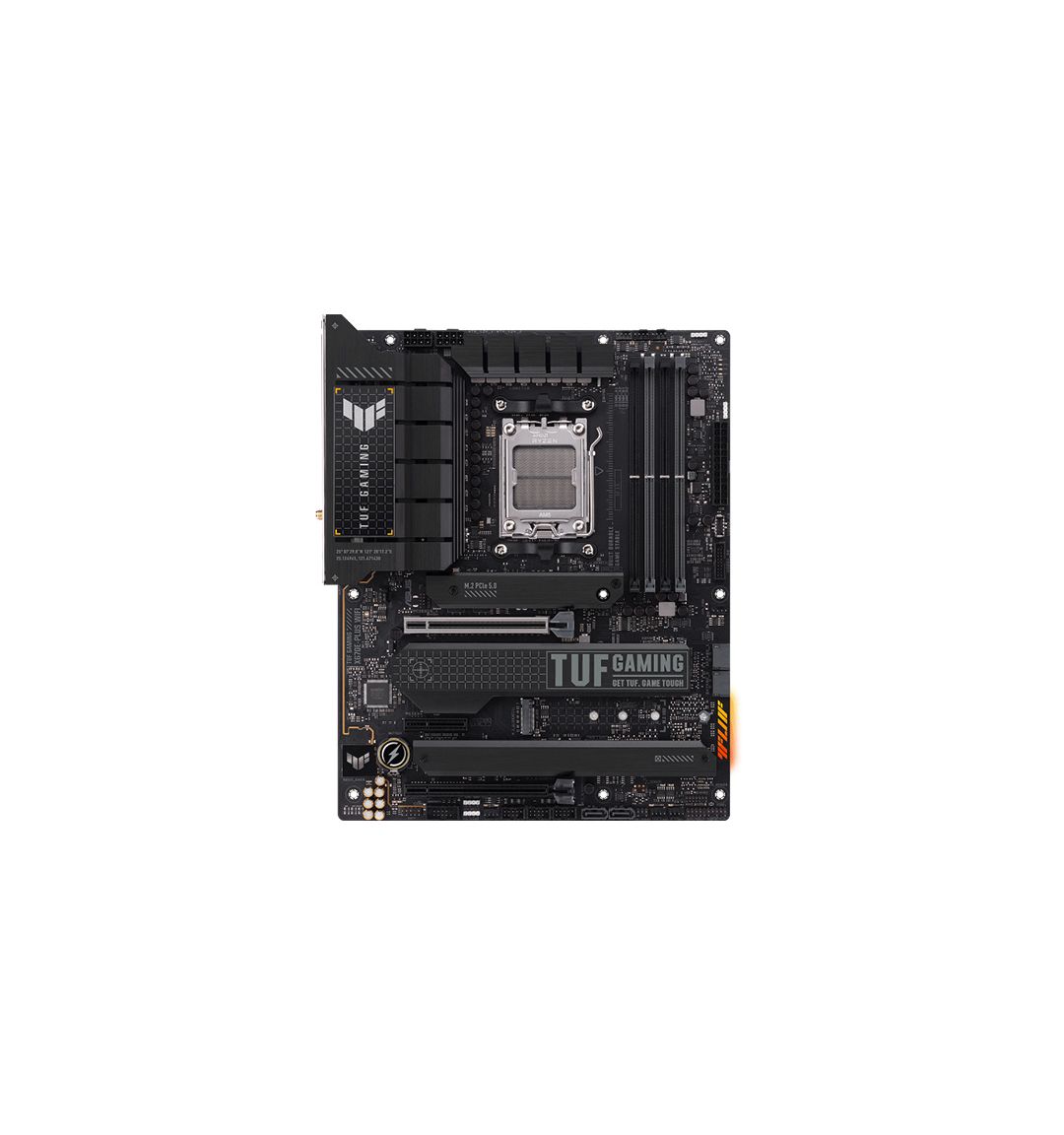

ASUS TUF GAMING X670E-PLUS WIFI DDR5 Motherboard
SPECIFICATION
| Brand | ASUS |
| Model | ASUS TUF GAMING X670E-PLUS WIFI |
| Chipset Brand | AMD |
| Chipset | AMD X670 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Memory Type | DDR5 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II |
| Graphics | 1 x DisplayPort 1 x HDMI port |
| Expansion Slot | AMD Ryzen 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
| USB | Rear USB (Total 10 ports) |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Special Features | TUF PROTECTION |
| Software Features | ASUS Exclusive Software Armoury Crate |
| Supported Operating System | Support for Windows 10 64-bit Support for Windows 11 64-bit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy ASUS TUF GAMING X670E-PLUS WIFI Motherboard in Bangladesh, Because we sale only ASUS authorized original Motherboard. So you are at the right place to buy right ASUS Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASUS TUF GAMING X670E-PLUS WIFI Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of ASUS TUF GAMING X670E-PLUS WIFI Motherboard? and where you can get ASUS Motherboard at lowest price in BD? Yes, it is Nexus. ASUS TUF GAMING X670E-PLUS WIFI Motherboard now available at Nexus, So Don’t Think more to buy ASUS TUF GAMING X670E-PLUS WIFI Motherboard.
