ASUS TUF GAMING B760M PLUS WIFI D4 13th & 12th Gen DDR4 mATX Motherboard
ASUS TUF GAMING B760M PLUS WIFI D4 DDR4 Motherboard
SPECIFICATION
Brand | ASUS |
Model | ASUS TUF GAMING B760M PLUS WIFI D4 |
Chipset Brand | Intel |
Chipset | Intel B760 Chipset |
Form Factor | mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Memory Type | DDR4 |
Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/ 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 4 x DIMM, Max. 192GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
Graphics | 1 x DisplayPort 1 x HDMI port |
Expansion Slot | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot |
Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
USB Port | Rear USB (Total 8 ports) |

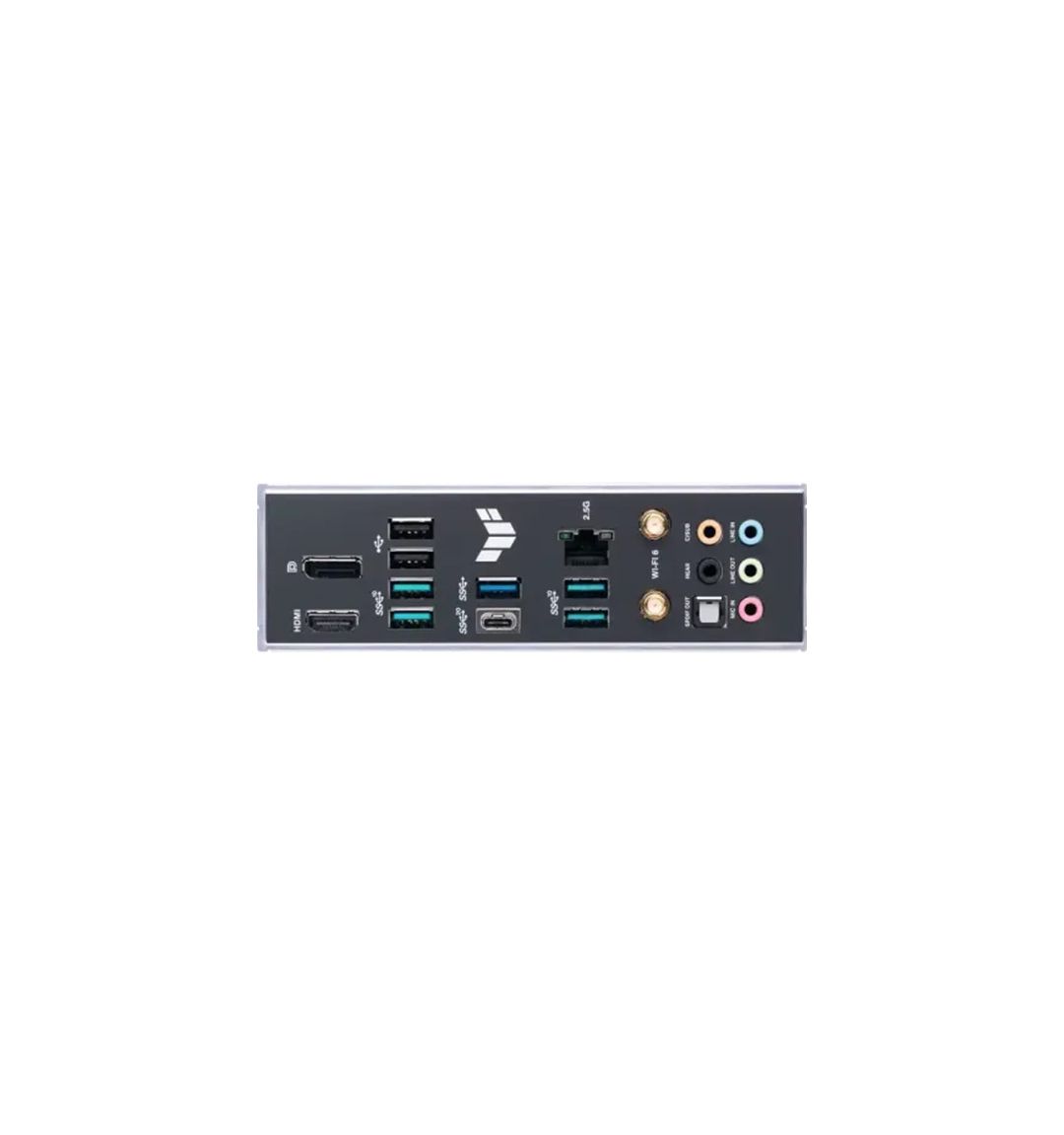

Back Panel I/O Ports | 1. 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2. 4 x USB 3.2 Gen 2 ports (4 x Type-A) 3. 1 x USB 3.2 Gen 1 port (1 x Type-A) 4. 2 x USB 2.0 ports (2 x Type-A) 5. 1 x DisplayPort 6. 1 x HDMI port 7. 1 x Wi-Fi Module 8. 1 x Realtek 2.5Gb Ethernet port 9. 5 x Audio jacks 10. 1 x Optical S/PDIF out port |
Internal I/O Connectors | I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Warranty Information | |
Warranty | 3 years |
Nexus will be your first choice If you want to buy ASUS TUF GAMING B760M PLUS WIFI D4 Motherboard in Bangladesh, Because we sale only ASUS authorized original Motherboard. So you are at the right place to buy right ASUS Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASUS TUF GAMING B760M PLUS WIFI D4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of ASUS TUF GAMING B760M PLUS WIFI D4 Motherboard? and where you can get ASUS Motherboard at lowest price in BD? Yes, it is Nexus. ASUS TUF GAMING B760M PLUS WIFI D4 Motherboard now available at Nexus, So Don’t Think more to buy ASUS TUF GAMING B760M PLUS WIFI D4 Motherboard.
