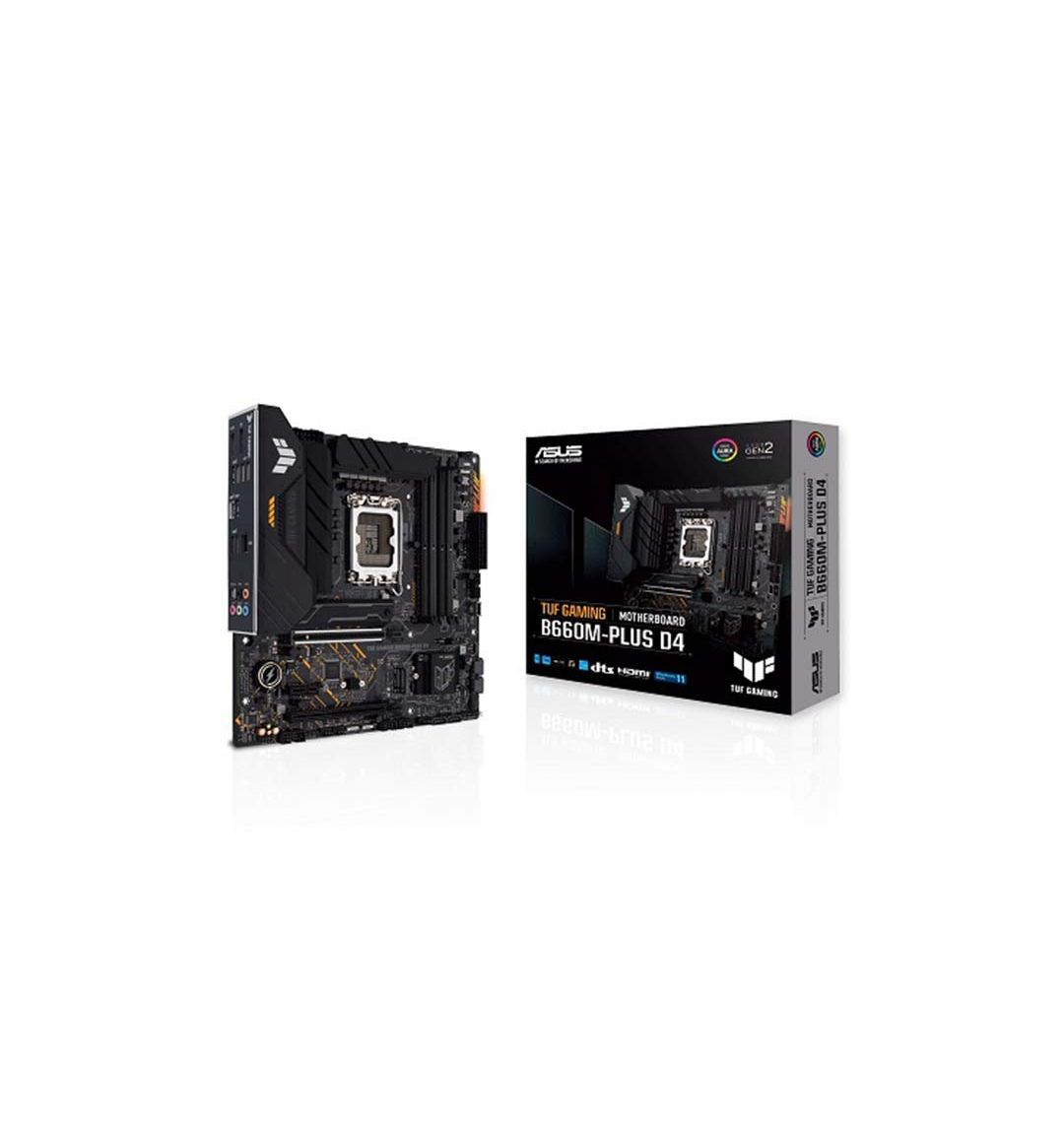

ASUS TUF GAMING B660M-PLUS D4 mATX Motherboard
Save 5%
Please sign in so that we can notify you about a reply
ASUS TUF GAMING B660M-PLUS D4 Motherboard
SPECIFICATION
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio Port | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Audio Features – Audio Shielding – Power pre-regulator reduces power input noise to ensure consistent performance – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers |
| Chipset | B660 |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Form Factor | m-ATX |
| Graphics | 1 x DisplayPort 1 x HDMI® port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Maximum Memory | 128 |
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| PCI | |
| Memory Slots | 4 |
| Memory Type | DDR4 |
| BIOS | 128 Mb Flash ROM, |
| USB Ports | Total 8 ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB:Total 7 ports Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Warranty : 03 Years
Nexus will be your first choice If you want to buy ASUS TUF GAMING B660M-PLUS D4 Motherboard in Bangladesh, Because we sale only Asus authorized original Motherboard. So you are at the right place to buy right Asus Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASUS TUF GAMING B660M-PLUS D4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of ASUS TUF GAMING B660M-PLUS D4 Motherboard? and where you can get Asus Motherboard at lowest price in BD? Yes, it is Nexus. ASUS TUF GAMING B660M-PLUS D4 Motherboard now available at Nexus, So Don’t Think more to buy ASUS TUF GAMING B660M-PLUS D4 Motherboard.
Brand:
Asus
