ASUS ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Gaming Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS ROG STRIX X870E-H GAMING WIFI7 Motherboard |
| Model & Part Number | ROG STRIX X870E-H GAMING WIFI7 / 90MB1LA0-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Body Color | Black / Dark Gunmetal |
| Chipset | AMD X870E |
| Chipset Brand | AMD |
| Form Factor | ATX Form Factor (30.5 cm × 24.4 cm / 12.0 in × 9.6 in) |
| Generation | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket Support | AMD Socket AM5 |
| Memory Type | DDR5 Non-ECC & ECC Un-buffered DIMM (Dual-Channel Architecture, AMD EXPO Support, NitroPath DRAM Technology) |
| Memory Slot | 4 × DDR5 DIMM Slots |
| Max Memory | Up to 256 GB (Up to DDR5 8000+ MT/s OC) |
| M.2/SSD Expansion Slot | Total 4 × Onboard M.2 Slots + 4 × SATA 6Gb/s Ports: • M.2_1: PCIe 5.0 x4 (Key M, type 2242/2260/2280 via CPU) • M.2_2: PCIe 5.0 x4 (Key M, type 2280/22110 via CPU) • M.2_3: PCIe 4.0 x4 (Key M, type 2280 via AMD X870E Chipset) • M.2_4: PCIe 4.0 x4 (Key M, type 2280 via AMD X870E Chipset) |
| RGB Support | Yes (Aura Sync: 3 × Addressable Gen 2 Headers + Integrated ROG Aura Lighting on I/O Shroud) |
| WiFi | Wi-Fi 7 (Realtek RTL8922AE, 2x2, 2.4/5/6GHz, 160MHz Bandwidth) + Bluetooth 5.4 |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 × HDMI 2.1 Port (Supports up to 4K @ 60Hz) |
| DisplayPort (DP) | Supported via USB4 Type-C (Supports DisplayPort 1.4a Video Output up to 4K @ 60Hz) |
| Thunderbolt | 2 × USB4 Ports (40 Gbps, Type-C, Compatible with DisplayPort Alt Mode & Thunderbolt devices) |
| PCIe Expansion Slots | 1 × PCIe 5.0 x16 SafeSlot (supports x16 mode with Ryzen 9000/7000) 1 × PCIe 4.0 x16 Slot (supports x4 mode via Chipset) |
| SATA & Storage Ports | 4 × SATA 6Gb/s Ports |
| RAID Support | AMD RAIDXpert2 Technology: RAID 0/1/10 (NVMe & SATA) |
| Wired Networking (LAN) | 1 × Realtek 5Gb Ethernet (5G RJ45) with ASUS LANGuard |
| Audio Solution | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC with Savitech SV3H712 AMP (120 dB SNR Playback, 113 dB SNR Recording, Optical S/PDIF Out) |
| Diagnostic & Display | Q-LED Indicators (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Start Button |

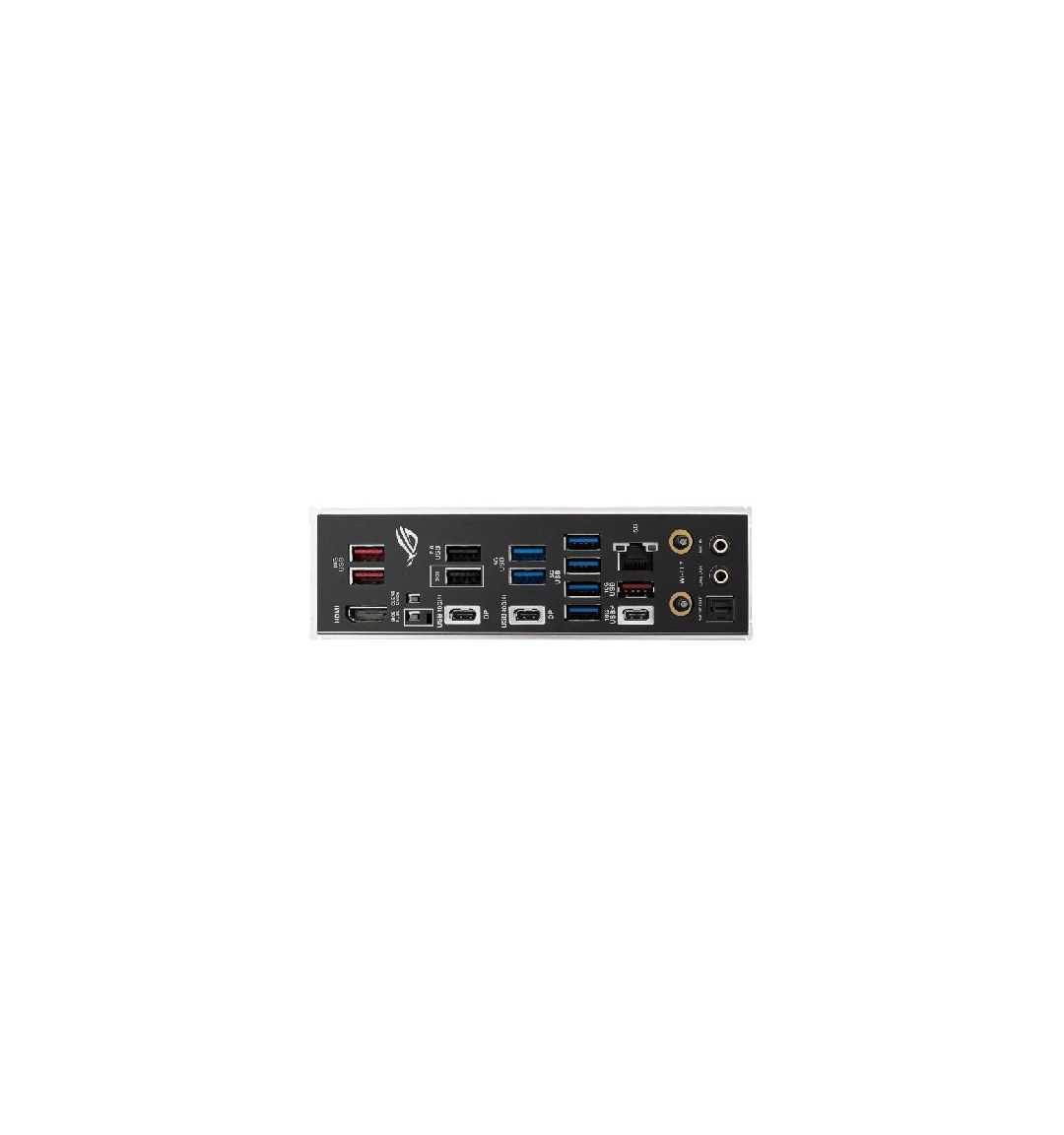

| Back Panel USB Ports | 2 × USB4 (40 Gbps, Type-C) 4 × USB 10Gbps (3 × Type-A + 1 × Type-C with up to 30W PD/PPS Fast-charge) 6 × USB 5Gbps (Type-A) 2 × USB 2.0 (Type-A) 1 × BIOS FlashBack Button 1 × Clear CMOS Button |
| Front Panel USB Headers | 1 × USB 20Gbps Type-C Connector 1 × USB 5Gbps Header (Supports 2 additional ports) 2 × USB 2.0 Headers (Supports 4 additional ports) |
| Cooling & VRM Architecture | 16(80A)+2(80A)+1(80A) Power Stages with Heavy Integrated I/O Cover & VRM Heatsinks, Connected Heatpipe, Multi-layer M.2 Heatsinks & Backplates |
| Overclocking & Intelligent Controls | AI Overclocking, Dynamic OC Switcher, Core Flex, AI Cooling II, ASUS AI Advisor, DIMM Fit / DIMM Fit Pro |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit) |
| Target Workload Applications | High-Performance AAA Gaming, Live Streaming, High-Speed NVMe Workflows, Content Creation |
| Package Contents | 1 × ROG STRIX X870E-H GAMING WIFI7 Motherboard 1 × ASUS Wi-Fi Q-Antenna 2 × SATA 6Gb/s Cables M.2 Q-Latch, M.2 Q-Release, and Thermal Pad Accessories 1 × ROG Strix Sticker Pack |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description
The ASUS ROG STRIX X870E-H GAMING WIFI7 is a high-performance ATX gaming motherboard engineered to deliver seamless power and connectivity for AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. Featuring a stealth dark aesthetic with integrated Aura Sync RGB accents across the I/O shroud, this board brings together high-speed PCIe 5.0 lanes, next-generation wireless networking, and intuitive ASUS EZ DIY mechanisms.
Demanding gaming sessions and continuous multi-threaded compute workloads are supported by a 16(80A)+2(80A)+1(80A) teamed power-stage VRM architecture fueled by dual ProCool II 8-pin power connectors. Thermal regulation is maintained by dual extruded aluminum VRM heatsinks interconnected with an integrated heatpipe, high-conductivity thermal pads, and dedicated full-coverage M.2 heatspreaders. Across 4 DDR5 DIMM slots with NitroPath DRAM technology, the board accommodates up to 256 GB of memory at overclocked speeds beyond 8000+ MT/s via AMD Extended Profiles for Overclocking (EXPO) and ASUS AEMP profiles.
Graphics and storage are driven by high-bandwidth PCIe pathways, starting with a primary PCIe 5.0 x16 SafeSlot equipped with the tool-free PCIe Slot Q-Release mechanism. Storage capabilities feature four onboard M.2 slots—two operating at PCIe 5.0 x4 speeds and two at PCIe 4.0 x4—alongside four SATA 6Gb/s ports for extensive high-speed library installations.
Connectivity is anchored by next-generation Wi-Fi 7 (Realtek RTL8922AE) with 160 MHz channel width support and directional Q-Antenna hardware, paired with a Realtek 5-Gigabit Ethernet port for low-latency wired networking. Rear I/O features dual USB4 40Gbps Type-C ports capable of driving high-resolution 4K/8K displays, alongside four USB 10Gbps ports (including a Type-C port capable of up to 30W PD/PPS fast charging with live USB Wattage Watcher monitoring). Backed by a Realtek ALC1220P audio codec with a Savitech SV3H712 headphone amplifier and a 3-year warranty, the ROG STRIX X870E-H GAMING WIFI7 delivers a reliable foundation for AM5 gaming systems.
