ASUS ROG STRIX X870-F GAMING WIFI AMD AM5 ATX Gaming Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS ROG STRIX X870-F GAMING WIFI Gaming Motherboard |
| Model & Part Number | ROG STRIX X870-F GAMING WIFI / 90MB1IT0-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Body Color | Black / Dark Gunmetal |
| Chipset | AMD X870 |
| Chipset Brand | AMD |
| Form Factor | ATX Form Factor (30.5 cm × 24.4 cm / 12.0 in × 9.6 in) |
| Generation | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket Support | AMD Socket AM5 |
| Memory Type | DDR5 Non-ECC & ECC Un-buffered DIMM (Dual-Channel Architecture, AMD EXPO Support) |
| Memory Slot | 4 × DDR5 DIMM Slots |
| Max Memory | Up to 256 GB (Up to DDR5 8000+ MT/s OC) |
| M.2/SSD Expansion Slot | Total 4 × Onboard M.2 Slots + 2 × SATA 6Gb/s Ports: • M.2_1: PCIe 5.0 x4 (Key M, 2242/2260/2280 via CPU) • M.2_2: PCIe 5.0 x4 (Key M, 2242/2260/2280 via CPU) • M.2_3: PCIe 4.0 x4 (Key M, 2280/22110 via AMD X870 Chipset) • M.2_4: PCIe 4.0 x4 (Key M, 2242/2260/2280 via AMD X870 Chipset) |
| RGB Support | Yes (Aura Sync: 3 × Addressable Gen 2 Headers + Integrated Aura Lighting on I/O Shroud) |
| WiFi | Wi-Fi 7 (802.11be, 2x2, 2.4/5/6GHz, 320MHz Bandwidth, up to 6.5 Gbps) + Bluetooth 5.4 |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 × HDMI 2.1 Port (Supports up to 4K @ 60Hz) |
| DisplayPort (DP) | Supported via USB4 Type-C (Supports DisplayPort 1.4a Video Output up to 4K @ 60Hz) |
| Thunderbolt | 2 × USB4 Ports (40 Gbps, Type-C, Compatible with DisplayPort Alt Mode & Thunderbolt devices) |
| PCIe Expansion Slots | 1 × PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim 1 × PCIe 4.0 x16 Slot (supports x4 mode via Chipset) |
| SATA & Storage Ports | 2 × SATA 6Gb/s Ports |
| RAID Support | AMD RAIDXpert2 Technology: RAID 0/1/10 (NVMe & SATA) |
| Wired Networking (LAN) | 1 × Intel 2.5Gb Ethernet (2.5G RJ45) with ASUS LANGuard |
| Audio Solution | ROG SupremeFX 7.1 Surround Sound ALC4080 CODEC with Savitech SV3H712 AMP (120 dB SNR Playback, 113 dB SNR Recording, Optical S/PDIF Out) |
| Diagnostic & Display | Q-LED Indicators (CPU, DRAM, VGA, Boot Device status) |

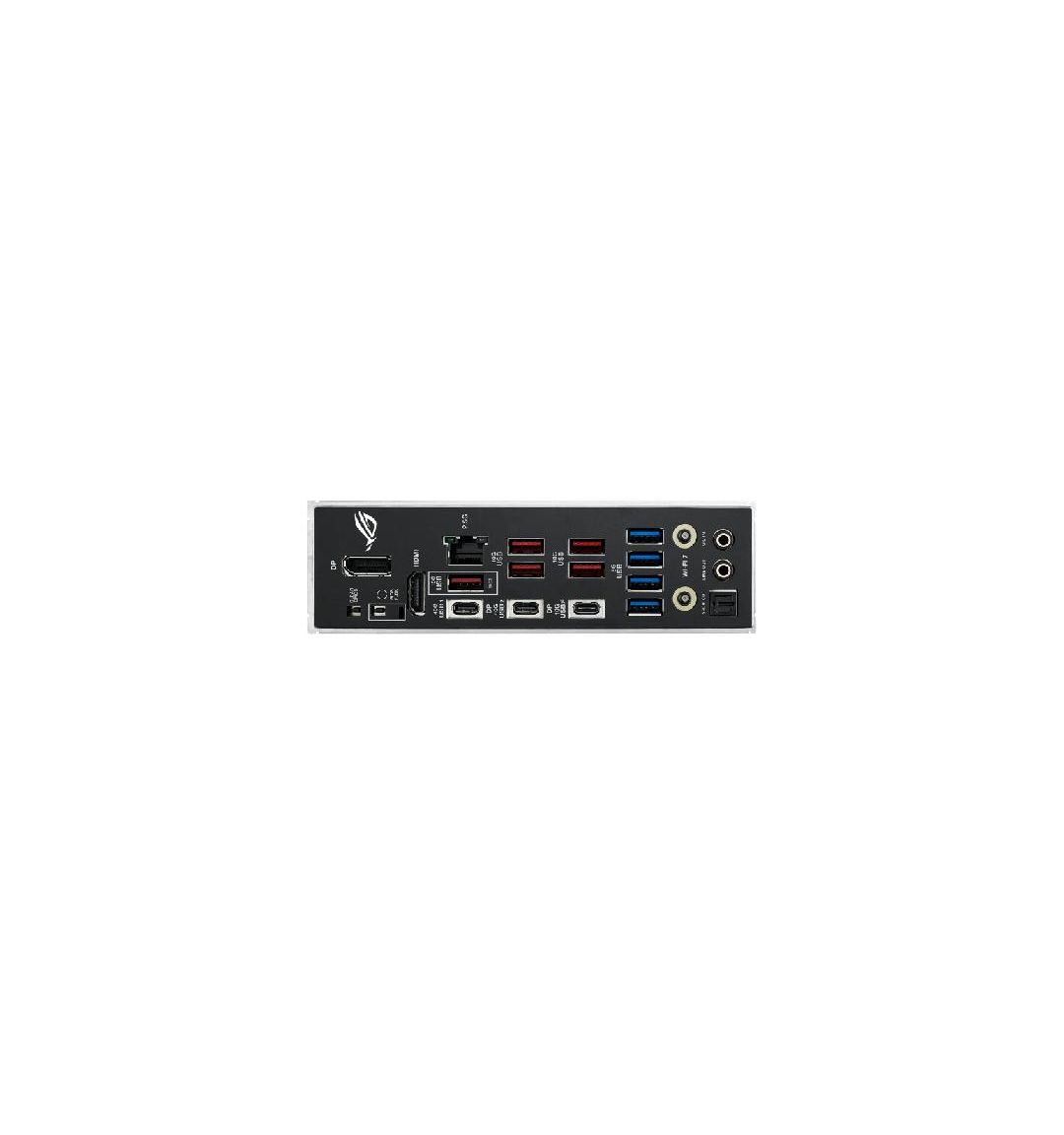

| Back Panel USB Ports | 2 × USB4 (40 Gbps, Type-C) 6 × USB 10Gbps (5 × Type-A + 1 × Type-C) 4 × USB 5Gbps (Type-A) 1 × BIOS FlashBack Button 1 × Clear CMOS Button |
| Front Panel USB Headers | 1 × USB 20Gbps Type-C Connector (Supports Quick Charge 4+ up to 30W) 1 × USB 5Gbps Header (Supports 2 additional ports) 2 × USB 2.0 Headers (Supports 4 additional ports) |
| Cooling & VRM Architecture | 16(110A)+2(110A)+2 Power Stages with Substantial Aluminum VRM Heatsinks, Connected Heatpipe, Multi-layer M.2 Heatsinks & Backplates |
| Overclocking & Intelligent Controls | AI Overclocking, Dynamic OC Switcher, Core Flex, AI Cooling II, AI Networking II, ASUS AI Advisor |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit) |
| Target Workload Applications | High-Performance AAA Gaming, Streaming, High-Speed NVMe Storage Arrays, Content Creation |
| Package Contents | 1 × ROG STRIX X870-F GAMING WIFI Motherboard 1 × ASUS Wi-Fi Q-Antenna 2 × SATA 6Gb/s Cables 1 × ROG Strix Key Chain M.2 Q-Latch, M.2 Q-Release, and Thermal Pad Accessories 1 × ROG Strix Sticker Pack |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description
The ASUS ROG STRIX X870-F GAMING WIFI is a high-performance ATX gaming motherboard engineered to unleash the capabilities of AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. Clad in a stealthy dark aesthetic with Aura Sync RGB accents across the I/O shroud, this board brings together high-speed PCIe 5.0 graphics and NVMe throughput, native Wi-Fi 7 wireless connectivity, and intuitive ASUS EZ DIY mechanisms.
Demanding AAA gaming loads and multi-threaded creative tasks are driven by a robust 16(110A)+2(110A)+2 power-stage VRM architecture powered by dual ProCool II 8-pin power connectors. Thermal stability is maintained by two thick aluminum VRM heatsinks joined by an embedded heatpipe, high-conductivity thermal pads, and dedicated M.2 heatspreaders with backplates. Memory overclocking across the 4 DDR5 DIMM slots accommodates up to 256 GB of high-speed system memory with transfer rates reaching 8000+ MT/s (OC) through AMD Extended Profiles for Overclocking (EXPO) and ASUS AEMP profiles.
Graphics and storage lanes are optimized for PCIe 5.0 speeds. The primary PCIe 5.0 x16 SafeSlot features the tool-free PCIe Slot Q-Release Slim mechanism, allowing easy graphics card installation and removal. Storage expansion supports up to four onboard M.2 slots (two running at full PCIe 5.0 x4 bandwidth and two operating at PCIe 4.0 x4) alongside two SATA 6Gb/s ports for mass storage drives.
Connectivity is powered by native Wi-Fi 7 (802.11be) with 320 MHz channel width and directional Q-Antenna hardware, paired with an Intel 2.5-Gigabit Ethernet port for reliable wired networking. Rear connectivity includes dual USB4 40Gbps Type-C ports capable of high-resolution video output, six 10Gbps USB ports, and a front-panel USB 20Gbps Type-C header with up to 30W Fast Charge. Paired with the ROG SupremeFX ALC4080 codec and Savitech SV3H712 headphone amplifier and backed by a 3-year warranty, the ROG STRIX X870-F GAMING WIFI provides a solid foundation for modern AM5 gaming builds.
