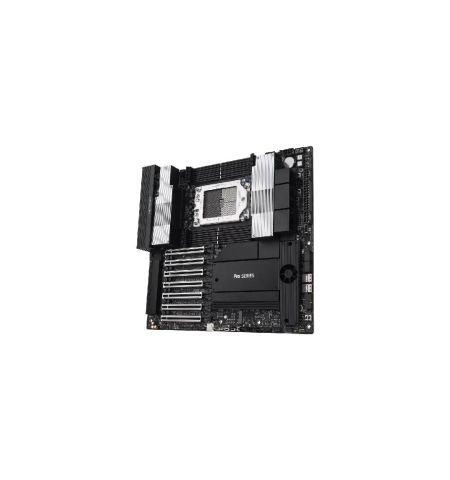

ASUS Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard |
| Model & Part Number | Pro WS WRX90E-SAGE SE / 90MB1FT0-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Product Series | ASUS Pro Workstation Series |
| Form Factor | EEB Form Factor (30.5 cm × 33.0 cm / 12.0 in × 13.0 in) |
| CPU Socket | AMD Socket sTR5 |
| Supported Processors | AMD Ryzen Threadripper PRO 7000 WX-Series Processors (Up to 96 Cores / 192 Threads) |
| Chipset | AMD WRX90 Chipset |
| Power Delivery & VRM | 32+3+3+3 Power Stages with Massive Active VRM Heatsinks and Dual Embedded Fans |
| Power Connectors | 1 × 24-pin Main Power, 4 × 8-pin +12V CPU Power, 2 × 8-pin PCIe Power, 2 × 6-pin PCIe Power |
| Memory Architecture | Octa-Channel (8-Channel) Memory Architecture |
| Memory Slots & Type | 8 × DDR5 DIMM Slots, Supports ECC Registered DIMMs (RDIMM / RDIMM 3DS) |
| Maximum Memory Capacity | Up to 2 TB DDR5 ECC RDIMM |
| Memory Frequency Support | Up to DDR5 7600+ MT/s (OC), EXPO & AMD EXPO profile support |
| PCIe Expansion Slots | 7 × PCIe 5.0 x16 Slots (Supports multi-GPU configurations, all x16 bandwidth from CPU) |
| M.2 Storage Support | 4 × M.2 PCIe 5.0 x4 Slots (M-Key, Form Factors 2242/2260/2280/22110) with Heavy Thermal Armor |
| SATA & SlimSAS Storage | 4 × SATA 6Gb/s Ports 2 × SlimSAS Connectors (Supports PCIe 4.0 x4 / 4 × SATA mode per port) |
| RAID Support | NVMe RAID 0/1/5/10 (via AMD CPU RAID); SATA RAID 0/1/5/10 |
| Wired Networking (LAN) | 2 × Intel X710-AT2 10Gb Ethernet (Dual 10G RJ45) 1 × Realtek 1Gb Ethernet Dedicated Management Port |
| Server-Grade Remote Management | ASPEED AST2600 BMC Controller with Dedicated Gigabit LAN Port and Web GUI IPMI |

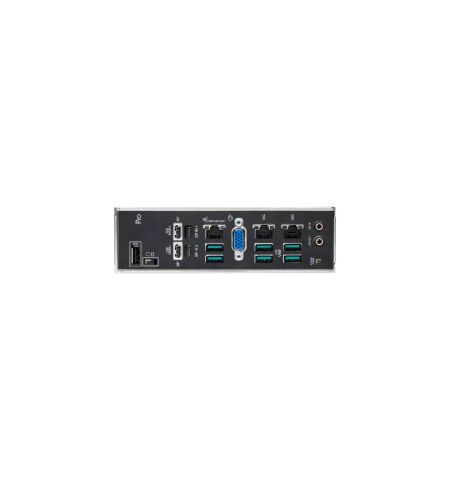

| Back Panel USB Ports | 2 × USB4 (40 Gbps, Type-C with DP-Alt mode) 6 × USB 3.2 Gen 2 (10 Gbps, Type-A) 1 × Dedicated BMC Management LAN Port 2 × 10G LAN Ports (RJ45) 1 × BIOS FlashBack Button |
| Front Panel USB Headers | 1 × USB 3.2 Gen 2x2 Connector (Type-C, Supports 20 Gbps / Fast Charge) 1 × USB 3.2 Gen 1 Header (Supports 2 ports) 2 × USB 2.0 Headers (Supports 4 ports) |
| Audio Solution | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC (Dedicated Audio Shielding) |
| Cooling & Thermal Architecture | Actively cooled VRM heatsinks with dual custom fans, chipset heatsink, dedicated M.2 heatspreaders, extended backplates |
| Internal Headers & Features | Multiple 4-pin PWM/DC Fan Headers, Thermal Sensor Headers, COM Port, Chassis Intrusion, Clear CMOS |
| BIOS & Management Tools | 256 Mb Flash ROM, UEFI AMI BIOS, Pexcess, ASUS Control Center Express (ACCE) |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit), Red Hat Enterprise Linux, Ubuntu Linux |
| Target Workload Applications | AI/Deep Learning Development, LLM Training, Multi-GPU 3D Rendering, Scientific Simulation, VFX Production |
| Package Contents | 1 × ASUS Pro WS WRX90E-SAGE SE Motherboard SATA 6Gb/s Cables SlimSAS Cables M.2 Screw & Standoff Packs 1 × CPU Socket Installation Tool |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description
The ASUS Pro WS WRX90E-SAGE SE is an enterprise-class EEB workstation motherboard engineered to unlock the full computational and multi-threaded potential of AMD Ryzen Threadripper PRO 7000 WX-Series processors (up to 96 cores and 192 threads). Purpose-built for AI model training, deep learning inference, complex 3D VFX rendering, data science simulations, and high-density virtualization, this board combines workstation-class expansion with server-grade remote manageability and robust power delivery.
To sustain relentless multi-core computing workloads under sustained overclocking or high-load conditions, the board integrates a heavy-duty 32+3+3+3 power-stage VRM architecture fueled by quadrupled 8-pin +12V power connectors. Thermal dissipation is managed by a massive dual-fan active VRM heatsink system coupled with extruded aluminum thermal blocks, dedicated M.2 backplates, and high-efficiency heatpipes to ensure cool, stable operation under continuous 24/7 industrial loads. Its 8-channel DDR5 ECC RDIMM architecture accommodates up to 2 TB of memory at speeds exceeding 7600 MT/s (OC), delivering the memory bandwidth essential for dataset crunching and real-time visualization.
Expansion capabilities are led by seven full-length PCIe 5.0 x16 slots routed directly to the CPU, enabling quad-GPU workstation setups, ultra-fast NVMe add-in card configurations, and high-speed hardware accelerator installations without lane sharing compromises. Storage is supported by four onboard PCIe 5.0 x4 M.2 slots with dedicated thermal armor, alongside two SlimSAS connectors and four SATA 6Gb/s ports for expansive server-class backplane arrays.
Enterprise connectivity is powered by dual Intel X710-AT2 10G Ethernet controllers for lightning-fast multi-gigabit data pipelines, complemented by dual onboard USB4 40Gbps Type-C ports. For IT infrastructure integration, the Pro WS WRX90E-SAGE SE features an onboard ASPEED AST2600 BMC controller accessible through a dedicated Gigabit management LAN port, delivering complete out-of-band IPMI hardware monitoring, remote BIOS flashing, and bare-metal OS deployment. Backed by ASUS workstation validation and a 3-year warranty, this motherboard provides an uncompromising foundation for modern compute-intensive workstations.
