ASUS Pro WS TRX50-SAGE WIFI A AMD sTR5 CEB Workstation Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard |
| Model & Part Number | Pro WS TRX50-SAGE WIFI A / 90MB1J00-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Body Color | Black |
| Chipset | AMD TRX50 |
| Chipset Brand | AMD |
| Form Factor | SSI CEB Form Factor (30.5 cm × 28.0 cm / 12.0 in × 11.0 in) |
| Generation | AMD Ryzen Threadripper 7000 / Threadripper PRO 7000 & 9000 WX-Series |
| Socket Support | AMD Socket sTR5 |
| Memory Type | DDR5 ECC Registered DIMM (RDIMM / RDIMM 3DS) |
| Memory Slot | 4 × DDR5 DIMM Slots (Quad-Channel Memory Architecture) |
| Max Memory | Up to 1 TB DDR5 ECC RDIMM |
| M.2/SSD Expansion Slot | Total 4 × M.2 Slots: • 2 × M.2 PCIe 5.0/4.0 x4 (Key M, 2242/2260/2280 via CPU) • 1 × M.2 PCIe 5.0 x4 (Key M, 2280 via Threadripper PRO CPU) • 1 × M.2 PCIe 4.0 x4 (Key M, 2280 via TRX50 Chipset) |
| RGB Support | Yes (1 × Addressable Gen 2 Header) |
| WiFi | Wi-Fi 7 (802.11be, 2x2, 2.4/5/6GHz bands, up to 160MHz bandwidth) + Bluetooth 5.4 |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | No |
| DisplayPort (DP) | 2 × DisplayPort IN Ports on Rear I/O (Pass-through input for USB4 video output) |
| Thunderbolt | 2 × USB4 Ports (40 Gbps, Type-C, Compatible with DisplayPort Alt Mode & Thunderbolt devices) |
| PCIe Expansion Slots | 3 × PCIe 5.0 x16 Slots (Supports x16 / x16 / x16 or x16 / x8 / x16) 1 × PCIe 4.0 x16 Slot |
| SATA & SlimSAS Storage | 4 × SATA 6Gb/s Ports 2 × SlimSAS Connectors (PCIe 4.0 x4 NVMe mode) |
| RAID Support | AMD RAIDXpert2 Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10 |
| Wired Networking (LAN) | 1 × Marvell AQtion 10Gb Ethernet (10G RJ45) 1 × Intel I226-LM 2.5Gb Ethernet (2.5G RJ45) |
| Audio Solution | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC with Audio Shielding |

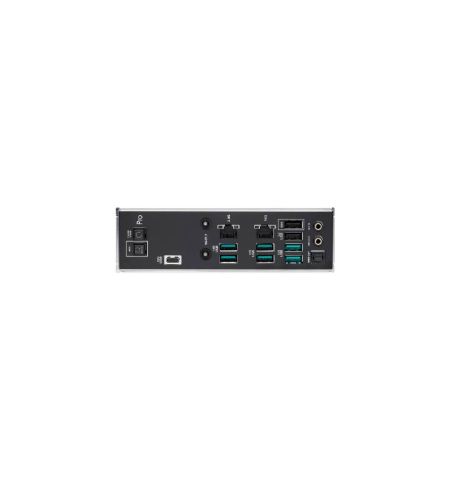

| Back Panel USB Ports | 2 × USB4 (40 Gbps, Type-C) 6 × USB 3.2 Gen 2 (10 Gbps, Type-A) 1 × USB 2.0 (Type-A) |
| Front Panel USB Headers | 1 × USB 20Gbps Connector (USB Type-C with up to 30W PD / Quick Charge 4+) 1 × USB 5Gbps Header (Supports 2 additional USB 3.2 Gen 1 ports) 2 × USB 2.0 Headers (Supports 4 additional USB 2.0 ports) |
| Remote Management | 1 × Server-grade BMC Header (Supports AST2600-based management add-on cards) |
| Cooling & Thermal Armor | Actively cooled VRM heatsinks with dual embedded fans, extruded aluminum fins, chipset heatsinks, and multi-layer M.2 thermal guards |
| Power Connectors | 2 × 24-pin Main Power, 2 × 8-pin +12V CPU, 2 × 8-pin PCIe to CPU, 1 × 8-pin PCIe, 1 × 6-pin PCIe |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit), Ubuntu Linux, Red Hat Enterprise Linux |
| Target Workload Applications | High-End Desktop (HEDT), Generative AI Development, 3D Rendering, Architecture Simulation, VFX Production |
| Package Contents | 1 × ASUS Pro WS TRX50-SAGE WIFI A Motherboard 2 × SATA 6Gb/s Cables 1 × DisplayPort Cable 1 × ASUS Wi-Fi Q-Antenna 1 × Thermistor Cable Pack 1 × 4-pin to 24-pin ATX Power Adapter M.2 Q-Latch and Rubber Accessories |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description
The ASUS Pro WS TRX50-SAGE WIFI A is an elite CEB-form-factor workstation motherboard engineered to harness the high-throughput computing capabilities of AMD Ryzen Threadripper 7000 and Threadripper PRO WX-Series processors. Developed specifically for generative AI creators, 3D artists, visual effects compositors, and scientific computing specialists, this platform merges high-bandwidth PCIe 5.0 infrastructure with enterprise-grade durability, heavy power management, and advanced high-speed wireless connectivity.
Equipped with a robust (18*2)+3+4+4 power-stage VRM design and dual 8-pin CPU power connectors paired with supplemental PCIe supplemental inputs, the motherboard delivers stable voltage delivery even under maximum CPU overclocking loads. Thermal control is handled by an active cooling layout that embeds dual fans inside extruded aluminum heatsinks connected via hidden heat pipes, keeping power stages, chipset silicon, and high-speed NVMe storage consistently within optimal operating envelopes. Its 4-channel DDR5 memory architecture accommodates up to 1 TB of ECC Registered DIMMs, ensuring critical stability and error-correction during dense memory simulations.
For extreme expansion, the Pro WS TRX50-SAGE WIFI A features three PCIe 5.0 x16 slots and a PCIe 4.0 x16 slot, providing flexible configurations for multi-GPU arrays or high-bandwidth accelerator boards. Storage options are extensive, with four M.2 NVMe slots (supporting up to PCIe 5.0 speeds), two SlimSAS connectors for enterprise U.2/U.3 backplanes, and four SATA 6Gb/s interfaces.
Modern high-speed workflows are sustained through integrated Wi-Fi 7 wireless networking, Marvell AQtion 10G Ethernet, Intel 2.5G LAN, and dual USB4 40Gbps Type-C ports capable of high-resolution video pass-through via rear DisplayPort IN connectors. With out-of-band management readiness through an onboard BMC header, Realtek ALC1220P audio isolation, and full Windows and Linux platform validation, the ASUS Pro WS TRX50-SAGE WIFI A serves as a scalable, reliable workstation platform.
