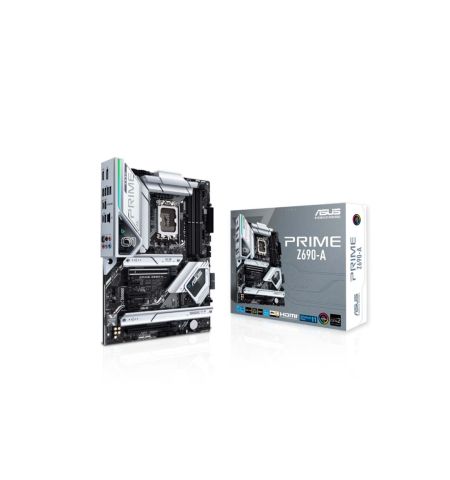

Asus PRIME Z690-A Intel 12th Gen ATX Motherboard
Save 6%
Please sign in so that we can notify you about a reply
Asus PRIME Z690-A Motherboard
SPECIFICATION
| Audio Port | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*– Impedance sense for front and rear headphone outputs– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)– Supports up to 32-Bit/192 kHz playback |
| Chipset | Intel® Z690 Chipset |
| D-Sub Ports | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel®12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110– Intel®12th Gen processors support PCIe 4.0 x4 mode.Intel® Z690 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports |
| Expansion Slots | Intel®12th Gen Processors*1 x PCIe 5.0/4.0/3.0 x16 slot(s)Intel® Z690 Chipset**1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x4 slot2 x PCIe 3.0 x1 slots |
| Form Factor | ATX |
| Graphics | 1 x DisplayPort 1 x HDMI® port |
| Internal I/O Ports | Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)4 x 4-pin Chassis Fan header(s)1 x W_PUMP+ header(s)Power related1 x 24-pin Main Power connector2 x 8-pin +12V Power connectorStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS button1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x Power button1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt™ header |
| Maximum Memory | 128 |
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| PCI | 5.0/4.0/3.0 |
| Memory Slots | 4 |
| Memory Type | DDR5 |
| BIOS | 256 Mb Flash ROM |
| USB Ports | Rear USB:Total 8 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s) (4 x Type-A)Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
Warranty : 03 Years
Nexus will be your first choice If you want to buy Asus PRIME Z690-A Motherboard in Bangladesh, Because we sale only Asus authorized original Motherboard. So you are at the right place to buy right Asus Motherboard at the lowest price in Bangladesh.
Nexus Offers you Asus PRIME Z690-A Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of ASUS PRIME Z690-A Motherboard? and where you can get Asus Motherboard at lowest price in BD? Yes, it is Nexus. ASUS PRIME Z690-A Motherboard now available at Nexus, So Don’t Think more to buy ASUS PRIME Z690-A Motherboard.
