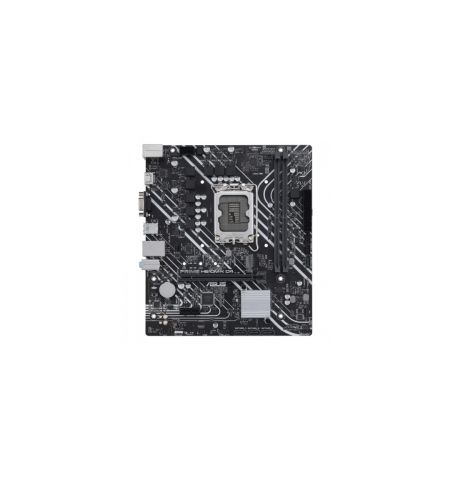

ASUS PRIME H610M-K D4 12th Gen mATX Motherboard
Save 9%
Please sign in so that we can notify you about a reply
ASUS PRIME H610M-K D4 Motherboard
SPECIFICATION
| Supported CPU | Intel® Socket LGA1700 For 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel H610 Chipset |
| Memory | 2 X DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/ 2133 Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Graphics | 1 X D-Sub Port 1 X HDMI® Port |
| Supported Storage | Total Supports 1 X M.2 Slot And 4 X SATA 6Gb/S Ports Intel H610 Chipset M.2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 X4 & SATA Modes) 4 X SATA 6Gb/S Ports |
| LAN | 1 X Realtek 1Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192 kHz Playback Audio Features - Audio Shielding - Dedicated Audio PCB Layers |
| USB Port | Rear USB (Total 6 Ports) 2 X USB 3.2 Gen 1 Ports (2 X Type-A) 4 X USB 2.0 Ports (4 X Type-A) Front USB (Total 4 Ports) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 1 X USB 2.0 Header Supports Additional 2 USB 2.0 Ports |
| Internal I/O Ports | Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin Chassis Fan Header Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector Storage Related 1 X M.2 Slot (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 1 X USB 2.0 Header Supports Additional 2 USB 2.0 Ports Miscellaneous 1 X RGB Header 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X S/PDIF Out Header 1 X Speaker Header 1 X SPI TPM Header (14-1pin) 1 X 10-1 Pin System Panel Header |

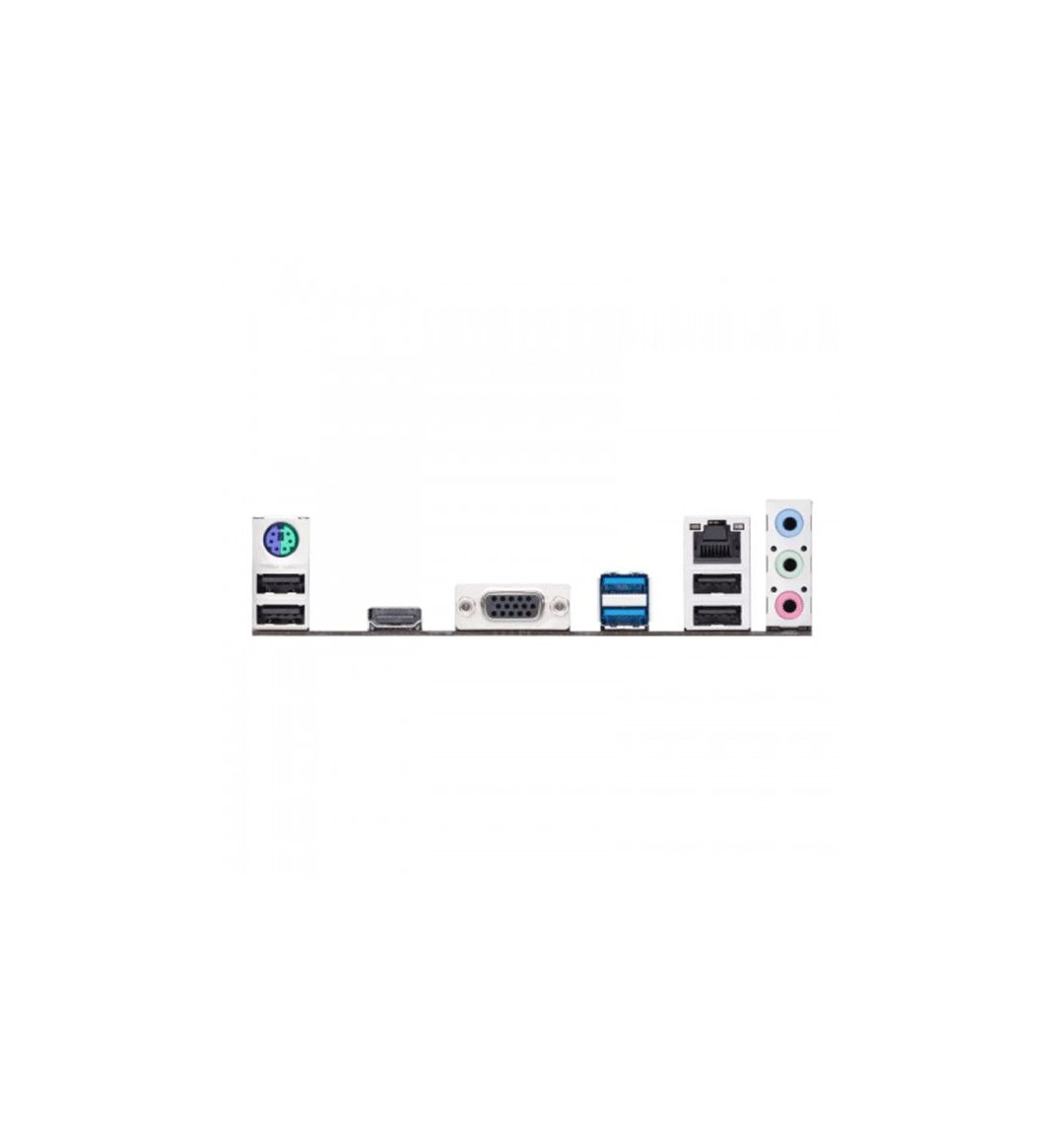

| External I/O Ports | 2 X USB 3.2 Gen 1 Ports (2 X Type-A) 4 X USB 2.0 Ports (4 X Type-A) 1 X D-Sub Port 1 X HDMI® Port 1 X Realtek 1Gb Ethernet Port 3 X Audio Jacks 1 X PS/2 Keyboard/Mouse Combo Port |
| Form Factor | MATX Form Factor 9.2 Inch X 8.0 Inch (23.4 Cm X 20.3 Cm) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum Heatsink Design ASUS Lighting Control - RGB Header |
| HDMI | 1 X HDMI Port |
Warranty: 03 Years
Nexus will be your first choice If you want to buy ASUS PRIME H610M-K D4 Motherboard in Bangladesh, Because we sell only Asus authorized original Motherboard. So you are at the right place to buy the right Asus Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASUS PRIME H610M-K D4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of the ASUS PRIME H610M-K D4 Motherboard? and where you can get an Asus Motherboard at the lowest price in BD? Yes, it is Nexus. ASUS PRIME H610M-K D4 Motherboard is now available at Nexus, So Don’t Think more to buy ASUS PRIME H610M-K D4 Motherboard.
Brand:
Asus
