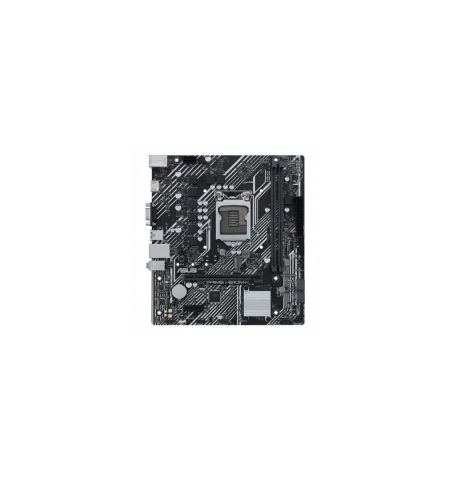

ASUS PRIME H510M-K-SI Micro ATX Motherboard
Save 9%
Please sign in so that we can notify you about a reply
ASUS PRIME H510M-K-SI Micro ATX Motherboard
SPECIFICATION
| Audio Port | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– Supports up to 24-Bit/192 kHz playback”Audio Features– Audio Shielding– Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Chipset | H510 |
| D-Sub Ports | 1 x D-Sub Port |
| Expansion Slots | Intel® 11th & 10th Gen Processors1 x PCIe 4.0/3.0 x16 slot– Intel® 11th Gen processors support PCIe 4.0 x16– Intel® 10th Gen processors support PCIe 3.0 x16Intel® H510 Chipset1 x PCIe 3.0 x1 slot |
| Form Factor | mATX Form Factor 22.6cm x 20.3cm |
| Graphics | 1 x D-Sub 1 x HDMI™ 1.4 / 2.0*** * Graphics specifications may vary between CPU types.** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| HDMI Ports | 1 x HDMI™ port |
| Internal I/O Ports | Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 portsMiscellaneous1 x RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header |
| Maximum Memory | 64GB |
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| PCI | 4.0 |
| Memory Slots | 2 |
| Memory Type | DDR4 |
| Supported Memory | DDR4 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| USB Ports | Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports |
Warranty : 03 Years
Nexus will be your first choice If you want to buy ASUS PRIME H510M-K-SI Motherboard in Bangladesh, Because we sale only Asus authorized original Motherboard. So you are at the right place to buy right Asus Motherboard at the lowest price in Bangladesh.
Nexus Offers you ASUS PRIME H510M-K-SI Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of ASUS PRIME H510M-K-SI? and where you can get Asus Motherboard at lowest price in BD? Yes, it is Nexus. ASUS PRIME H510M-K-SI Motherboard now available at Nexus, So Don’t Think more to buy ASUS PRIME H510M-K-SI Motherboard.
