Asus PRIME B760-PLUS ATX DDR5 Motherboard

Save 6%
Ask a question
PRIME B760-PLUS
Tk.27,700
Tk.26,000
You save: Tk.1,700
In stock
+
Delivery
  • We Deliver Products Anywhere In Bangladesh
  • Free Delivery Inside Dhaka Over The Amount Of 10000 TK
Payment options
  • — Cash on delivery
  • — Visa and MasterCard
  • — Сashless payments
  • — Invoices

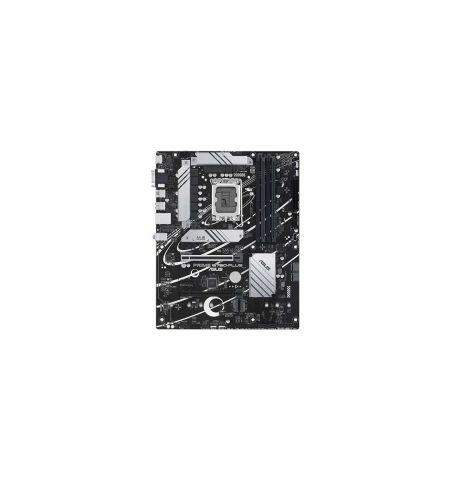

Asus PRIME B760-PLUS DDR5 Motherboard

SPECIFICATION

BrandASUS
ModelAsus PRIME B760-PLUS
Chipset BrandIntel
ChipsetIntel B760 Chipset
Form FactorATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPUIntel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory TypeDDR5
Memory4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Graphics1 x DisplayPort
1 x VGA port
1 x HDMI port
Expansion Slot

Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Supported Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Ethernet1 x Realtek 2.5Gb Ethernet
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
USB

Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

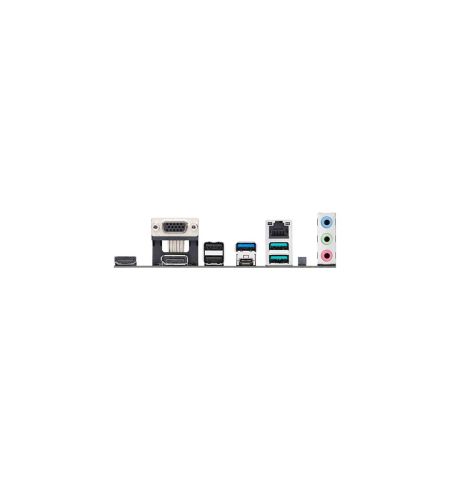

Back Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Special Features

ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software FeaturesASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Supported Operating SystemSupport for Windows 10 64-bit
Support for Windows 11 64-bit
BIOS128 Mb Flash ROM, UEFI AMI BIOS


Warranty Information
Warranty3 years


Nexus will be your first choice If you want to buy Asus PRIME B760-PLUS Motherboard in Bangladesh, Because we sale only ASUS authorized original Motherboard. So you are at the right place to buy right ASUS Motherboard at the lowest price in Bangladesh.

Nexus Offers you Asus PRIME B760-PLUS Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Asus PRIME B760-PLUS Motherboard? and where you can get ASUS Motherboard at lowest price in BD? Yes, it is Nexus. Asus PRIME B760-PLUS Motherboard now available at Nexus, So Don’t Think more to buy Asus PRIME B760-PLUS Motherboard.
