ASUS PRIME B450M-K II AM4 Micro-ATX Motherboard
Specification
Model | PRIME B450M-K II |
CPU Support | AMD AM4 Socket for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3rd/2nd/1st Gen Ryzen™, 2nd and 1st Gen Ryzen™ with Radeon™ Vega Graphics, Athlon™ with Radeon™ Vega Graphics Processors |
Chipset | AMD B450 |
Memory Support | 2 x DIMM, up to 64GB, DDR4 4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, Dual Channel, ECC support varies by CPU |
Graphics | Integrated Graphics in the 2nd/1st Gen Ryzen™ with Radeon™ Vega Graphics, Athlon™ with Radeon™ Vega Graphics Processors; supports D-Sub, DVI-D, and HDMI ports (graphics specs may vary by CPU) |
Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode for Ryzen™, x8 for Ryzen™ with Vega, x4 for Athlon™ with Vega), 2 x PCIe 2.0 x1 |
LAN | Realtek RTL8111H, ASUS LANGuard |
Storage | 1 x M.2 (2242/2260/2280, PCIe 3.0 x4 & SATA modes for Ryzen™, SATA only for Athlon™), 4 x SATA 6Gb/s with RAID 0, 1, 10 |
USB Ports | Rear: 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A); Front: 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
Audio | Realtek ALC887/897 7.1-Channel HD Audio CODEC, supports jack-detection, multi-streaming, front panel jack-retasking, up to 24-Bit/192kHz playback; audio shielded design, dedicated audio PCB layers, premium Japanese audio capacitors |

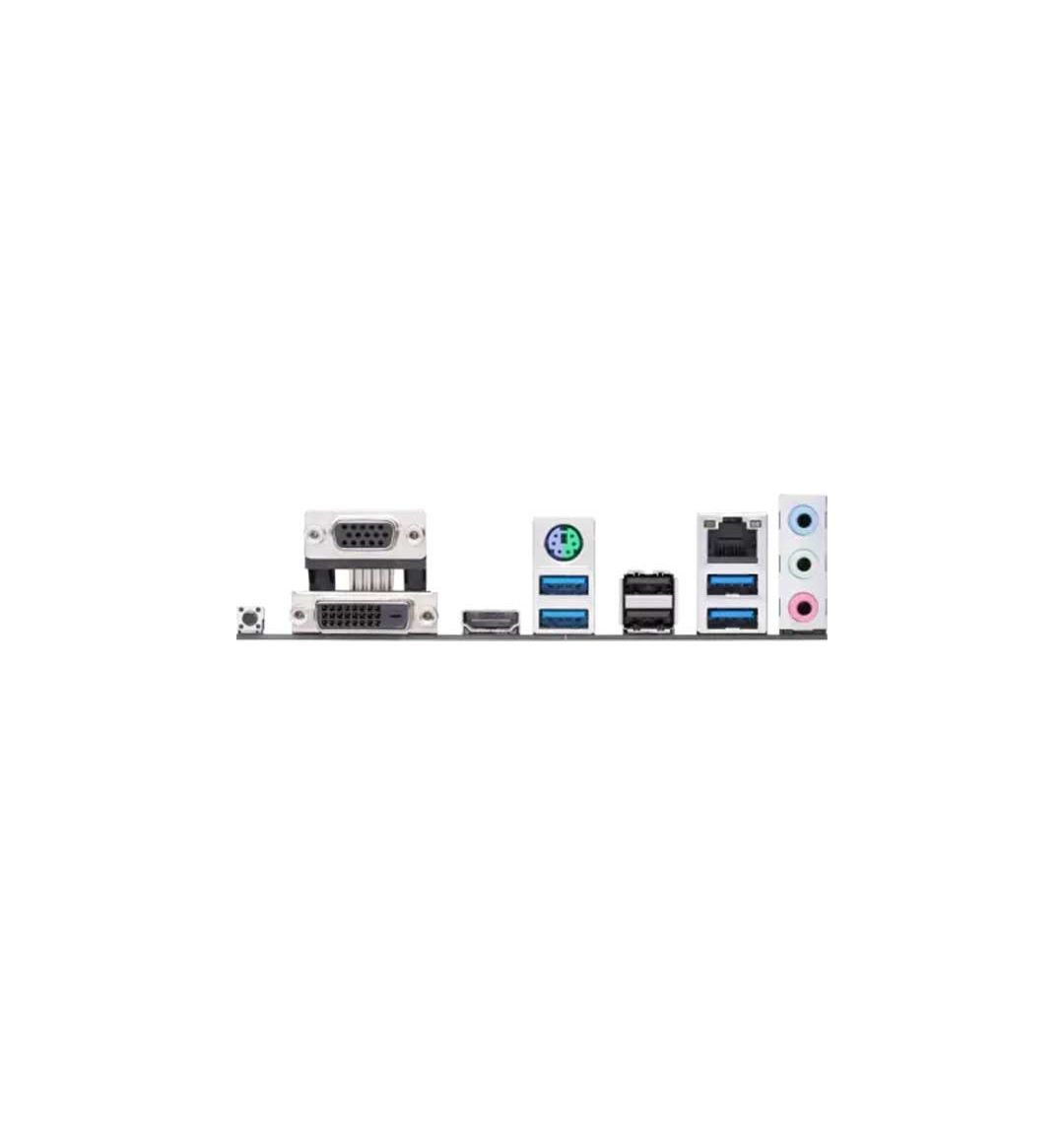

Back Panel I/O Ports | 1 x PS/2 keyboard/mouse combo, 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 4 x USB 3.2 Gen 1, 2 x USB 2.0, 3 x Audio jacks, 1 x BIOS FlashBack Button |
Internal I/O Connectors | 1 x CPU Fan (4-pin), 1 x Chassis Fan (4-pin), 1 x USB 3.2 Gen 1 (19-pin, up to 2 ports), 2 x USB 2.0 (supports 4 ports), 1 x M.2 (2242/2260/2280, PCIe 3.0 x4/SATA), 4 x SATA 6Gb/s, 1 x 24-pin EATX Power, 1 x 8-pin ATX 12V, 1 x SPI TPM, 1 x COM, 1 x S/PDIF out header, 1 x Front panel audio (AAFP), 1 x Clear CMOS, 1 x Speaker |
Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-Slot), Aluminum heatsink, BIOS FlashBack, Lighting Control |
Software Features | ASUS Armoury Crate, AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert), PC Cleaner, EZ Update, System Info, ASUS CPU-Z, AI Charger, EZ Installer, DAEMON Tools, Norton Anti-virus (60-day trial), WinRAR |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS with EZ Mode |
Accessories | User manual, I/O Shield, 2 x SATA 6Gb/s cables, 1 x M.2 anchor, Supporting DVD |
Operating System Support | Windows 10 64-bit, Windows 7 64-bit (limited) |
Form Factor | Micro-ATX, 8.9 x 8.7 inches (22.6 x 22.1 cm) |
Warranty | 3 Years Replacement Warranty (Terms and Conditions Apply) |
ASUS PRIME B450M-K II AM4 Micro-ATX Motherboard
Overview
The ASUS PRIME B450M-K II AM4 Micro-ATX Motherboard is designed for high performance and seamless compatibility with AMD’s Ryzen™ processors. This motherboard combines advanced technology, efficient cooling solutions, and high-speed connectivity, making it a solid choice for both gaming enthusiasts and professionals seeking reliability and performance. Featuring ASUS’s proprietary 5X Protection III and Armoury Crate software, this motherboard is optimized for stable operation, easy setup, and comprehensive customization.
Key Features
- Enhanced Compatibility: Supports AMD Ryzen™ 5000 Series, 4000 G-Series, and 3rd/2nd/1st Gen Ryzen™ processors, offering a versatile choice for various system builds.
- Fast Memory Speeds: Dual-channel memory architecture with support for up to 64GB DDR4, allowing speeds up to 4400MHz (O.C.), ideal for handling demanding applications and multitasking.
- High-Quality Audio: Realtek ALC887/897 7.1-Channel HD Audio CODEC with premium Japanese audio capacitors and audio shielding for immersive audio experiences.
- Comprehensive Connectivity: Equipped with multiple USB 3.2 and USB 2.0 ports, an M.2 slot, and four SATA 6Gb/s ports, offering extensive expansion options.
- ASUS Exclusive Features: Features ASUS LANGuard for network protection, Q-DIMM and Q-Slot for easy installation, and BIOS FlashBack™ for simple and safe BIOS updates.
- Compact & Durable Design: Micro-ATX form factor ensures compatibility with smaller cases while maintaining durability with stainless-steel back I/O panels.
Applications
The ASUS PRIME B450M-K II is perfect for:
- Gaming Setups: With reliable power delivery, high-speed memory support, and integrated graphics options for Ryzen™ processors, this motherboard suits budget to mid-range gaming PCs.
- Productivity: Optimized for multitasking and resource-intensive applications, making it ideal for creative work, streaming, and professional use.
- Home Office Systems: Provides stable performance for daily use, browsing, and streaming, backed by ASUS's quality and stability.
Why Choose the ASUS PRIME B450M-K II?
- Versatile CPU Support: Compatibility with a wide range of AMD Ryzen™ processors allows flexibility in choosing the best processor for your needs and budget.
- Advanced Cooling and Power Management: ASUS’s DIGI+ VRM and an aluminum heatsink design ensure your system runs cool and stable, even under heavy loads.
- User-Friendly Features: Q-DIMM, Q-Slot, and BIOS FlashBack™ simplify installation, upgrades, and BIOS management, enhancing the overall user experience.
- Built to Last: With ASUS 5X Protection III, this motherboard is safeguarded against electrical hazards, corrosion, and environmental wear, ensuring long-term durability.
Frequently Asked Questions (FAQs)
- Does this motherboard support overclocking?
- Yes, the ASUS PRIME B450M-K II supports memory overclocking with select Ryzen™ processors, allowing speeds up to 4400MHz (O.C.).
- What’s the maximum RAM capacity and speed supported?
- This motherboard supports up to 64GB of DDR4 RAM with speeds up to 4400MHz (O.C.), depending on the processor.
- Which Ryzen processors are compatible with this motherboard?
- It is compatible with AMD Ryzen™ 5000 Series, 4000 G-Series, 3rd/2nd/1st Gen Ryzen™, and Athlon™ processors with Radeon™ Vega Graphics.
- Does the motherboard come with built-in Wi-Fi?
- No, the ASUS PRIME B450M-K II does not include built-in Wi-Fi but supports LAN connectivity via Realtek RTL8111H.
- Is BIOS update needed to support Ryzen™ 5000 Series processors?
- Yes, a BIOS update may be required for compatibility with Ryzen™ 5000 Series processors. The motherboard includes BIOS FlashBack™ for easy updating.
- What is ASUS 5X Protection III?
- ASUS 5X Protection III includes safeguards like LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O, and DIGI+ VRM for enhanced motherboard durability.
