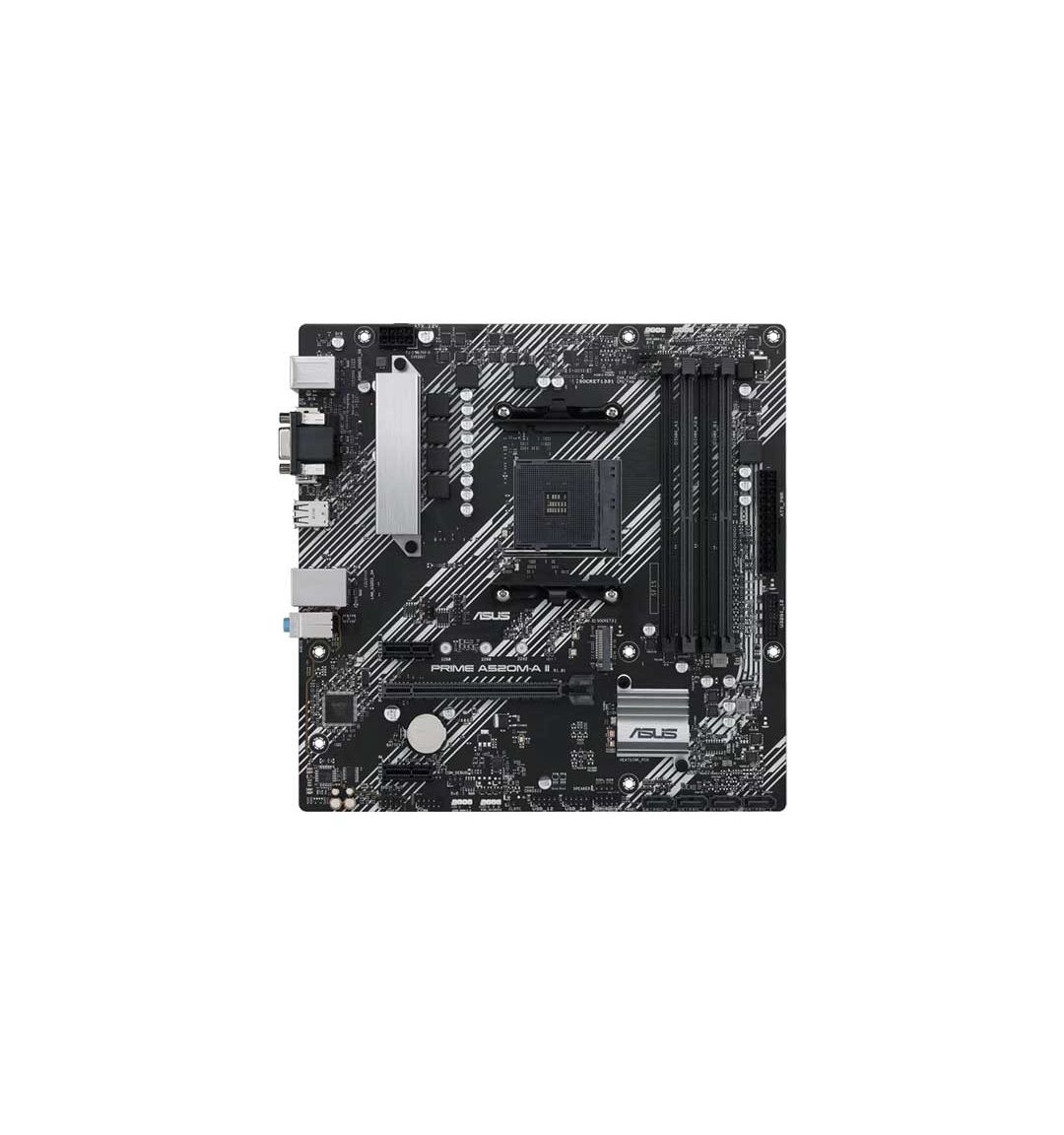

Asus PRIME A520M-A II AMD DDR4 M-ATX Motherboard.
Please sign in so that we can notify you about a reply
Asus PRIME A520M-A II DDR4 Motherboard
SPECIFICATION
| Brand | ASUS |
| Model | Asus PRIME A520M-A II |
| Chipset Brand | AMD |
| Chipset | AMD A520 Chipset |
| Form Factor | micro-ATX Form Factor 24.4cm x 24.4cm |
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memory Type | DDR4 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
| Expansion Slot | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slot |
| Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support Raid 0, 1, 10 |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| USB | Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 port |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
| Software Features | ASUS Exclusive Software
Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Supported Operating System | Support for Windows 10 64-bit |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Asus PRIME A520M-A II Motherboard in Bangladesh, Because we sale only ASUS authorized original Motherboard. So you are at the right place to buy right ASUS Motherboard at the lowest price in Bangladesh.
Nexus Offers you Asus PRIME A520M-A II Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Asus PRIME A520M-A II Motherboard? and where you can get ASUS Motherboard at lowest price in BD? Yes, it is Nexus. Asus PRIME A520M-A II Motherboard now available at Nexus, So Don’t Think more to buy Asus PRIME A520M-A II Motherboard.
