ASRock Z590 Taichi Wi-Fi 10th and 11th Gen ATX Motherboard
Save 45%
Please sign in so that we can notify you about a reply

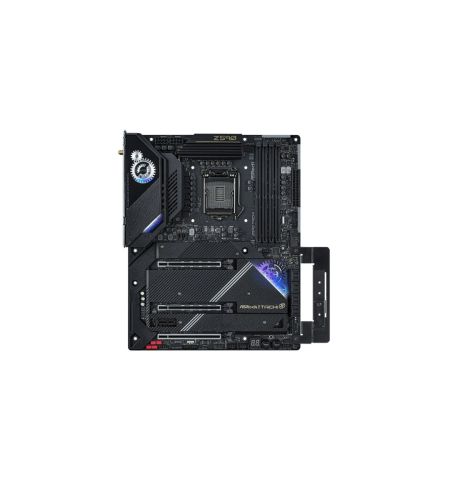

ASRock Z590 Taichi ATX Motherboard
SPECIFICATION
| Supported CPU | - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 14 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock Hyper BCLK Engine III |
| Chipset | Intel Z590 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM(VCCM, VPPM, VTT), VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO_0, VCCIO_1_2, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
| PCI | 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE2); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE2) / Gen3x4 (PCIE4))* 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/ PCIE2/ PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE2); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE2) / Gen3x4 (PCIE4)) - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX, 3-Way CrossFireX, and CrossFireX - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| M.2 Socket | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Type | Dual Channel DDR4 Memory Technology |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC) - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. the capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Maximum Memory | Max. capacity of system memory: 128GB |
| Graphics | |
| Graphics | - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built-In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc - Three graphics output options: 1 x HDMI and 2 x Intel Thunderbolt 4 - Supports Triple Monitor - Supports Intel Thunderbolt 4 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 2.0 and Intel Thunderbolt 4 Ports |
| HDMI | 1 x HDMI Port |

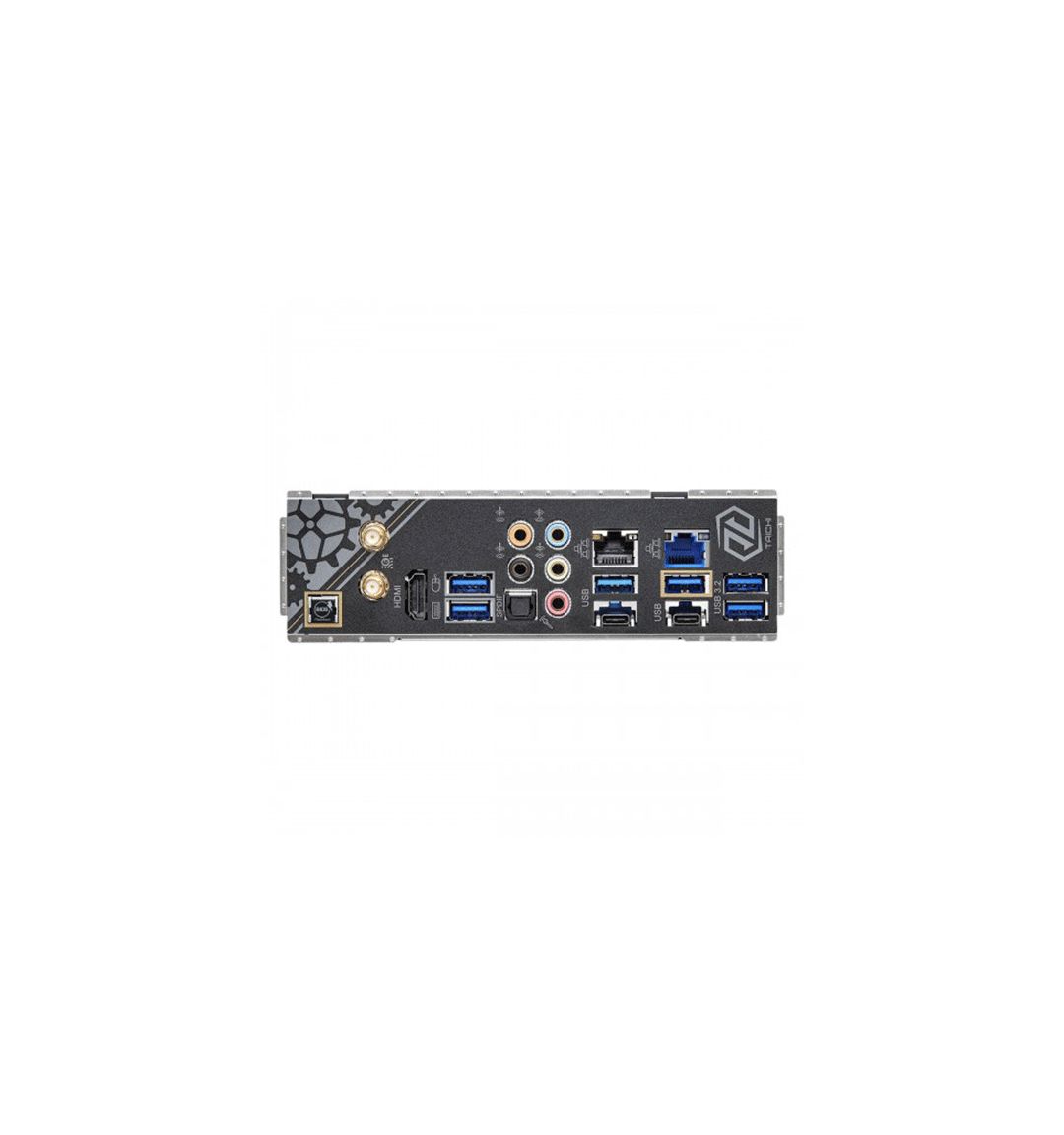

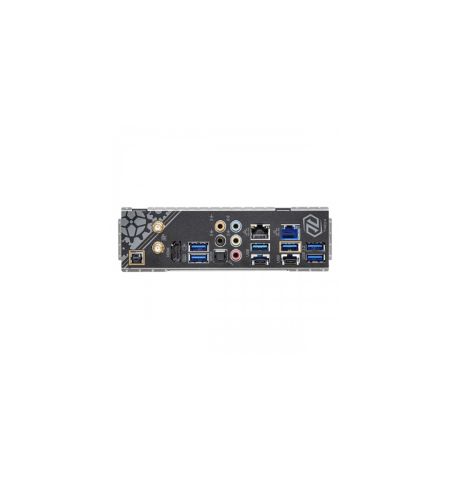

| USB (s) | - 2 x USB 4.0 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection) - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) |
| LAN Port (s) | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) - Supports Killer LAN Software - Supports Killer DoubleShot Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061 - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - WIMA Audio Capacitors (For Front Outputs) - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio |
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 2 x RGB LED Headers - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) - 1 x Clear CMOS Button - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |
| Wireless LAN | - Killer AX1675x 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot Pro |
