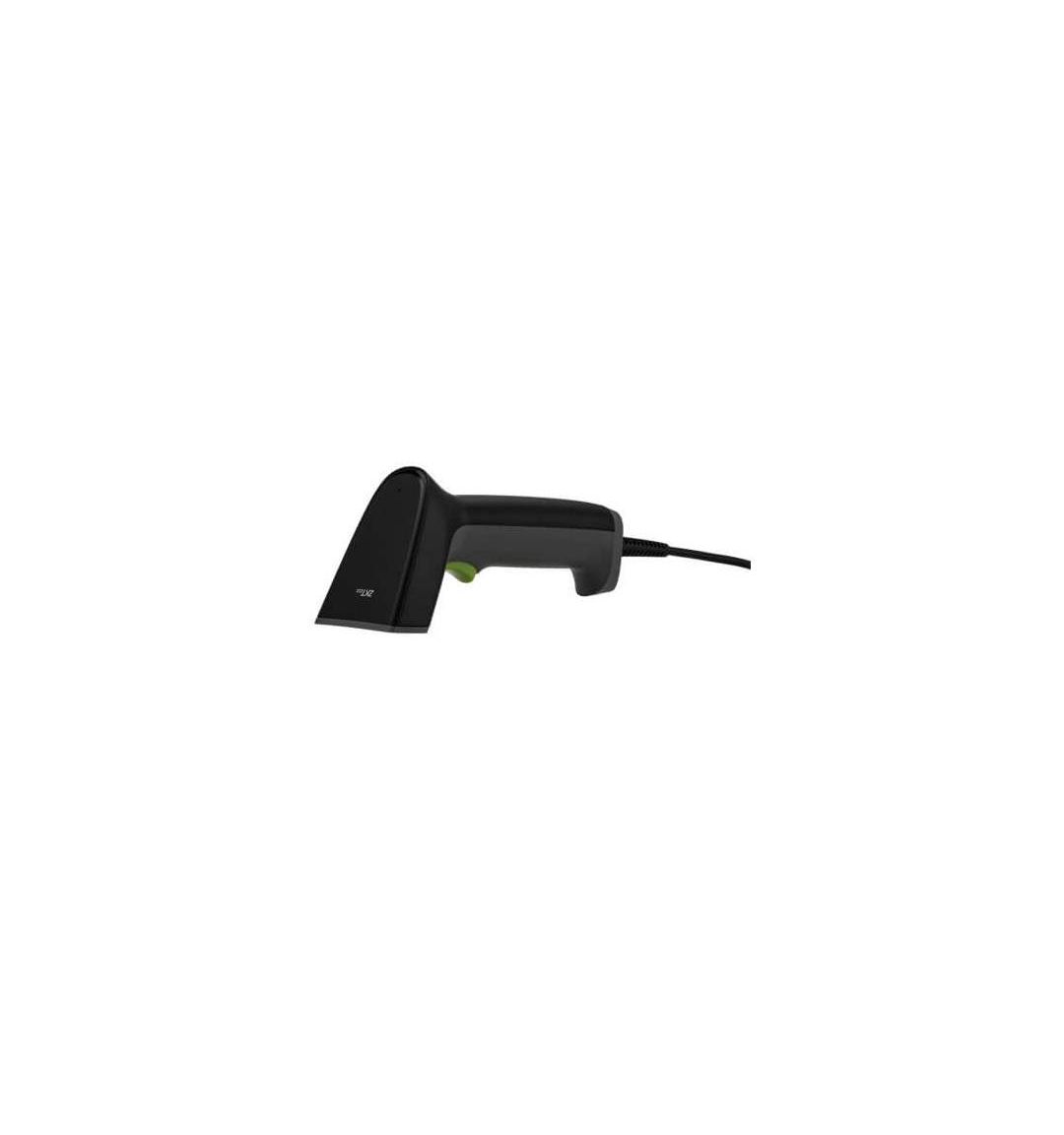

ZKTeco ZKB102S 1D CCD Barcode Scanner
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Model | ZKB102S |
| Product Category | 1D Handheld Linear CCD Image Barcode Scanner |
| Chassis Color | Black and Gray (Optional custom factory White variant) |
| Primary Material | High-strength ABS + PC industrial polymer blend |
| SCANNER PERFORMANCE | |
| Scanning Engine Type | Charged-Coupled Device (Linear CCD Sensor Array) |
| Illumination Source | 620nm True Red LED Light Engine |
| Scanning Execution Speed | 50 ms per individual scan line execution |
| Scan Operational Modes | Manual Key Trigger Reading Mode (Supports persistent automated baseline configurations) |
| Precision Core Resolution | $\ge$ 4 mil (Minimum identifying resolution metric) |
| Print Contrast Signal | $\ge$ 25% minimum reflection differential barrier |
| Scanning Angle Matrix | Roll: $\pm$30° | Pitch: $$\p$60° | Skew/Yaw: $ $\$60° |
| DECODING CAPABILITIES | |
| Supported 1D Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7) |
| Medium Tracking Surface | Reads cleanly from matte paper, synthetic films, glossy packaging, and digital LCD/OLED mobile smartphone screen displays |
| CONNECTIVITY & POWER | |
| Data Host Interface | Standard Wired USB (Factory customizable RS-232 serial logic link optional) |
| Driver Framework | Pure Plug-and-Play deployment (Instantly registers as standard HID) |
| Operational Line Voltage | 5.0 Volts Direct Current (5 VDC) |
| Current Consumption | Active Scanning: 120mA | Static Standby Mode: 30mA |
| DECODE READING RANGES | |
| Code 39 (4 mil) | 3 cm to 10 cm focal range window |
| Code 39 (5 mil) | 3 cm to 13 cm focal range window |
| Code 39 (13 mil) | 4 cm to 30 cm focal range window |
| Code 39 (20 mil) | 6 cm to 40 cm focal range window |
| EAN-13 (13 mil) | 3 cm to 30 cm focal range window |
| UPC-A (13 mil) | 3 cm to 30 cm focal range window |
| PHYSICAL & ENVIRONMENTAL | |
| User Alert Indicators | Visual Decode LED Target Status Bar + Variable Pitch Beeper |
| Chassis Volume Size | 167.3 x 70.5 x 81.5 mm ($L \times W \times H$) |
| Device Net Weight | 120 grams (Super-lightweight ergonomic chassis profile) |
| Electrostatic Protection | $\pm$2KV Direct Contact Discharge | $$\p$8KV Open Air Discharge |
| Ambient Lighting Ceiling | Up to 10,000 Lux maximum lux saturation protection |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operational Humidity | 5% to 95% relative atmospheric humidity, non-condensing |
| Package Contents | 1 x ZKB102S Handheld Scanner, 1 x Integrated USB Link Cable, User Setup Guide |
| Warranty Window | 1 Year Limited Manufacturer Warranty |
Product Description
The ZKTeco ZKB102S 1D CCD Barcode Scanner is a budget-friendly, highly dependable, and remarkably nimble data logging peripheral engineered to accelerate point-of-sale (POS) checkouts, retail processing lines, administrative paperwork routing, and small-scale stockroom operations. Weighing an exceptionally light 120 grams, this handheld scanner features a balanced, anatomical grip layout optimized to eliminate muscle fatigue and strain through long checkout shifts. Operating on a pure plug-and-play USB interface framework, it connects immediately to computers running Windows, Linux, or macOS architectures without requiring any tedious driver configuration disks or specialized setup utilities.
At the center of its technical architecture is a high-speed linear CCD sensor array combined with an advanced 32-bit core decoding processor. Unlike ancient laser-based modules that depend on delicate motorized spinning mirrors, the solid-state CCD system captures the barcode layout in a single image block, resulting in drastically longer hardware lifespans and better drop endurance.
The optical array uses a clear 620nm red LED illumination path to aggressively target and lock onto standard 1D logistics codes. A standout asset of the ZKB102S is its ability to seamlessly read digital screens. It effortlessly scans electronic barcodes, e-coupons, loyalty card accounts, and mobile passes directly from highly reflective smartphone LCD and OLED screens. Coupled with smart multi-barcode filtering logic and an IP-rated industrial chassis that shrugs off low-contrast, smudged, or wrinkled tags, this wired peripheral delivers consistent performance to modern businesses.
