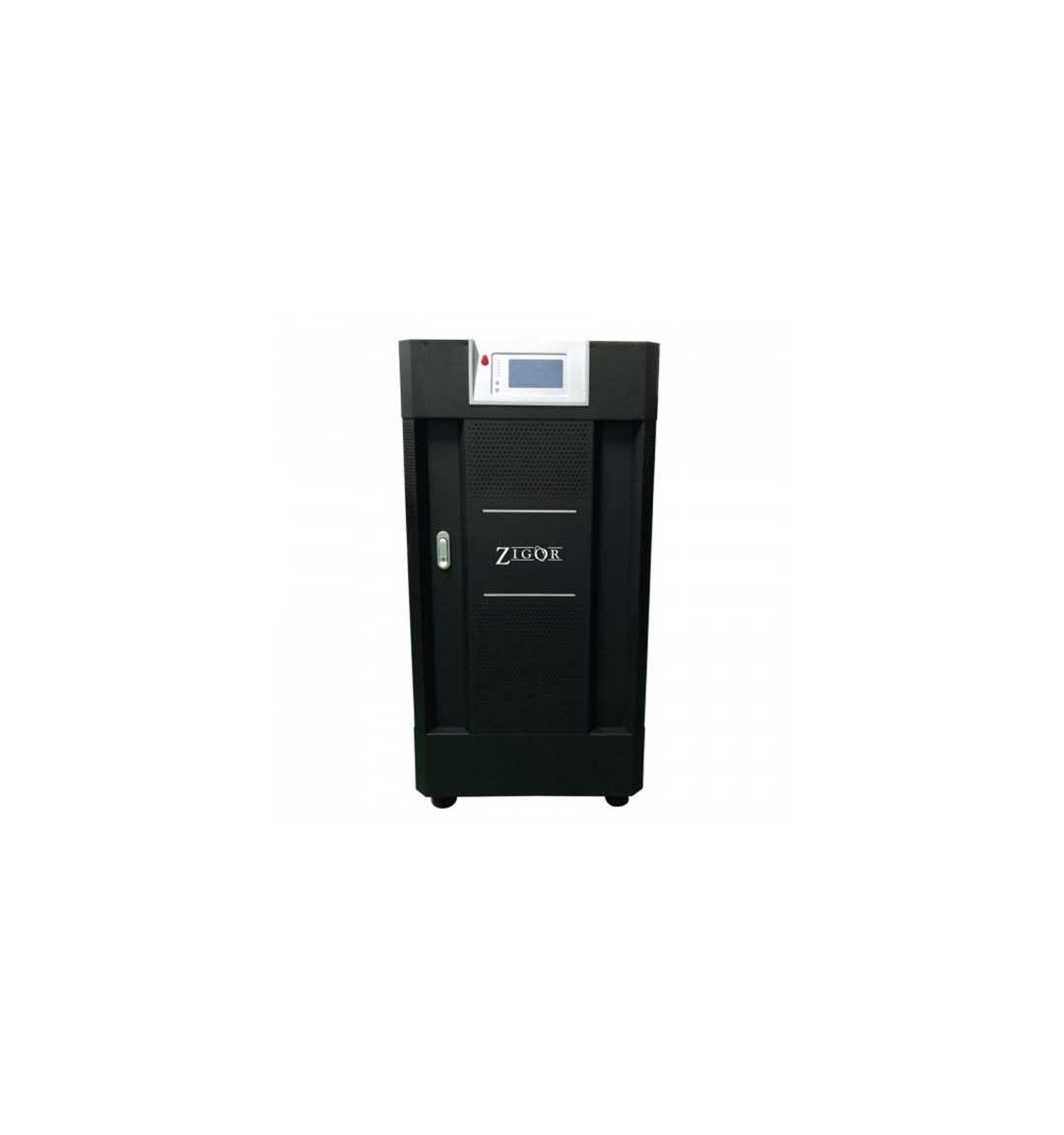

ZIGOR Ottawa Pro Online UPS
Please sign in so that we can notify you about a reply
Specification
| Main Feature | |
| Capacity | 10 to 200 KVA |
| Display Type | Touch screen LCD display (Operating load/Battery status and voltage/ Input and output voltage measurement / Input and output frequency measurement/Supplied power) |
| Load Capacity | Overload: 125% - 12 min / 150% - 1 min |
| Input Voltage | 304~456 Vac |
| Output Voltage | 380,400,415±1% Vac |
| Frequency (Battery Mode) | Input Frequency: 50 Hz ±12>#br###Output Frequency: 50Hz ±0.1% (battery mode) |
| Battery | Extended battery options available Standard battery: Pb VRLA (lead battery with anti-leak seal), 384 VDC, 480VDC(160/200KVA) Battery discharge protection |
| Alarm | 7 Alarms Type |
| Input Features | |
| Frequency | 50 Hz ±12% |
| Power Factor | Output power factor 0.9 |
| Voltage Range | 304~456 Vac |
| Output Features | |
| Backup Time | Up to many hours (depending on connected load) |
| Power Factor | Power: from 10 to 200 KVA Output power factor 0.9 Altitude without decreasing power: 1000 over sea level |
| Type of Wave | Pure sinewave |
| Rated power | THD <2% (linear load) / <5% Non linear load |
