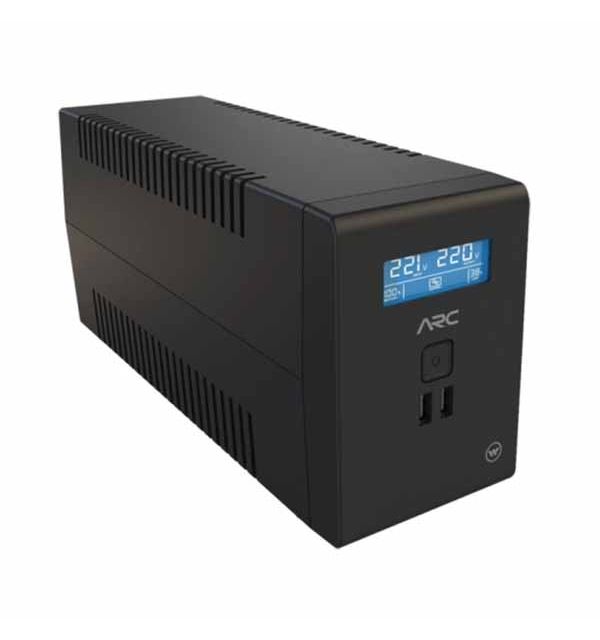

Walton UX01 800VA UPS
Save 5%
Please sign in so that we can notify you about a reply
Walton UX01 800VA UPS
SPECIFICATION
| MODEL | UX01 |
| CAPACITY | 800VA/480W |
| INPUT | |
| Voltage Range | 140-300Vac |
| Frequency | 50Hz or 60Hz (Auto-sensing) |
| OUTPUT | |
| Voltage Regulation | AC Mode / Battery Normal : 220/230/240Vac +/- 10>#/td### |
| Frequency | AC Mode : 47-53Hz for 50Hz |
| or 57-63Hz for 60Hz; Battery Mode : 50Hz or 60Hz +/- 1Hz | |
| Waveform | Simulated Sinewave |
| Transfer Time | < 6ms(Typical) |
| Outlet | Universal*2pcs For Backup & Surge Protection |
| BATTERY | |
| Voltage | 12VDC |
| Type | 12V/9AH*1pc |
| Recharge Time | 5 Hours to 90% After Complete Discharge |
| Safety Protection | Over Charge & Over Discharge Protection |
| Advanced Battery Management | Yes |
| DISPLAY | |
| LCD Display | Input Voltage, Output Voltage, Load |
| Level, Battery Level, AC Normal, | |
| Over Load, Battery Fail, Fault | |
| AUDIBLE ALARM | |
| Battery Mode | Two Short Tones Every 8 Seconds |
| Low Battery | Four Short Tones Every Second |
| Over Load | Buzzer : Beeping Continuously |
| Fault | Beeping Continuously |
| MANAGEMENT | |
| USB Charging Port | Yes, 5VDC (2.1A Max.) Ports*2 |
| Telecommunication Port Protection | Yes, (RJ-45 Ports*2, Lightning/Surge Protection) |
| ENVIRONMENT | |
| Operating Temperature | 0° C - 40° C (32°F-104°F) |
| Humidity | 0-95%, Non-Condensing |
| Acoustic Noise | <40 dB At 1M |
| PHYSICAL | |
| Dimension (D*W*H) | 315.5*100*141mm |
Nexus is offering you best Walton UPS at lowest price in Bangladesh
Brand:
Walton
