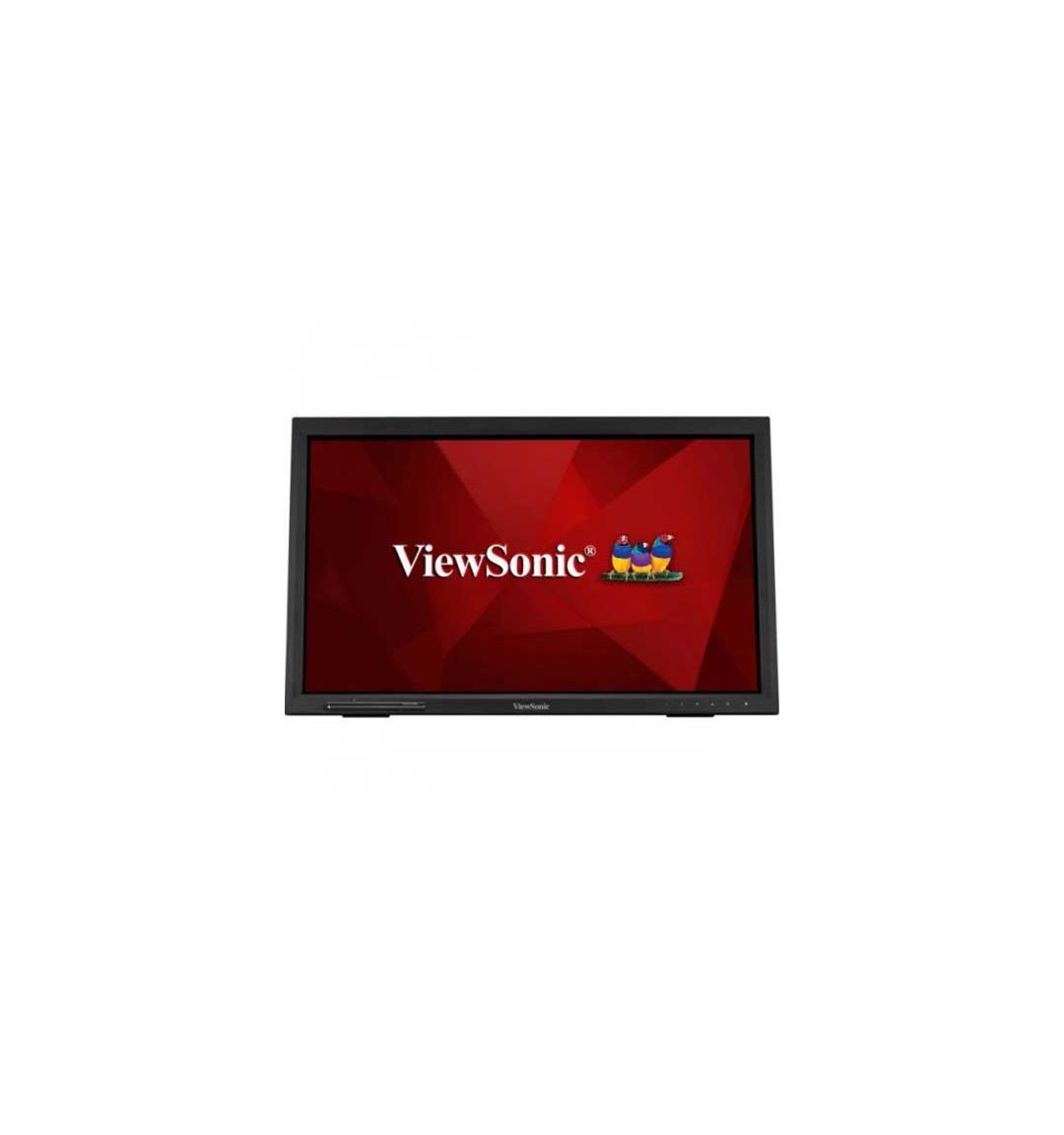

ViewSonic TD2223 22" IR Touch Monitor
Save 6%
Please sign in so that we can notify you about a reply
Specification
| Display Features | |
| Display Size | 22 Inch |
| Display Type | LED |
| Panel Type | TN |
| Resolution | FHD (1920 x 1080) |
| Pixel pitch(MM) | 0.248 mm (H) x 0.248 mm (V) |
| Display Surface | Glossy, Hard Coating (7H) |
| Aspect Ratio | 16:9 |
| Viewing Angle | 170º horizontal, 160º vertical |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 |
| Refresh Rate | 75Hz |
| Color Support | Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Color Gamut: NTSC: 72% size (Typ), sRGB: 103% size (Typ) |
| Color Gamut | 72% NTSC 103% sRGB |
| Response Time | (Typical GTG): 5ms (GTG w/OD): 5ms (Typical Tr+Tf): 5ms |
| Curvature | Flat |
| Others Features | Cover Glass Thickness: 2mm Viewable Area (in.): 21.5 Backlight Life (Hours): 30000 Hrs (Min) |
| Video Features | |
| Color Temperature Selection | 32°F to 104°F (0°C to 40°C) |
| Flicker Free | Yes |
| Low Blue Light | Yes |
| Others | Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4) Analog Sync: Separate/Composite/SOG - RGB Analog |
| Audio Features | |
| Speaker (Built In) | Yes |
| Speaker Details | 2Watts x2 |
| Connectivity | |
| DVI | DVI-D x 1 |
| VGA | VGA x 1 |
| HDMI | HDMI 1.4 x 1 |
| USB Port(s) | USB 2.0 Type A x 2 USB 2.0 Type B x 1 |
| Audio Jack | 3.5mm Audio In x 1 3.5mm Audio Out x 1 |
| Others | Power in: 3-pin Socket (IEC C14 / CEE22) |
| Mechanical Design | |
| Tilt | 20º / 40º |
| Security Locker | Kensington Lock Slot |
| Physical Specification | |
| Color | Black |
| Dimension | Packaging (in.): 22.8 x 15.9 x 6.5 Physical (in.): 20.5 x 13.1 x 4 Physical Without Stand (in.): 20.5 x 12.5 x 2.4 Packaging (mm): 580 x 405 x 164 Physical (mm): 521 x 334 x 101 Physical Without Stand (mm): 521 x 318 x 61 |
| Weight | Net (lbs): 9.9 Net Without Stand (lbs): 8.6 Gross (lbs): 13.2 Net (kg): 4.5 Net Without Stand (kg): 3.9 Gross (kg): 6 |
| Power | |
| Type | Internal |
| Power Consumption | Consumption (typical): 12.5W Consumption (max): 14W |
| Voltage | AC 100-240V, 50/60 Hz |
| Others | Eco Mode (Conserve): 8.5W Eco Mode (optimized): 10.5W Stand-by: 0.5W Power Supply: Internal Power Supply |
| Warranty Information | |
| Warranty | 2 Years Warranty |
