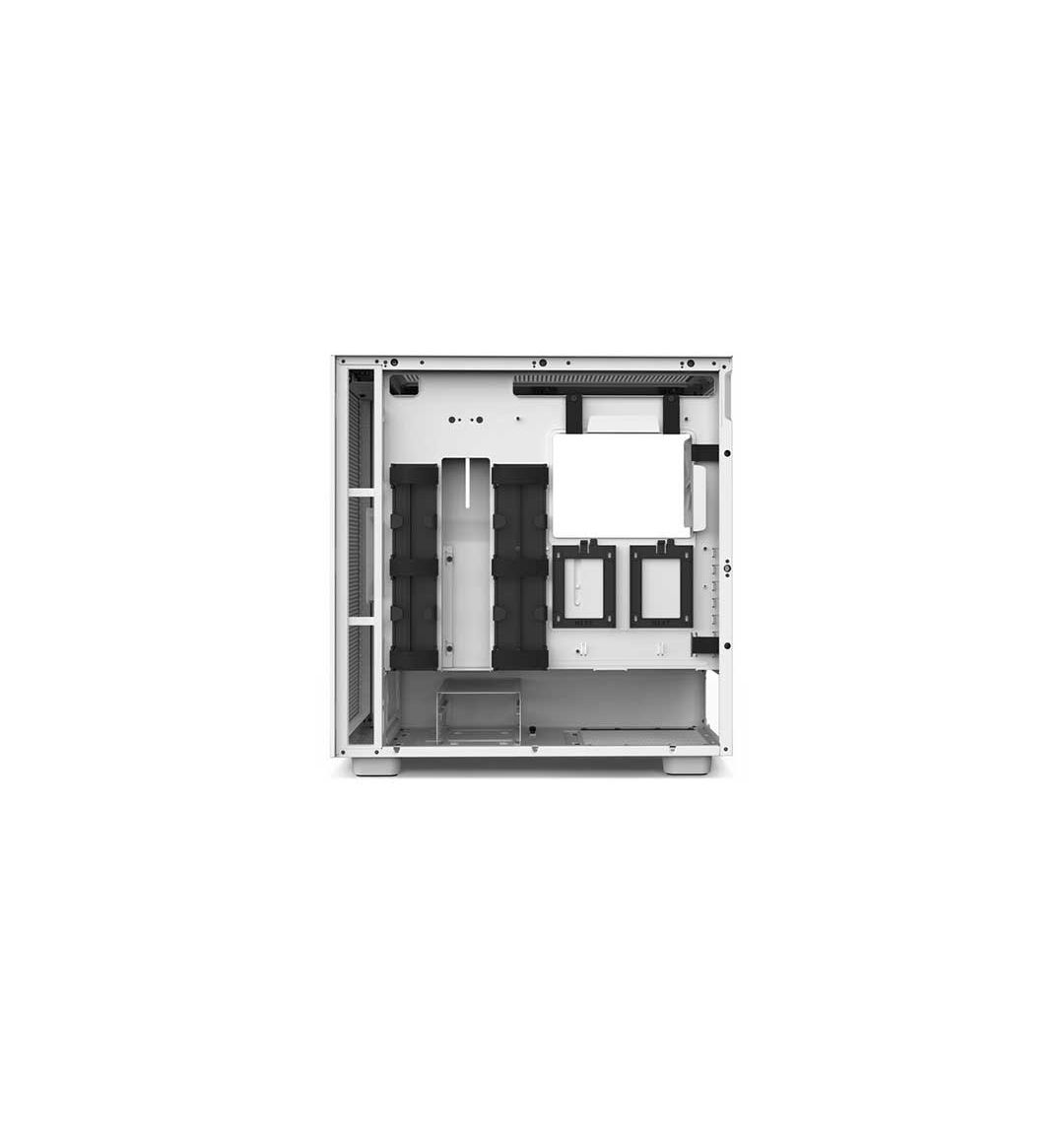

NZXT H7 Flow RGB ATX Mid-Tower Casing White (CM-H71FW-R1)
Please sign in so that we can notify you about a reply
Specification:
| General | Model: H7 Flow RGB Model Number: CM-H71FW-R1 Type: Mid-Tower Color: White |
| Key Specs | Motherboard Support: Mini-ITX, Micro-ATX, ATX Enclosure Type: Mid-Tower SGCC Steel, Ultra-clear Tempered Glass |
| Compatibility & Clearance | Max CPU Cooler Clearance: Up to 185mm Max GPU Clearance: Up to 400mm Front Radiator Clearance: 60mm Top Radiator Clearance: 30mm Cable Management: 18-22mm PSU Clearance: Up to 200mm |
| Expansion Slots | Standard: 7 Vertical: 0 |
| Drive Bays | 2.5": 4+2 3.5": 2 |
| Fan Support | Front: 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included) Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included) Filters: All Air Intakes |
| Fan Specs | Model: F140 RGB Core Fan (Case Version) Speed: 1200 ± 120 RPM Airflow: 61.74 CFM Static: 2.06mm-H2O Noise: 29.05 dBA Fan Connector: 3-pin Model: F120Q (Case Version) Speed: 1200 ± 240RPM Airflow: 62.18 CFM Static: 1.05 mm - H2O Noise: 25.1 dBA Fan Connector: 3-pin |
| Fans Included | Includes 3x pre-installed F140 RGB Core fans & 1x F120Q Quiet Airflow fan |
| Radiator Support | Front: Up to 360mm with Push/Pull Top: Up to 360mm Rear: Up to 140mm |
| Front I/O Ports | USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
| Inside the Box | H7 Flow Case with fans (see specs): 1 F140 RGB Core Fan (pre-installed): 3 F120Q Airflow Fan (pre-installed): 1 Installation Accessories: 1 Manual: 1 |
| Weight & Dimensions | Height (With Feet): 505mm Height (Without Feet): 480mm Width: 230mm Depth: 480mm Weight: 10.57kg |
NZXT H7 Flow RGB ATX Mid-Tower Casing White (CM-H71FW-R1) - Product Overview
The NZXT H7 Flow RGB ATX Mid-Tower Casing White (CM-H71FW-R1) delivers a sleek design and premium performance, making it an excellent choice for gamers and PC enthusiasts. Built with SGCC steel and ultra-clear tempered glass, this mid-tower case is optimized for efficient airflow, stylish aesthetics, and excellent hardware compatibility. It includes three pre-installed F Series RGB Core fans and one F120Q Quiet Airflow fan to keep your system cool and efficient while maintaining low noise levels. With its spacious interior and advanced cable management features, the H7 Flow RGB offers a hassle-free building experience for both experienced and first-time builders.
Key Features
- High-Performance Cooling: Includes 3x F140 RGB Core fans and 1x F120Q Quiet fan for optimal airflow and cooling performance.
- Extensive Compatibility: Supports Mini-ITX, Micro-ATX, and ATX motherboards, along with up to 185mm CPU coolers and 400mm GPUs.
- Tempered Glass Panel: Showcase your components with the ultra-clear tempered glass side panel.
- Radiator Support: Front and top support up to 360mm radiators for high-performance liquid cooling solutions.
- Enhanced Airflow: Filters at all air intakes ensure clean air circulation within the case.
- Spacious Design: Drive bays for up to 4+2 2.5" SSDs and 2 3.5" HDDs, along with excellent cable management (18-22mm).
- Convenient I/O Ports: Front panel includes 2 USB 3.2 Gen 1 Type-A, 1 USB 3.2 Gen 2 Type-C, and a headset audio jack.
Why Choose NZXT H7 Flow RGB Casing?
- Elegant White Design: The case features a premium white finish with an ultra-clear tempered glass side panel for showcasing RGB lighting and internal components.
- Exceptional Cooling: Pre-installed RGB fans and support for additional fans/radiators make this case ideal for high-performance gaming setups.
- Versatile Build Options: Its spacious design accommodates various components, including high-end GPUs, CPU coolers, and power supplies.
- Future-Ready Connectivity: With USB 3.2 Gen 2 Type-C and multiple USB Type-A ports, the case supports modern devices and accessories.
- Effortless Maintenance: Dust filters at all intakes ensure minimal cleaning and better component longevity.
Frequently Asked Questions (FAQs)
Q1: What is the maximum GPU size supported? A: The NZXT H7 Flow RGB supports GPUs up to 400mm in length.
Q2: Can this case handle liquid cooling setups? A: Yes, it supports radiators up to 360mm on the front and top, as well as up to 140mm on the rear.
Q3: Are the pre-installed fans RGB-enabled? A: Yes, the three F140 RGB Core fans provide vibrant RGB lighting, and one F120Q Quiet fan ensures optimal airflow.
Q4: How many storage drives can this case accommodate? A: It supports up to 4+2 2.5" drives and 2 3.5" drives for versatile storage options.
Q5: Does the tempered glass panel have any tint? A: Yes, the tempered glass panel features a light white tint to complement the case's elegant design.
Q6: Is this case suitable for beginners? A: Absolutely! The H7 Flow RGB offers excellent cable management, pre-installed fans, and clear instructions for an easy building experience.
Q7: Does it include a power supply unit (PSU)? A: No, the PSU is not included and must be purchased separately.
Q8: What materials are used for the construction? A: The case is made of SGCC steel and features a tempered glass panel for durability and aesthetics.
