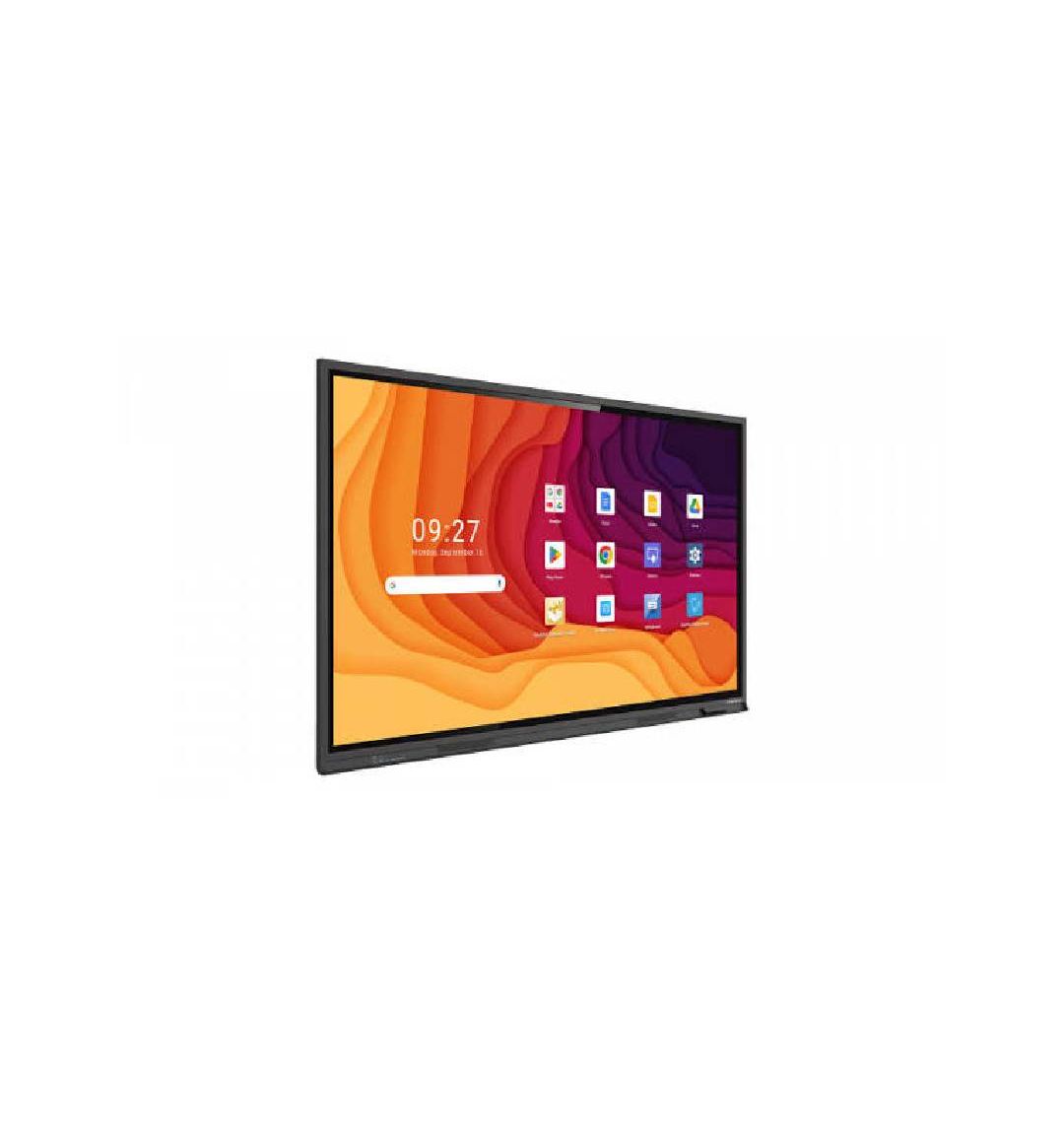

Newline TT-7523QCA+ 75" 4K UHD Interactive Flat Panel Display
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | Newline TT-7523QCA+ 75.0" 4K UHD Android 13 Google EDLA Interactive Flat Panel Display |
| Model & Part Number | TT-7523QCA+ (Elara Pro Series) |
| Brand / Manufacturer | Newline Interactive |
| Product Category | Enterprise Collaboration, Conference Room & Smart Education Interactive Flat Panel |
| Diagonal Screen Size | 75.0 Inches (190.5 cm) |
| Panel Technology | Commercial-Grade Direct LED (D-LED) Backlit VA Panel |
| Active Display Area | 1650 mm (H) × 928 mm (V) |
| Native Display Resolution | 4K UHD (3840 × 2160 Pixels) |
| Aspect Ratio | 16:9 Widescreen Standard |
| Display Brightness | 450 Nits (cd/m²) Typical |
| Contrast Ratio | 5000:1 Static Contrast Ratio |
| Display Color Depth | 1.07 Billion Colors (10-Bit: 8-Bit + FRC) |
| Refresh Rate & Response Time | 60 Hz Refresh Rate; 5 ms Response Time |
| Viewing Angles | 178° Horizontal / 178° Vertical Ultra-Wide Viewing Angles |
| Touch Technology | Stellar High-Precision Infrared (IR) Touch with Zero Optical Bonding |
| Touch Points | Up to 50 Simultaneous Touch Points on Windows; Up to 20 Points on Android/Linux |
| Writing Tools & Input | Dual-Tip Passive Stylus Pens, Finger, Palm Rejection & Object Recognition |
| Touch Accuracy & Height | ±1.0 mm Accuracy; Writing Height < 1.5 mm; Response Time < 10 ms |
| Protective Surface Glass | Anti-Glare, Anti-Fingerprint & Antimicrobial Tempered Glass (7H/9H Hardness) |
| Operating System | Android 13 with Official Google EDLA (Enterprise Device Licensing Agreement) Certification |
| Google Mobile Services (GMS) | Full Native Access to Google Play Store, Google Workspace, Google Drive, Docs & Sheets |
| SoC Processor | Rockchip RK3588 Octa-Core High-Performance Processor |
| Graphics Processing Unit (GPU) | ARM Mali-G610 MC4 High-Efficiency Quad-Core GPU |
| Installed System RAM | 16 GB High-Speed DDR4 Memory |
| Internal Onboard Storage | 320 GB High-Speed Flash Storage (Expandable via MicroSD / External USB) |
| Integrated Camera Module | Built-in 4K AI Camera (3840 × 2160 @ 30 fps), 120° Wide Field of View (FOV) |
| Camera AI Functions | AI Auto-Framing (Face Tracking), ePTZ Digital Pan-Tilt-Zoom & Speaker Tracking |
| Integrated Microphone Array | Built-in 8-Microphone Beamforming Array (Upper Front) with Voice Noise Reduction |
| Audio Processing Technology | Acoustic Echo Cancellation (AEC), Automatic Noise Reduction (ANR) & Auto Gain Control (AGC) |
| Built-in Speaker System | 2.1-Channel Sound System: 2 × 20W Front-Facing Stereo Speakers + 15W–20W Subwoofer |
| Near Field Communication (NFC) | Integrated NFC Sensor on Front Bezel for Instant Multi-User Profile Log-in & Authentication |
| Wireless Connectivity | Wi-Fi 6 (802.11ax Dual-Band 2.4GHz + 5GHz) & Bluetooth 5.2 Module |
| Wired Network (LAN) | 2 × RJ-45 Gigabit Ethernet Ports (1 × LAN In + 1 × LAN Out for Passthrough) |
| Front I/O Interface | 1 × USB-C (100W Power Delivery, 4K Display, USB Data, Touch), 1 × HDMI 2.1 In, 1 × USB 3.2 Type-B Touch-Out, 2 × USB 3.2 Type-A, 1 × Mic-In |
| Rear I/O Interface | 2 × HDMI 2.1 In, 1 × DisplayPort 1.2 In, 1 × VGA In + 3.5mm Audio In, 1 × HDMI Out, 1 × USB-C (15W), 1 × USB-C Out, 3 × USB-B Touch, 2 × USB-A, 1 × Optical SPDIF Out, 1 × 3.5mm Audio Out |
| Modular Expansion Slots | 1 × Standard Intel OPS Slot (Supports Windows OPS PC Module) + 1 × SDM-S Slot |
| Control Interfaces | 1 × RS-232 Serial Port, Front Physical Control Buttons |
| Casting & Collaboration | Native Wireless Screen Sharing (Supports Miracast, AirPlay, Google Cast, and Newline Cast) |
| Power Supply & Rating | AC 100 – 240V, 50 / 60 Hz Universal Input; Typical Consumption: ~150W; Standby: < 0.5W |
| VESA Mount Standard | 800 mm × 400 mm Heavy-Duty VESA Wall-Mount Pattern |
| Dimensions (W × H × D) | 1735 mm × 1051 mm × 119 mm |
| Net Weight | Approx. 52.0 kg |
| Package Contents | 1 × Newline TT-7523QCA+ 75" Interactive Display Panel 2 × Dual-Tip Passive Stylus Pens 1 × Multi-Function Remote Control 1 × USB Type-C Cable 1 × HDMI Cable 1 × USB Touch Cable 1 × AC Power Cable 1 × Wall Mount Bracket Kit 1 × Quick Setup Guide |
| Warranty Policy | 3 Years Comprehensive Manufacturer Brand Warranty |
Product Description
Operating natively on Android 13 with official Google EDLA (Enterprise Device Licensing Agreement) certification, the display delivers secure, out-of-the-box access to the Google Workspace ecosystem, including Google Drive, Docs, Sheets, and the Google Play Store. A built-in NFC sensor on the front frame allows multiple instructors or executives to swipe an NFC card to instantly load their personal cloud accounts, profiles, desktop backgrounds, and security credentials, streamlining transitions between meetings.
Visual precision is delivered through an expansive 75-inch Direct-LED backlit VA panel boasting a native 4K UHD resolution of 3840 × 2160 pixels, 450 nits of brightness, and a 5000:1 static contrast ratio. Constructed with zero optical bonding technology and anti-glare, anti-fingerprint, antimicrobial tempered glass, the surface eliminates parallax visual gaps, providing natural, paper-like writing accuracy. The Stellar IR touch engine supports up to 50 simultaneous touch points on Windows and 20 points on Android with palm rejection and automatic tool recognition. Hardware computing is driven by the Rockchip RK3588 octa-core processor paired with 16GB of DDR4 RAM and 320GB of internal storage, providing fluid whiteboard responsiveness, seamless 4K video playback, and rapid application multitasking.
Unified communications and video conferencing are fully integrated into the chassis hardware. An onboard 4K AI camera features a 120-degree field of view, face tracking, auto-framing, and ePTZ digital zoom to keep participants centered during Google Meet, Microsoft Teams, or Zoom conferences. Acoustic pickup is driven by an upper front 8-microphone beamforming array with an 8-meter pickup range, enhanced by acoustic echo cancellation and noise suppression algorithms. High-fidelity room-filling audio is output through an integrated 2.1-channel sound system featuring dual 20W front stereo speakers and an integrated 15W–20W subwoofer.
Connectivity is comprehensive, featuring a front-facing full-function USB Type-C port that provides 4K video, audio, touch control, and up to 100W of USB Power Delivery over a single cable to recharge connected laptops. Accompanied by heavy-duty 800 × 400 mm VESA wall-mounting hardware and backed by a comprehensive 3-year warranty, the Newline TT-7523QCA+ provides an advanced, secure, and all-in-one interactive platform for modern digital workspaces.
