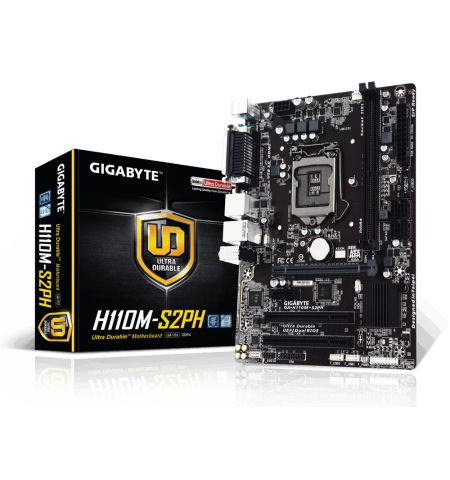

GIGABYTE H110M-S2PH MOTHER BOARD

Ask a question
H110M-S2PH
Tk. 5,400
In stock
+
Delivery
Payment options
Our advantages
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

  • CPU
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H110 Express Chipset
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2400/2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    1. Integrated Graphics Processor - Intel® HD Graphics support:
      1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    2. Maximum shared memory of 1024 MB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slots conform to PCI Express 3.0 standard.)
    2. 1 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
    3. 2 x PCI slots
  • Storage Interface
    Chipset:
    1. 4 x SATA 6Gb/s connectors
  • USB
    Chipset:
    1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 1 x USB 3.0/2.0 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x serial port header
    12. 1 x Trusted Platform Module (TPM) header
    13. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 Keyboard port
    3. 1 x D-Sub port
    4. 1 x parallel port
    5. 1 x serial port
    6. 1 x HDMI port
    7. 2 x USB 3.0/2.0 ports
    8. 2 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for Smart Switch
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 18.0cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website
  • Brand:
    Gigabyte
