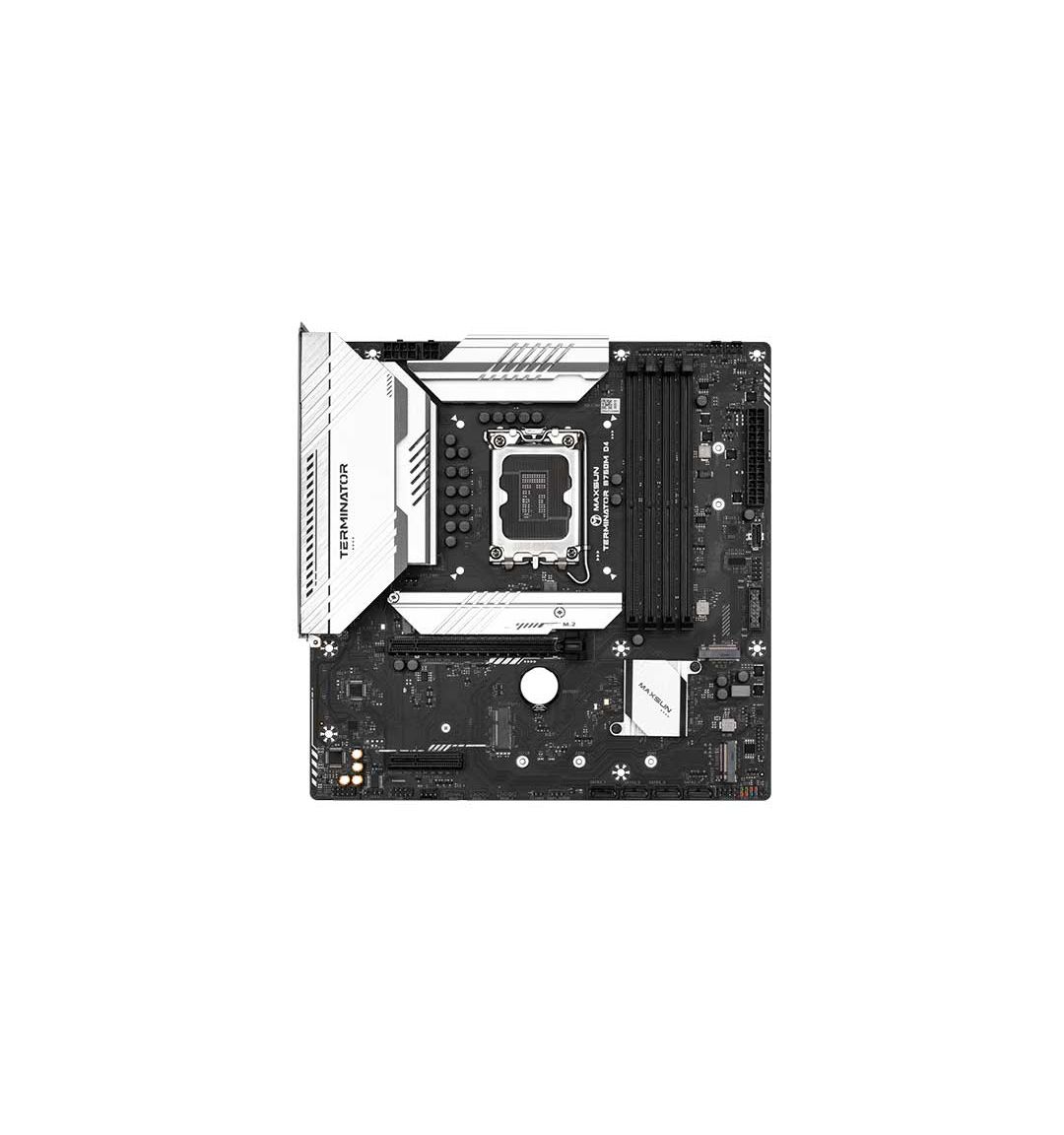

Maxsun Terminator B760M D4 WIFI Intel 13th, and 12th DDR4 Micro ATX Motherboard.
Please sign in so that we can notify you about a reply
Specification
| Brand | Maxsun |
| Model | Terminator B760M D4 WIFI |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Generation | 13th, and 12th |
| Form Factor | Micro ATX Form Factor; 245mm x 245mm |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700 |
| Memory Type | DDR4 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel XMP 2.0 OC Supports Dual-Controller Dual-Channel mode |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI port HDMI port supports up to 4K@30Hz |
| Expansion Slot | 1x PCIe 5.0 x16 slot
1x PCIe 3.0 x4 slot |
| Supported Storage | M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Audio | Realtek ALC897 Codec
5.1-Channel High Definition Audio |
| USB Port | Front USB (Total 5 ports)
1 x USB 3.2 Gen2 x 2 Type C 2 x USB 3.2 Gen1 Type A 2 x USB 2.0 Rear USB (Total 8 ports) 2 x USB 3.2 Gen1 Type A 6 x USB 2.0 |
| Internal I/O Ports | 1 x 24-pin Power Connector(ATX_PWR)
1 x 8+4-pin Power Connector(CPU_PWR) 1 x CPU Fan 3 x System Fan 3 x M.2 slots (Key-M) 4 x SATA 6Gb/s ports 2 x 5V 3-Pin ARGB 1 x 12V 4-Pin RGB 1 x Clear CMOS 1 x 4-Pin SPEAKER 1 x Front Audio 1 x M.2 slots (Key-E) 1 x COM_A Port 1 x TPM pin header(Support TPM 2.0) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| Warranty | 03 years warranty |
Maxsun Terminator B760M D4 WIFI DDR4 Motherboard
Nexus will be your first choice If you want to buy Maxsun Terminator B760M D4 WIFI DDR4 Motherboard in Bangladesh, Because we sale only Maxsun authorized original Motherboard. So you are at the right place to buy right Maxsun Motherboard at the lowest price in Bangladesh.
Nexus Offers you Maxsun Terminator B760M D4 WIFI DDR4 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Maxsun Terminator B760M D4 WIFI DDR4 Motherboard? and where you can get Maxsun Motherboard at lowest price in BD? Yes, it is Nexus. Maxsun Terminator B760M D4 WIFI DDR4 Motherboard now available at Nexus, So Don’t Think more to buy Maxsun Terminator B760M D4 WIFI DDR4 Motherboard.
What is the price of Maxsun Terminator B760M D4 WIFI Intel 13th, and 12th DDR4 Micro ATX Motherboard In Bangladesh?
The latest price of Maxsun Terminator B760M D4 WIFI DDR4 Motherboard in Bangladesh is 16800. Prices may vary due to your customization and product availability. You can buy Maxsun Terminator B760M D4 WIFI DDR4 Motherboard from our website or visit our showroom.
