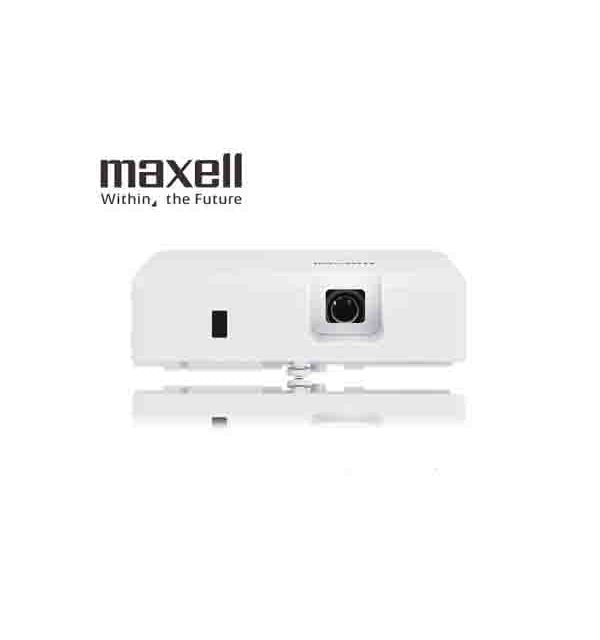

Maxell EX3551 3700 ANSI Lumens Multimedia Projector

TECHNICAL SPECIFICATION

Liquid Crystal Panel Structure- 3 LCD 16mm (0.59”), Power Output (Brightness)- 3700 ANSI Lumens, Resolution- XGA (1024 x 768), E3551:WXGA(1280 x 800), Contrast Ratio- 20000:1, Aspect Ratio: Native 4:3 & 16.10, Compatible, Throw Ratio (distance: Width)- 1.5-1.8:1, Focus Distance- 35”-457, Display Size- 30” -300”

LENS & OPERATION

Lens - f= 19 - 23mm, 1.2 manual zoom & Focus, Lamp Wattage- 230W, Expected Lam Life (Hours)- Standard Mode: 6000 hours, Eco Mode: 12500 hours, Speaker Output- 16W x 1, Acoustic Noise Level- Normal: 37dB, Eco Mode- 29dB, Keystone- H & V:±30º

CONNECTORS

Digital Input- HDMI x 2, Analogue Input- 15-Pin mini D-sub x 2, Video Input- N/A RCA Jack x 1, Video Output- 15-pin mini D-sub x 1 (Shared with Computer Input), RS-232C Control- 1 x 9-Pin D-sub, Audio Input-3.5mm stereo mini jack x 2, RCA Jack (L/R) x 1, Audio output- 3.5mm stereo Mini Jack x 1, Network LAN Wired- NRJ45 Connector x 1, Network LAN Wireless- USB-A, IEEE802.11 a/b/g/n/ac-Optinal, USB- Type A x 1( PC-less Presentation, wireless adapter) Type B x 1 ( USB display or Mouse Control)

COMPATIBILITY

Computer- VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA (compressed), MAC 16”, Composite Video- NSTC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, Component Video- 480i, 480p, 567i, 720p, 1080i, 1080p

PHYSICAL & OTHERS

Power Supply- AC110-120V, AC220-240, 50Hz, Power Consumption- 310W, Standby Power Consumption- Less Than 0.35W, Dimensions(W x D x H)- 349 x 264 x 88mm, Weight- Approximately 3.5kg, Installation- Ceiling, Tabletop, Rear, Accessories Included- Remote Control ( with Batteries), Power Cable, VGA Cable, Lens Cap, Cable Tie, Cable Holder, Screw, CD & Operating Guide
